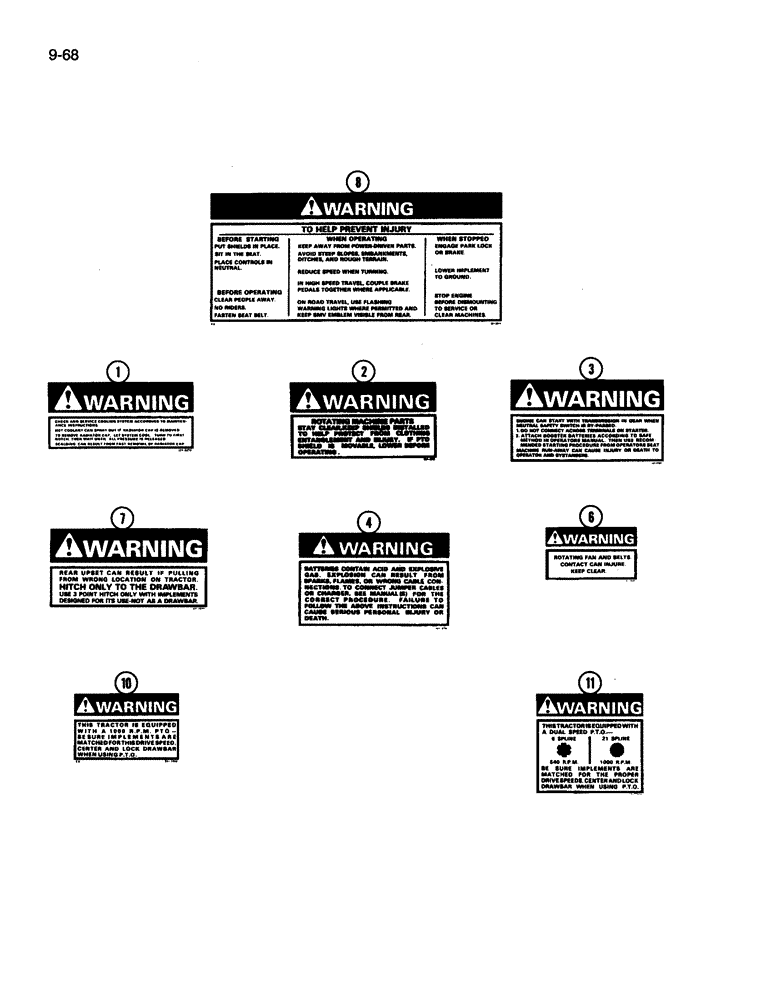

Запчасти Case IH 3394 (9-068) - DECALS, SAFETY (09) - CHASSIS/ATTACHMENTS

A67551

DECAL

KIT - decal, safety (Order components), Includes: Ref. 1 - 11

1шт.

1

321-6672

DECAL

- warning, check and service cooling system

1шт.

2

321-6715

DECAL

- warning, PTO

1шт.

3

321-3709

DECAL

- warning, starting

1шт.

4

321-6714

DECAL

- warning, batteries contain acid and explosive gas

2шт.

6

321-3596

DECAL

- warning, rotating fan and belts

2шт.

7

321-3845

DECAL

- drawbar and hitch

1шт.

8

321-6641

DECAL

- operating instructions

1шт.

10

321-3900

DECAL

- 1000 rpm PTO

1шт.

11

321-3901

DECAL

- dual speed PTO (Not used this application)

1шт.

A46520

DECAL

KIT - decals, French language, Includes: Ref. 1 - 11 below

1шт.

Kit also includes items listed on Figure 9-066.

1шт.

1

321-6701

DECAL

- Warning, cooling system

1шт.

2

321-6647

DECAL

- warning, rotating PTO

1шт.

3

321-5581

DECAL

- Warning, starting precautions

1шт.

4

321-6719

DECAL

- Warning, battery cables and acid

1шт.

6

321-5604

DECAL

- warning, fan belt

2шт.

7

321-5580

DECAL

- warning, hitch instructions

1шт.

8

321-6660

DECAL

- operating instructions

1шт.

10

321-5621

DECAL

- warning, 1000 rpm PTO

1шт.

11

321-5585

DECAL

- warning, dual speed PTO (Not used this application)

1шт.

321-5791

DECAL

- warning, hitch pin/PTO

1шт.

321-5583

DECAL

- warning, operating instructions (Not used this application)

1шт.

321-5619

DECAL

- warning, operating instructions (Not used this application)

1шт.

321-5790

DECAL

- warning, implement lift

1шт.
