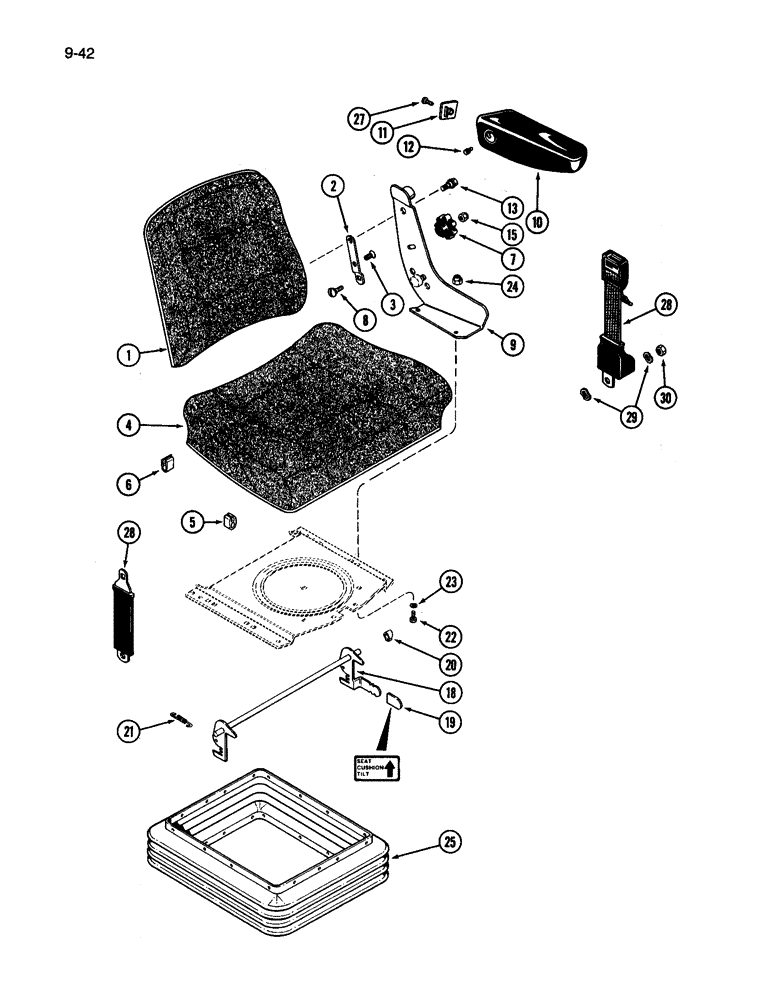

Запчасти Case IH 3394 (9-042) - CLOTH SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

A181028

SEAT

ASSEMBLY - air/oil suspension (Order seat 1340261C21 and channel 1975275C1)(See Figure 9-54), Includes: Ref. 1 - 30

1шт.

1330898C1

CUSHION

KIT - seat cushion, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

2

A48343

LINK

- tilt, backrest

2шт.

3

473-13816

SCREW,FLAT, 3/8" - 16 x 1"

- machine, flat head slotted, 3/8 NC x 1 inch

2шт.

4

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

5

N9034

SEAT

CLIP - retaining, seat cushion

2шт.

6

N6674

CLIP

- retaining, seat cushion

2шт.

7

A45487

BUTTON

KNOB - tilt, backrest

2шт.

8

A45527

CARRIAGE BOLT

- retaining, link

2шт.

9

A49517

BRACKET

- armrest, right

1шт.

9

A49516

BRACKET

- armrest, left (Shown)

1шт.

10

A49515

ARMREST

- seat, right

1шт.

10

A49514

ARMREST

- seat, left (Shown)

1шт.

11

A45584

COVER

PLATE - cover, right armrest

1шт.

11

A45583

PLATE

- cover, left armrest (Shown)

1шт.

12

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest stop Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

13

A48346

BOLT

- hex, special

2шт.

13

A47781

BOLT,Hex Flg, 1/2" - 13 x 1.25", Gr 5

BOLT - special

2шт.

15

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

18

A49518

LEVER

TILT ASSEMBLY - seat

1шт.

19

A47347

CAP

- tilt lever

1шт.

20

A49519

SPACER

- lever

2шт.

21

A45471

- tension, tilt lever

2шт.

22

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

23

A47352

WASHER

- wave, 1-1/8 inch ID

4шт.

24

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

25

A49618

BOOT

- rubber

1шт.

27

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, pan head slotted, No. 10-16 x 5/8 inch

2шт.

28

A46982

SAFETY BELT

SAFETY BELT

1шт.

29

A46987

WASHER

- wave

4шт.

30

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.
