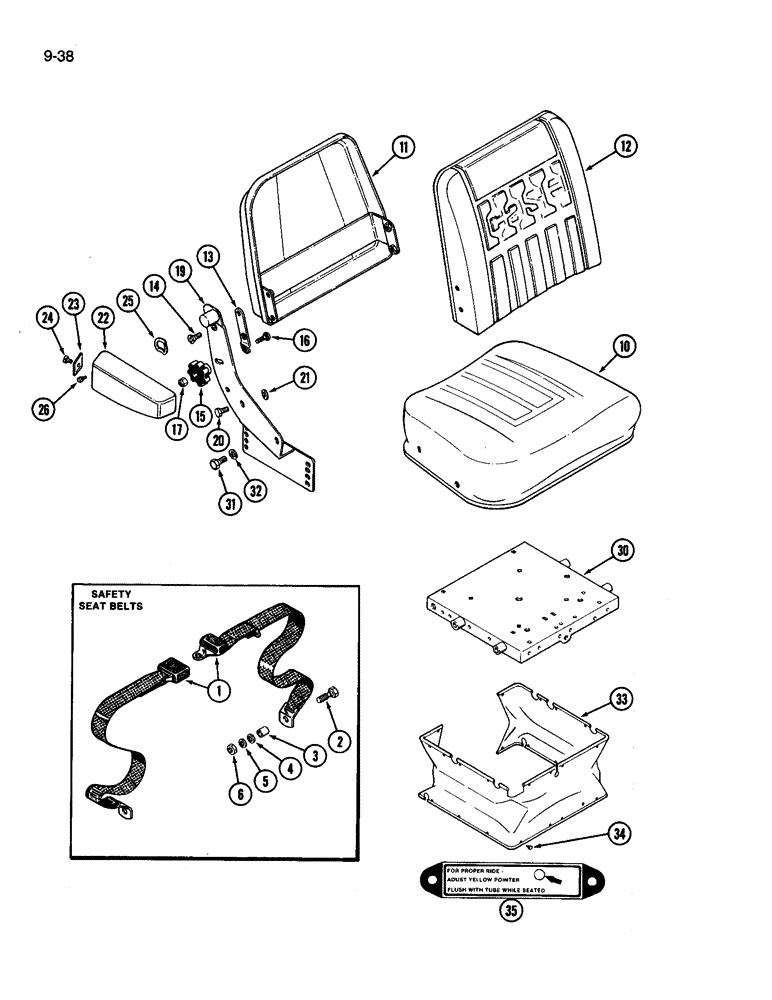

Запчасти Case IH 3394 (9-038) - SEAT BELT, VINYL SEAT (09) - CHASSIS/ATTACHMENTS

1

A160404

SAFETY BELT

BELT - seat safety, vinyl seat

1шт.

2

A61946

STEP BOLT

BOLT - shoulder, seat belt

2шт.

3

A60907

BUSHING

SPACER - seat belt anchor

2шт.

4

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

2шт.

5

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

6

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

A177457

SEAT

AND SUSPENSION ASSEMBLY - vinyl (Without swivel), Includes: Ref. 10 - 35

1шт.

1987124C1

CUSHION, SEAT

CUSHION KIT - seat, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - seat

1шт.

11

NSS

NOT SOLD SEPARAT

PAN - backrest

1шт.

12

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - backrest

1шт.

13

A48343

LINK

- tilt, backrest

2шт.

14

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

SCREW - self-tapping, flat Phillips, 3/8 NC x 1 inch

2шт.

15

A45487

BUTTON

KNOB - tilt, backrest

2шт.

16

A45527

CARRIAGE BOLT

- retaining, link

2шт.

17

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

19

A49656

SUPPORT

BRACKET - right side (Shown)

1шт.

19

NLS

NO LONGER SERVICED

BRACKET - left side

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

21

A45116

WASHER

SPACER - cushion

4шт.

1987125C1

ARMREST ASSY.

ARMREST KIT - seat, Includes: Ref. 22 - 26

1шт.

22

A45489

ARMREST

- seat, right (Shown)

1шт.

22

A45488

ARMREST

- seat, left

1шт.

23

A45584

COVER

PLATE - cover, right armrest (Shown)

1шт.

23

A45583

PLATE

- cover, left armrest

1шт.

24

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, pan head slotted, No. 10-16 x 5/8 inch

2шт.

25

A47352

WASHER

- wave, 1-1/8 inch ID

2шт.

26

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest stop Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

30

A46726

HOUSING

PLATE - upper housing

1шт.

31

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, plated

4шт.

32

193-92

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal lock, 5/16 inch

4шт.

33

A45576

BOOT

COVER - suspension

1шт.

34

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

- plastic round head, 1/4 hole size x 7/8 inch head dia

24шт.

35

A47778

DECAL

- instruction

1шт.
