Запчасти Case IH 3394 (9-034) - INSTRUMENT PANEL SHROUD (09) - CHASSIS/ATTACHMENTS

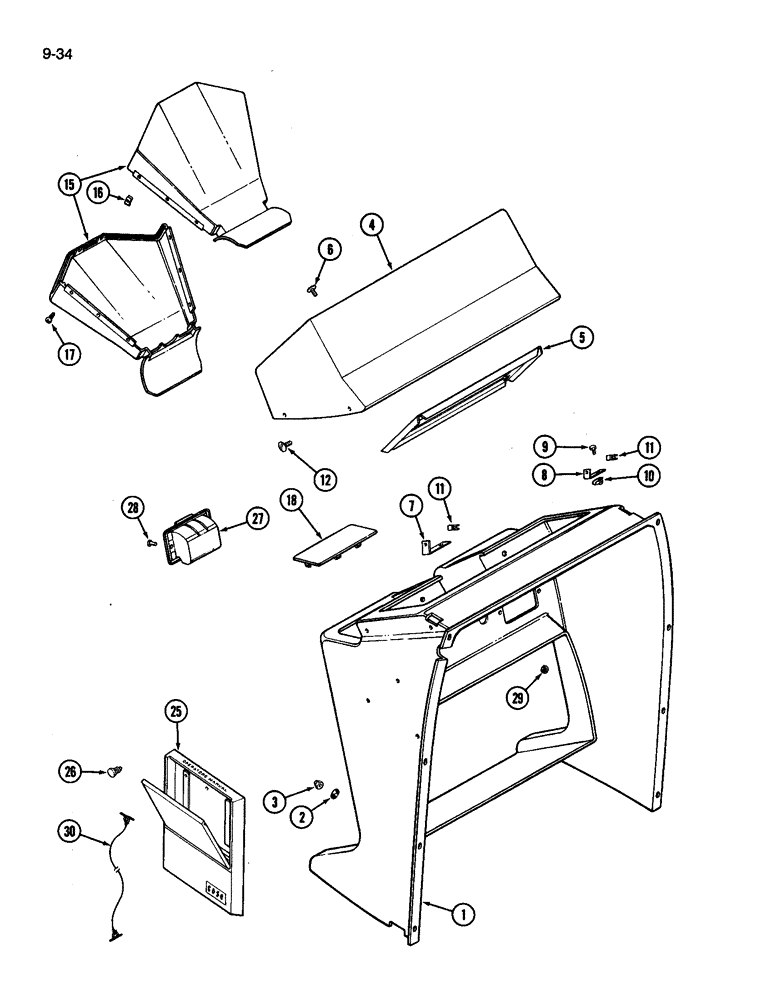

Схема запчастей Case IH 3394 - (9-034) - INSTRUMENT PANEL SHROUD (09) - CHASSIS/ATTACHMENTS
18
5
10
28
4
29
12
17
27
2
3
11
15
6
8
7
9
16
30
25
26
11
1

Артикул

Название

Примечание

Количество

1

A169013

GUARD

SHROUD - lower, instrument panel

1шт.

2

A160525

WASHER

- nylon

8шт.

3

129-886

CROWN NUT,Crown, 1/4"-20

- dome, 1/4 inch NC

8шт.

4

A169014

GUARD

SHROUD - upper, instrument panel

1шт.

5

A161073

SUPPORT

- instrument cluster

1шт.

6

260-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1/2 inch

2шт.

7

A139109

BRACKET

- lower, shroud support

2шт.

8

A139110

BRACKET

- upper, shroud support

2шт.

9

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

10

131-627

NUT,Tinn, U, 1/4"-20

- U-type, 1/4 inch NC

4шт.

11

131-644

NUT,Tinn, #14

- J-type, No. 14, no threads

6шт.

12

263-16716

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1"

SCREW - self-tapping, pan head slotted, 1/4-14 x 1 inch

6шт.

15

A169015

GUARD

SHROUD - steering column

2шт.

16

131-606

SPRING NUT,Tinn, U, #10

- U-type, No. 10, no threads

10шт.

17

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/4 "

10шт.

18

A169002

COVER

- fuse panel

1шт.

25

A177376

BOX

- operators manual

1шт.

26

A162364

FASTENER

- manual box

3шт.

27

A165449

ASH TRAY

TRAY - ash

1шт.

28

151-548

RIVET,Pop, 1/8" x .462"

- pop, 1/8 x 27/64 inch

2шт.

29

495-31016

WASHER,#6

2шт.

30

A141917

ROPE

CORD -, Serial Range: manual-box

1шт.

Выбрано товаров: 22
