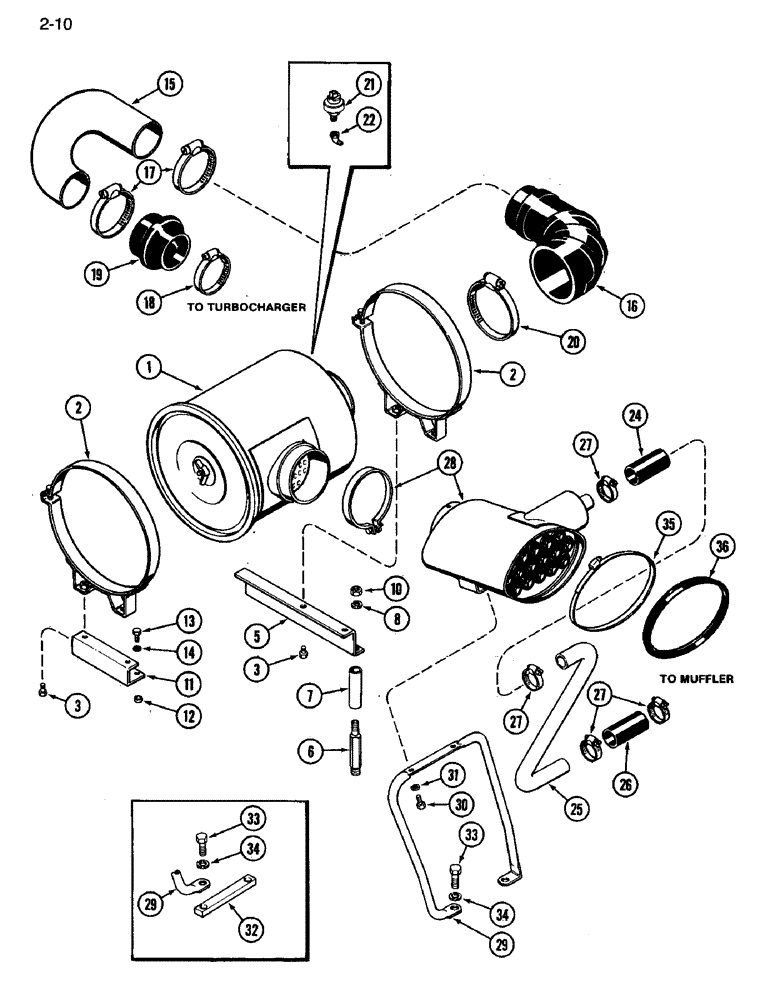

Запчасти Case IH 3394 (2-10) - AIR INDUCTION SYSTEM (02) - ENGINE

1

REF

INSTRUCTION

CLEANER ASSEMBLY - air (See Figure 2-12)

1шт.

2

A138724

CLAMP

- cleaner mounting

2шт.

3

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

5

A147015

BRACKET

- cleaner support

1шт.

6

A64577

JACK SCREW,3/8" - 18 x 5.32"

- jack, cleaner bracket

2шт.

7

A147026

BUSHING

SPACER -, Serial Range: bracket-screw

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

A160650

BRACKET

- cleaner support

1шт.

12

A147031

BUSHING

SPACER -, Serial Range: cleaner-bracket

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

A160799

TUBE

- turbocharger inlet

1шт.

16

A147017

ELBOW,88.9mm ID x 362.204mm L

3.00" ID, 3.50" ID x 9.02" - Elbow, Cleaner outlet

1шт.

17

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

2шт.

18

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - adj, 2-13/16 - 3-3/4 inch dia

1шт.

19

A147016

INTAKE AIR HOSE,88.90 mm ID x 88.90 mm, SAE J200

HOSE 3.00" ID, 3.50" ID x 3.50", SAE J200 - Reducer, Turbocharger inlet

1шт.

20

214-1488

HOSE CLAMP,130.05mm - 152.4mm

CLAMP, HOSE, , Adj. #88, 5.12/6.00 Type F Worm

1шт.

21

3224405R91

RESTRICTION SWITCH

SWITCH - air restriction indicator (Replces A154782)

1шт.

22

221-1401

ELBOW,45º, 1/8"-27, NPT

- street, 45 degree, 1/8 inch PT

1шт.

24

A161681

HOSE,31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

- Aspirator, Black 31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

1шт.

25

A166445

TUBE

- aspirator

1шт.

26

A161681

HOSE,31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

- Aspirator, Blue 31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

1шт.

27

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

4шт.

28

A147025

CLEANER

PRECLEANER ASSEMBLY - air

1шт.

29

A147018

SUPPORT

- precleaner

1шт.

30

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

33

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

35

214-14136

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

CLAMP - adj, 8-1/8 - 9 inch dia (Replaces A160244)

1шт.

36

A160189

SEAL

- precleaner, front

1шт.
