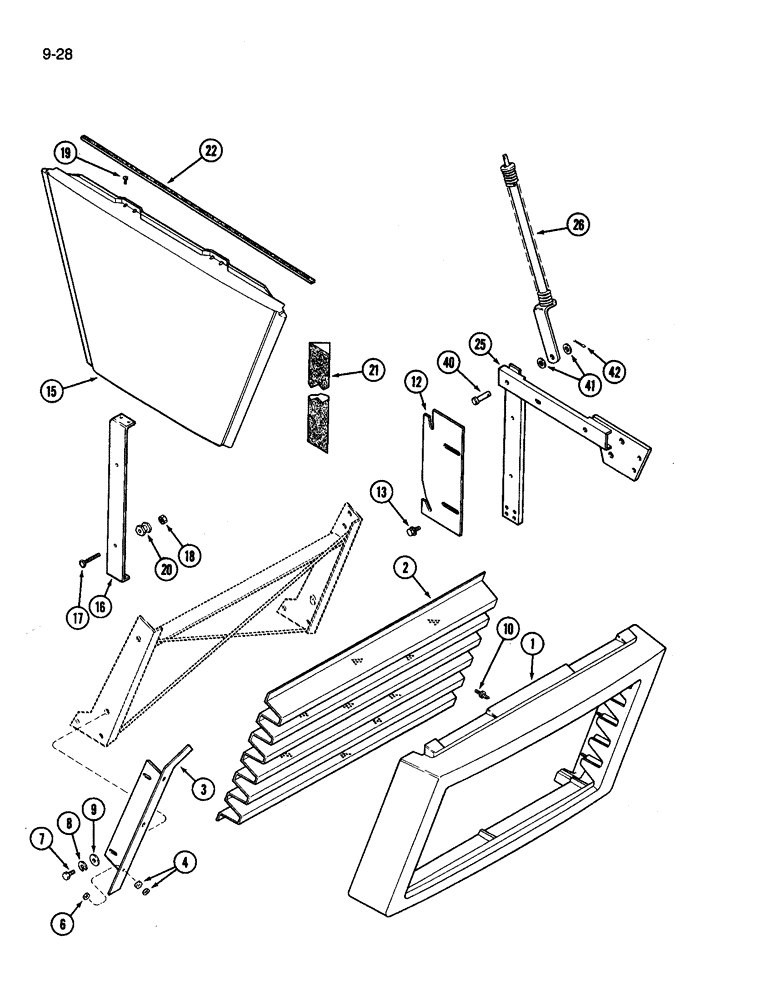

Запчасти Case IH 3394 (9-028) - LOWER GRILLE AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A181466

GRILLE

- lower (Includes 6 studs 1974428C1, see REF 10)

1шт.

2

A162557

SCREEN

- grille, lower

1шт.

3

A147028

BRACKET

ANGLE - grille support, right hand (Shown)

1шт.

3

A147029

BRACKET

ANGLE - lower grille, left hand

1шт.

4

A147030

SPACER

- grille screen

12шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

6шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

495-81147

WASHER,0.41" ID x 2" OD x 0.11" Thk

- flat, 13/32 x 2 x 1/8 inch

4шт.

10

1974428C1

STUD

- mounting, 1/4 inch NC (Replaces A160247)

6шт.

12

A147283

BRACKET

- support, lower side panel

2шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

15

A181465

PANEL

- side, lower

1шт.

Ref #15 - (Red)

1шт.

Ref #15A - A145788 Panel, Lower (White)

1шт.

16

A149069

STRAP

- side panel, lower

2шт.

17

A160078

BOLT

- adjuster, panel support

4шт.

18

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

4шт.

19

261-5478

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

SCREW - self-tapping, pan head Phillips, 1/4 NC x 1/2 inch

8шт.

20

A147282

SPOOL

- lock, lower side panel

4шт.

21

A149132

SEAL

- lower side panel

2шт.

22

A162398

SEAL

- adhesive sided (50 foot bulk length)

2шт.

25

REF

INSTRUCTION

CHANNEL - hood (See Figure 9-24)

2шт.

26

REF

INSTRUCTION

CYLINDER ASSEMBLY - hood lift (See Figure 9-30)

2шт.

40

141-63

CLEVIS PIN,1/2" x 1 11/16'"

PIN - clevis, 1/2 x 1-11/16 inch, hardened

2шт.

41

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

42

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

A67928

KIT

Steering Improvement (Not Shown)

1шт.
