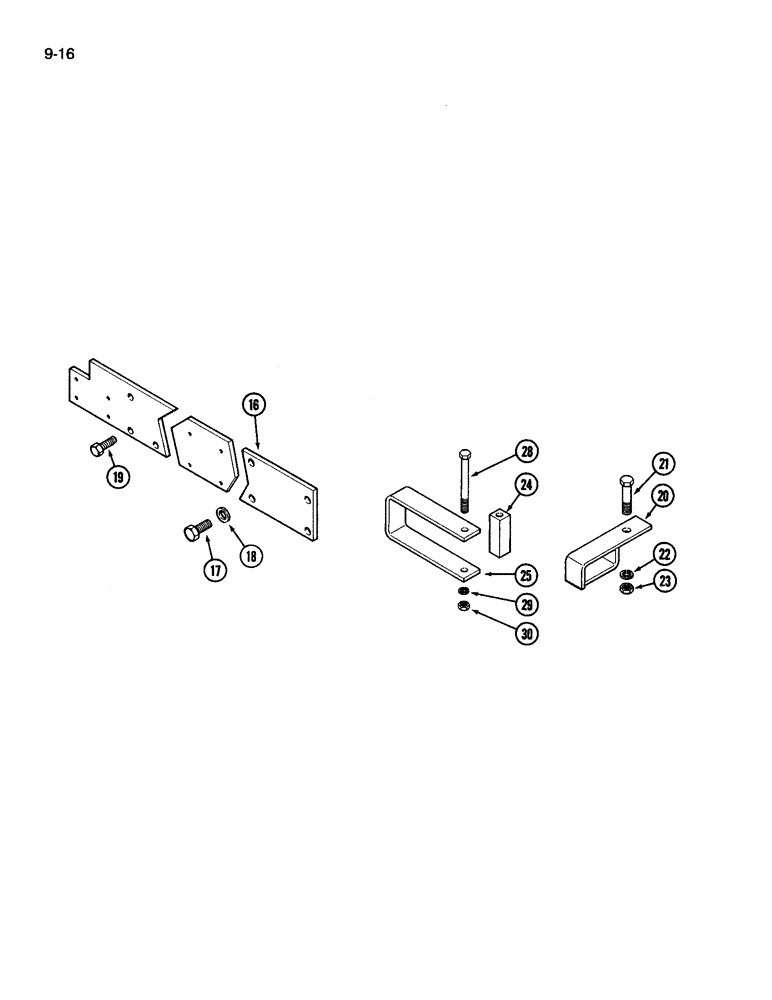

Запчасти Case IH 3394 (9-016) - SIDE RAILS / SAFETY CHAIN SUPPORT (09) - CHASSIS/ATTACHMENTS

16

A161738

RAIL

- side, right

1шт.

16

A185673

RAIL

- side, left (Right shown)(Replaces A167560)

1шт.

17

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

18

A26462

WASHER

- special

8шт.

19

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, grade 5

6шт.

A169123

KIT - support, safety chain (Order components), Includes: Ref. 20 - 30

1шт.

20

A166390

RETAINER

- spring, support

1шт.

21

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

1шт.

22

192-167

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

23

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

1шт.

24

A166965

BLOCK

- clevis

1шт.

25

A165682

CLEVIS

- safety chain

1шт.

28

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

1шт.

29

492-21062

LOCK WASHER,5/8"

1шт.

30

25-1610

NUT,5/8"-11, G5, Hvy

- hex, 5/8 inch NC, heavy duty

1шт.
