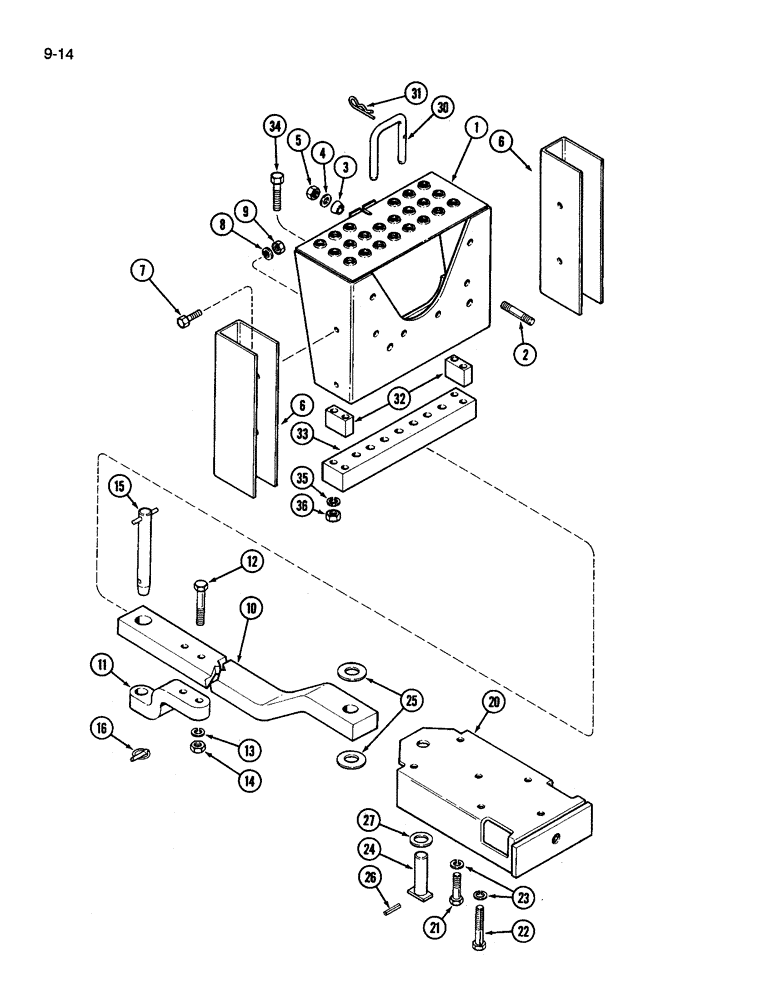

Запчасти Case IH 3394 (9-014) - SLIDING DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

A164542

SUPPORT

ASSEMBLY - drawbar

1шт.

2

A64109

STUD

- 5/8 NC x 3-1/2 inch

6шт.

3

A64167

PIN

DOWEL - support mounting

6шт.

4

A64166

WASHER

- mounting

6шт.

5

29-1010

NUT,5/8"-11, G8

- hex, 5/8 inch NC, grade 8

6шт.

6

A161701

STOP

SWAY STOP - draft arm

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, plated

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

10

A160849

DRAWBAR, SWINGING

DRAWBAR - towing

1шт.

A61836

KIT

- drawbar yoke (Machinery Item), Includes: Ref. 11 - 16

1шт.

11

A61557

DRAWBAR CLAMP

STRAP - drawbar yoke

1шт.

12

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

2шт.

13

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

14

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

15

A65760

PIN

ASSEMBLY - drawbar, Includes: Ref. 16

1шт.

16

A61560

LOCK PIN

PIN - klik

1шт.

20

A164497

BRACKET

- drawbar pivot

1шт.

21

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

2шт.

22

326-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

2шт.

23

92-11075

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

24

A65748

PIN

- drawbar pivot

1шт.

25

A63595

WASHER

- anti rattle

2шт.

26

138-2029

PIN,7.92mm OD x 63.5mm L, Coiled

1шт.

27

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- flat, 1-9/32 x 2 x 1/4 inch

1шт.

30

A164541

RETAINER

- drawbar

1шт.

31

136-166

COTTER PIN,Int, 9/32" x .120"

PIN - hair, 9/32 x 2 inch

1шт.

32

A185767

SPACER

- drawbar rail (Replaces A162741)

2шт.

33

A162740

RAIL

- drawbar support

1шт.

34

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

4шт.

35

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

36

425-1010

NUT,5/8"-11, G5

4шт.
