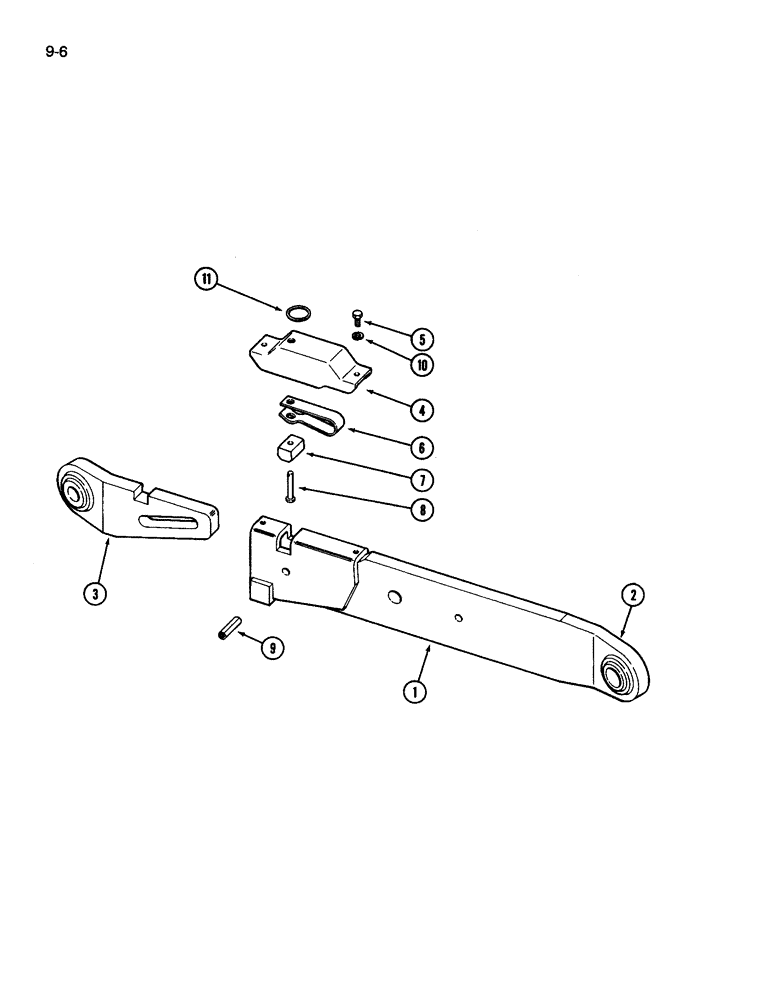

Запчасти Case IH 3394 (9-006) - HITCH DRAFT ARMS, TELESCOPING (09) - CHASSIS/ATTACHMENTS

1

A185270

ARM

ASSEMBLY - hitch draft, right (Includes Ref 2 through 10)

1шт.

1

A185271

ARM

ASSEMBLY - hitch draft, left, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

END ASSEMBLY - draft arm

1шт.

3

A185136

END ASSY.

END ASSEMBLY - draft arm, right

1шт.

3

A185137

END ASSY.

END ASSEMBLY - draft arm, left

1шт.

4

A52199

COVER

- draft arm latch

1шт.

5

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

6

A48917

SPRING

- latch

1шт.

7

A185135

LATCH ASSY.

LATCH - block

1шт.

8

A185304

PIN,9.53mm OD x 54.18mm L

- clevis

1шт.

9

138-2000

PIN,12.7mm OD x 50.8mm L, Coiled

1шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

A185305

RING

- split

1шт.
