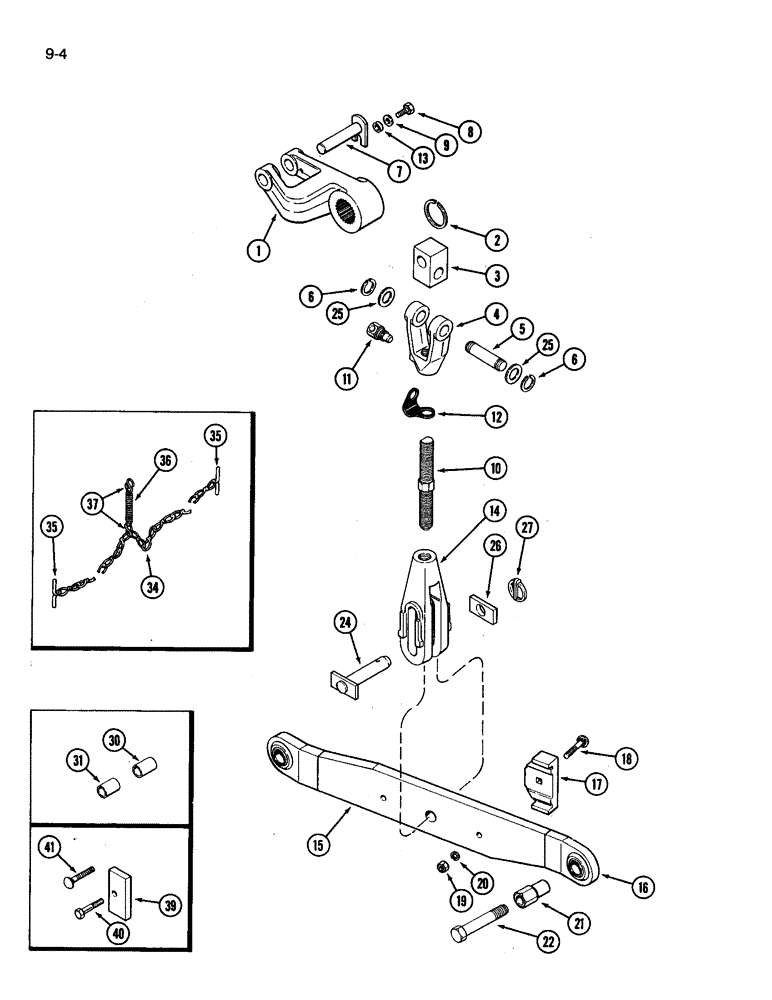

Запчасти Case IH 3394 (9-004) - THREE POINT HITCH, LOWER LIFT LINKS AND DRAFT ARMS (09) - CHASSIS/ATTACHMENTS

1

A181999

ARM, LIFT

ARM - lift

2шт.

2

A63499

SNAP RING,#268, 2.535, Ext

RING - retaining, arm to rockshaft

2шт.

3

A63501

BLOCK

- swivel, lift link

2шт.

4

A165963

YOKE

- lift link, upper

2шт.

5

A66100

PIN

-, Serial Range: yoke-block

2шт.

6

A185689

RING, SNAP

RING - retaining, yoke pin (Replaces A28253)

4шт.

7

A181928

PIN

- block to lift arm

2шт.

8

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex, self-locking, 1/2 NC x 1-1/4 inch

2шт.

9

A75865

WASHER

- hardened

4шт.

10

A165961

ADJUSTMENT SCREW,1 1/4" - 7 x 10.50"

SCREW - lift link adjusting

2шт.

11

A62285

SCREW,Hex, 1" - 12 x 1-1/2"

- yoke locking

2шт.

12

A62986

HOLDER

KEEPER - yoke locking screw

2шт.

13

A148908

SPACER

- pin

2шт.

14

A165964

YOKE

- lift link, lower

2шт.

15

A147766

ARM

ASSEMBLY - draft, Includes: Ref. 16

2шт.

16

A63510

WELDABLE LUG

END ASSEMBLY - draft arm

2шт.

17

A162757

BLOCK

- sway

2шт.

18

111-540

CARRIAGE BOLT,Short NK, 1/2"-13 x 3", G5

BOLT - round head square neck, 1/2 NC x 3 inch

2шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

21

A162784

INSERT

- draft arm to sensing bracket

2шт.

22

106-91696

LOCK BOLT,Locking, 1"-8 x 6", G5

BOLT - hex, 1 NC x 6 inch

2шт.

24

A181927

PIN

ASSEMBLY - lower lift link to draft arm

2шт.

25

A63507

WASHER

- retaining

2шт.

26

A63515

PLATE

- pin stop

4шт.

27

A64204

PIN

- klik

2шт.

30

L10462

BUSHING

ADAPTER - upper hitch pin (Category II) 1 x 1-1/4 x 2 inch

1шт.

31

L10463

BUSHING

ADAPTER - lower hitch pin (Category II) 1-1/8 x 1-7/16 x 1-25/32 inch

2шт.

A65684

CHAIN (AG)

CHAIN ASSEMBLY - anti sway (Order components), Includes: Ref. 34 - 37

1шт.

34

A65685

CHAIN (AG)

CHAIN - anti sway

1шт.

35

A65686

CHAIN

KEEPER - anti sway chain

2шт.

36

A65688

SPRING

- anti sway

1шт.

37

A65687

HOOK

- anti sway chain

2шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT - sway block spacer (Categore II), Includes: Ref. 39 and 40

1шт.

39

A65438

BUSHING

SPACER - Category II no sway

2шт.

40

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

41

111-505

CARRIAGE BOLT,Short NK, 1/2"-13 x 3 1/2", G5

BOLT, CARRIAGE, Short NK, 1/2"-13 x 3 1/2", G5

2шт.
