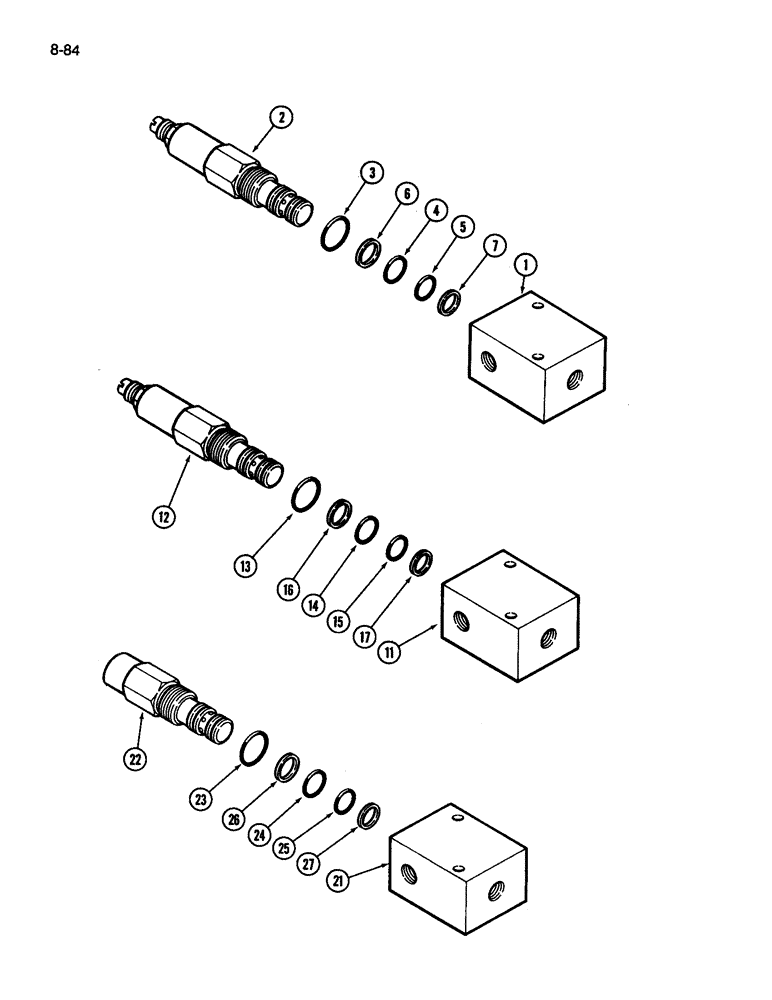

Запчасти Case IH 3394 (8-84) - HYDRAULICS, SEAT PRESSURE REGULATOR VALVE (08) - HYDRAULICS

A169536

VALVE

ASSEMBLY - pressure regulator (Order 1986915C1), Delta part no. 85005281, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1986915C1)

1шт.

2

A48951

VALVE

CARTRIDGE ASSEMBLY - valve, Includes: Ref. 3 - 7

1шт.

A48950

KIT

- seal, regulator valve (Order components), Includes: Ref. 3 - 7

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

5

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

6

L30012

RING

- seal, backup

1шт.

7

T40181

RING

- seal, backup

1шт.

A185476

VALVE

ASSEMBLY - pressure regulator (Order 1986915C1), Delta part no. 85005356, Includes: Ref. 11 - 17

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1986915C1)

1шт.

12

A52413

VALVE

CARTRIDGE ASSEMBLY - valve (Order A48951), Includes: Ref. 13 - 17

1шт.

A48950

KIT

- seal, regulator valve (Order components), Includes: Ref. 13 - 17

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

15

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

16

L30012

RING

- seal, backup

1шт.

17

T40181

RING

- seal, backup

1шт.

1986915C1

VALVE

ASSEMBLY - pressure regulator, Delta part no. 85005668, Includes: Ref. 21 - 27

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1986915C1)

1шт.

22

A52414

CARTRIDGE

ASSEMBLY - valve, Includes: Ref. 23 - 27

1шт.

A48950

KIT

- seal, regulator valve (Order components), Includes: Ref. 23 - 27

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

25

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

26

L30012

RING

- seal, backup

1шт.

27

T40181

RING

- seal, backup

1шт.
