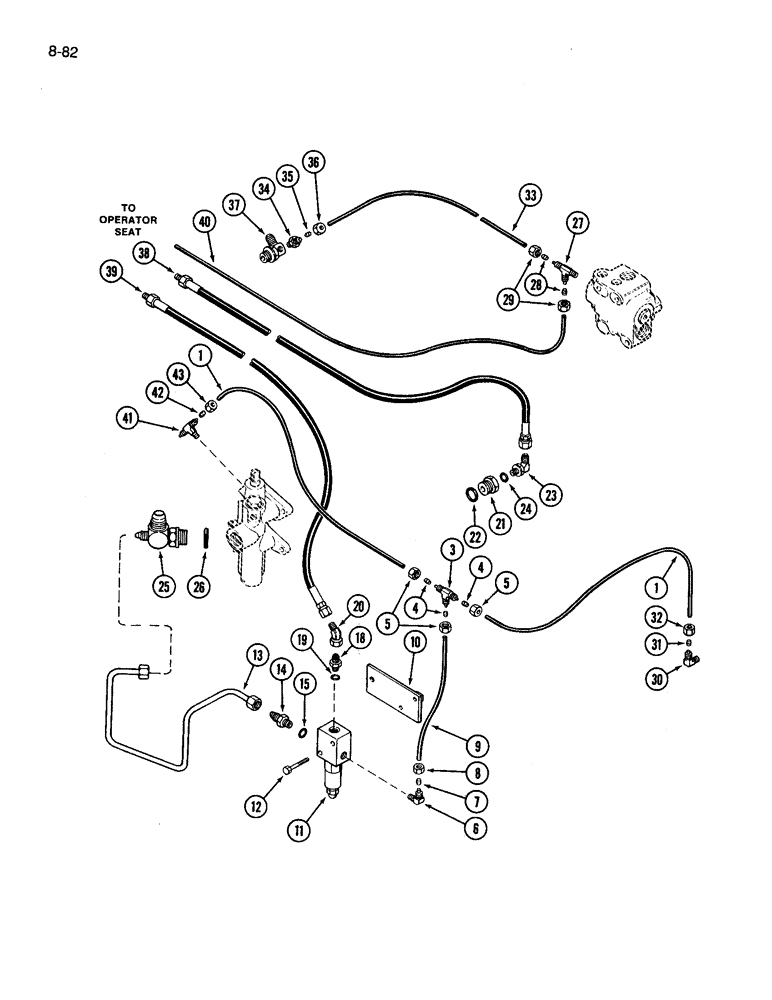

Запчасти Case IH 3394 (8-82) - HYDRAULICS, SEAT AIR/OIL SUSPENSION (08) - HYDRAULICS

1

A137319

TUBE

- nylon, 3/8 x 15 inch (Order A167912)

2шт.

3

222-2751

HYD CONNECTOR

TEE - compression, 3/8 inch OD, Includes: Ref. 4 and 5

1шт.

4

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

3шт.

5

222-2601

NUT

NUT - hex, 3/8 tube OD x 17/32-24 inch

3шт.

6

222-2641

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

- 90 degree, compresson, 3/8 tube OD x 1/5 PT, Includes: Ref. 7 and 8

1шт.

7

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

1шт.

8

222-2601

NUT

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

9

A137319

TUBE

- nylon, 3/8 x 15 inch (Order A167912)

1шт.

10

A176814

PLATE

- valve mounting

1шт.

11

REF

INSTRUCTION

VALVE - pressure regulator (See Figure 8-84)

1шт.

12

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

13

A181994

TUBE

- valve supply

1шт.

14

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

18

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 19

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 deg, 9/16-18 inch flare x swivel straight thread

1шт.

21

A176161

ADAPTER

- straight, special, Includes: Ref. 22

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 24

1шт.

25

218-5578

TEE,9/19/16"-18, 37 Degree x 1 1/16"-12, O-Ring Run

- special, Includes: Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

27

222-2676

TEE,17/32"-24 x 1/4" NPT Br

- compression, 1/4 PT br x 3/8 inch tube OD, Includes: Ref. 28 and 29

1шт.

28

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

2шт.

29

222-2601

NUT

NUT - hex, 3/8 tube OD x 17/32-24 inch

2шт.

30

222-2726

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

- 45 deg, compression, 3/8 tube OD x 1/4 inch PT, Includes: Ref. 31 and 32

1шт.

31

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

1шт.

32

222-2601

NUT

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

33

A75811

TUBE

- nylon, 3/8 inch OD x 34 inch (Order A167912)

1шт.

34

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

ADAPTER - compression, 3/8 tube OD x 1/4 inch PT, Includes: Ref. 35 and 36

1шт.

35

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

1шт.

36

222-2601

NUT

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

37

A161145

FITTING

ELBOW - dipstick (In transmission case)

1шт.

38

REF

INSTRUCTION

HOSE - return, seat (See Figure 9-48)

1шт.

39

REF

INSTRUCTION

HOSE - pressure supply, seat (See Figure 9-48)

1шт.

40

REF

INSTRUCTION

TUBE - drain, seat (See Figure 9-48)

1шт.

41

222-2681

TEE,17/32"-24 x 1/8" NPT Br

ASSEMBLY - 1/4 tube 7/16-24 x 1/4 inch PT, Includes: Ref. 42 and 43

1шт.

42

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

1шт.

43

222-2601

NUT

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
