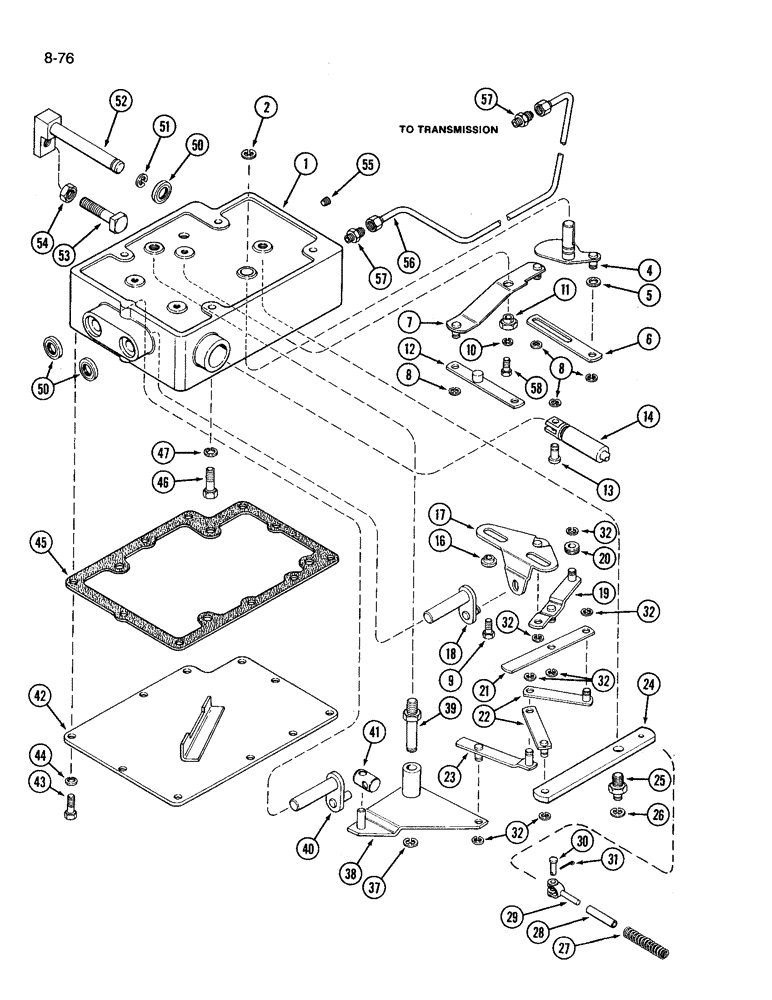

Запчасти Case IH 3394 (8-76) - HITCH SYSTEM, DRAFT CONTROL SENSING LINKAGE (08) - HYDRAULICS

1

A147792

HOUSING

- linkage

1шт.

2

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

1шт.

4

A63403

CAM

- follow up

1шт.

5

495-81131

WASHER,13/32" x 7/8" x .035"

- 13/32 x 7/8 x 1/32 inch

2шт.

6

A63424

LINK

- J, valve lockout

1шт.

7

A65087

ARM

- H, valve lockout

1шт.

8

100-3437

SNAP RING,#37, Ext

RING, SNAP, #37, Ext

4шт.

9

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

11

A63423

TRUNNION

- eccentric

1шт.

12

A137498

LINK

- G, valve spool

1шт.

13

A63428

PIN

- valve spool

1шт.

14

REF

INSTRUCTION

SPOOL - valve (See Figure 8-80)

1шт.

16

A164738

SLIDE

TRUNNION - slide

2шт.

17

A63413

SLIDE

- manual signal

1шт.

18

A63407

SHAFT

- manual signal

1шт.

19

A63416

LINK

- F, draft control

1шт.

20

A63418

ROLLER

- cam follower

1шт.

21

A63419

LINK

- E, draft control

1шт.

22

A63429

LINK

- D, draft control

2шт.

23

A63433

LINK

- B, draft control

1шт.

24

A160867

LEVER

LINK - C, draft control

1шт.

25

A63432

STUD

- pivot, C link (In housing)

1шт.

26

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

27

A160868

SPRING

- control link

1шт.

28

A160869

GUIDE

- spring

1шт.

29

A162295

CLEVIS

- rod end, non-adjustable, 1/4 inch

1шт.

30

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Yoke 1/4" x .770"

1шт.

31

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

32

100-3437

SNAP RING,#37, Ext

RING, SNAP, #37, Ext

7шт.

37

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

38

A63436

LINK

- A, draft control

1шт.

39

A63439

STUD

- pivot, A link

1шт.

40

A63411

SHAFT

- sensitivity adjustment

1шт.

41

A139420

BLOCK

- sliding pivot

1шт.

42

A161547

COVER

- linkage housing

1шт.

43

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

10шт.

44

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

45

1342788C1

GASKET

- draft control linkage housing (Replaces A137621)

1шт.

46

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

47

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

50

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

- oil

3шт.

51

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

1шт.

52

A63400

SHAFT

- signal, draft control

1шт.

53

85-45036

SET SCREW,Sq Hd, 1/2"-13 x 2 1/4"

SCREW - square head, oval point, 1/2 NC x 2-1/4 inch

1шт.

54

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

55

221-849

PLUG,Hex Soc, 1/8"-27

- square, 1/8 inch PT

1шт.

56

A141805

TUBE

- hitch breather

1шт.

57

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight 9/16"-18, 37º x 1/8"-27, NPTF

2шт.

58

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.
