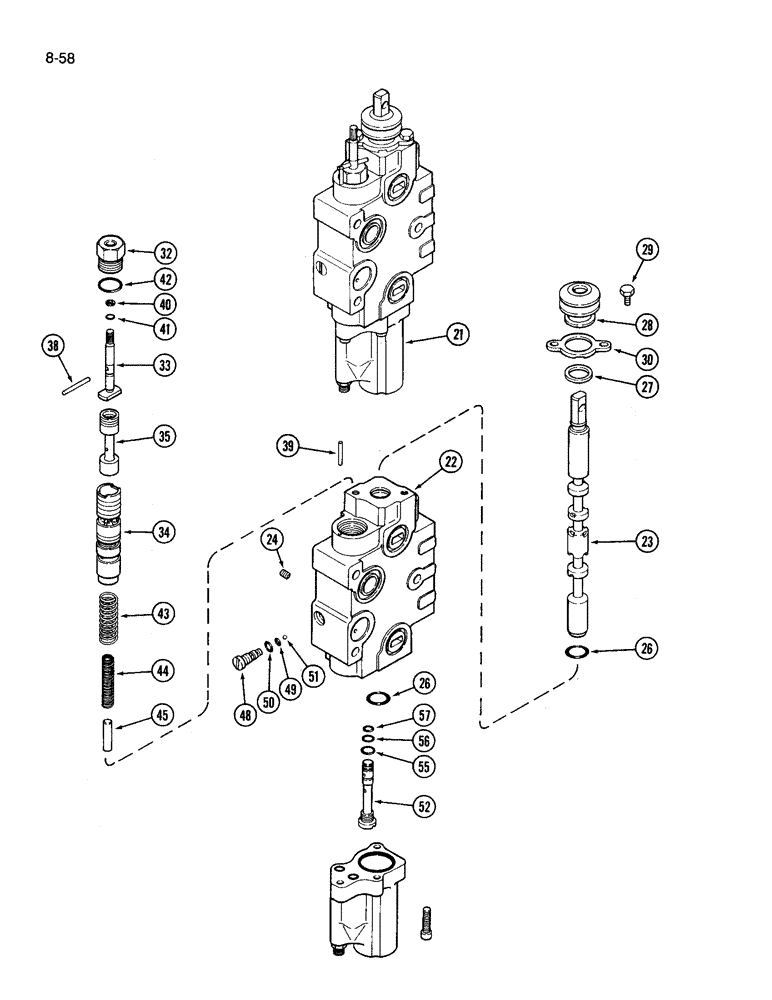

Запчасти Case IH 3394 (8-58) - REMOTE VALVE ASSEMBLY, ADD ON THIRD CIRCUIT WITH LOAD CHECK (CONTINUED) (08) - HYDRAULICS

A169456

VALVE

ASSEMBLY - remote valve, with load check, Includes: Ref. 21 - 57, 2 - 20 on Figure 8-56, and 60 - 96 on Figure 8-60

1шт.

21

A48945

HOUSING

VALVE ASSEMBLY - remote valve, Includes: Ref. 22 - 57 and 60 - 96 on Figure 8-60

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

24

A47105

PLUG

- expansion

1шт.

26

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

A48938

KIT

- service, filter (Order components), Includes: Ref. 27 - 30

1шт.

27

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER - spool

1шт.

28

A47188

COVER

BOOT - dust

1шт.

29

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

- hex, 1/4 NC x 1/2 inch

2шт.

30

A47196

RETAINER

- dust guard

1шт.

32

A48925

PLUG

- flow control

1шт.

33

A48929

SHAFT

- adjusting

1шт.

34

A48956

TUBE

- flow control

1шт.

35

A48957

SPOOL

- flow control

1шт.

A48941

SEAL

KIT - flow control (Order components), Includes: Ref. 38 - 44

1шт.

38

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1шт.

39

138-305

LOCK PIN,1/8" x 1", Slotted, Stainless

Pin, 1/8" x 1, Slotted, Stainless

1шт.

40

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

41

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

43

A48959

SPRING

- outer, flow control

1шт.

44

A48960

SPRING

- inner, flow control

1шт.

45

A48937

PIN

- guide, spring

1шт.

A47210

PLUG

ASSEMBLY - secondary shuttle (Order components), Includes: Ref. 48 - 50

1шт.

48

A47204

PLUG

BODY - shuttle

1шт.

A48939

KIT

- service, shuttle seals (Order components), Includes: Ref. 49 and 50

1шт.

49

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

50

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

51

211-204

BALL

- 3/16 inch, grade 50, chrome alloy steel

1шт.

52

A47209

SPOOL

SHUTTLE ASSEMBLY - primary, Includes: Ref. 55 - 57

1шт.

N6632

SEAL KIT

- service, shuttle seals (Order components), Includes: Ref. 55 - 57

1шт.

55

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

56

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

57

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

1шт.
