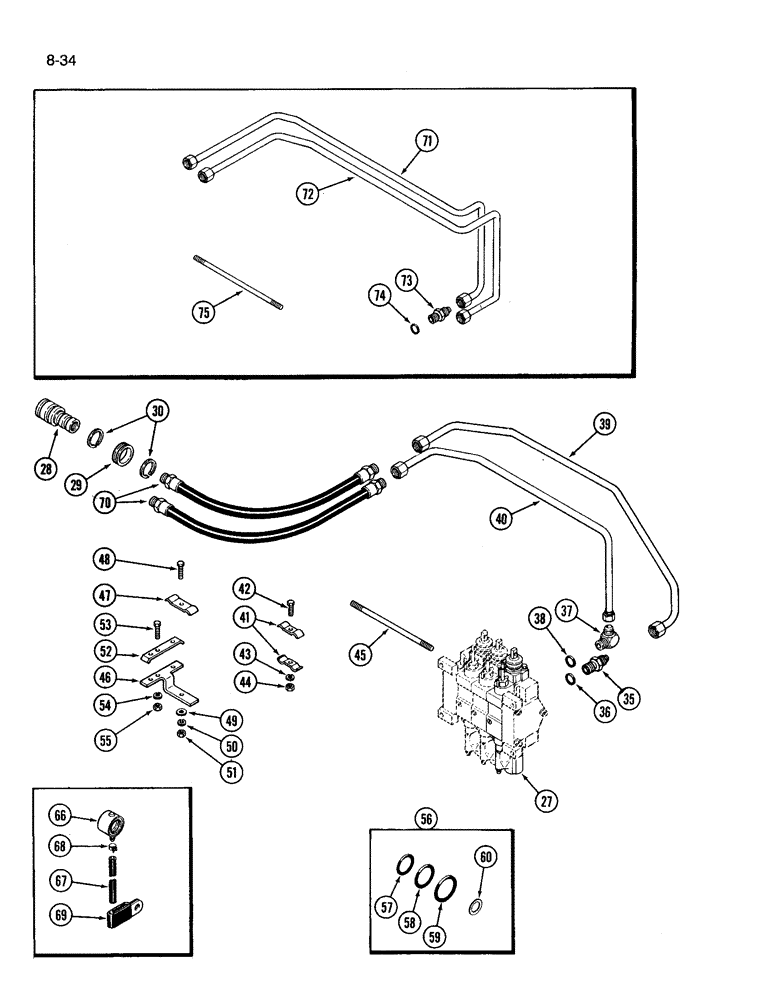

Запчасти Case IH 3394 (8-34) - REMOTE HYDRAULICS ADD ON ATTACHMENT, THIRD OR FOURTH CIRCUIT WITHOUT LOAD CHECK (CONTINUED) (08) - HYDRAULICS

A181930

ATTACHMENT

- remote hydraulics, 3rd or 4th circuit (Replaces A180262)(Machinery Item), Includes: Ref. 27 - 75 and 1 - 26 on Figure 8-32

1шт.

27

REF

INSTRUCTION

BODY ASSEMBLY - remote valve (See Figure 8-52 and 8-54)

1шт.

28

REF

INSTRUCTION

COUPLING - remote hydraulic, female (See Figure 8-64)

2шт.

29

A139805

RETAINER

- coupling

2шт.

30

A137976

SNAP RING,#150, 1.408", Ext

RING - retaining

4шт.

35

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj o-ring boss (3rd circuit), Incl. Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

A181336

TUBE

- valve to No. 5 coupling (3rd circuit)

1шт.

40

A181338

TUBE

- valve to No. 6 coupling (3rd circuit)

1шт.

41

A63323

CLAMP

- tube

2шт.

42

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

45

A147507

STUD

- 3/8 NC x 9-7/8 inch (3rd circuit)

3шт.

46

A147771

BRACKET

- support, tube clamp

1шт.

47

A17542

CLAMP

- tube

1шт.

48

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

49

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

50

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

51

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

52

A147772

CLAMP

- tube

1шт.

54

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

55

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

56

A47576

KIT

- seals and shims (Order components), Includes: Ref. 57 - 60

1шт.

57

238-6210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 ID x 1/8 inch wide

1шт.

58

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

59

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

5шт.

60

D77566

SHIM,.0030" Thk

Control valve sections .0030" Thk

3шт.

66

A177479

CAP

- dust, coupling

2шт.

67

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain (Cut to Length) 7.90 mm ID x 914.40 mm, SAE J200

2шт.

68

A180159

CLAMP,10.29mm - 12.32mm

- hose

2шт.

69

A180154

CLAMP

- hose

1шт.

70

A181359

HOSE,12.70 mm ID x 782.00 mm, SAE 100R2

- - Remote tubes to couplings 12.70 mm ID x 782.00 mm, SAE 100R2

2шт.

71

A181340

TUBE

- valve to No. 7 coupling (4th circuit)

1шт.

72

A181341

TUBE

- valve to N0. 8 coupling (4th circuit)

1шт.

73

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss (4th circuit), Includes: Ref. 74

1шт.

74

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

75

A147508

STUD

- 3/8 NC x 11-3/4 inch (4th circuit)

3шт.

53

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
