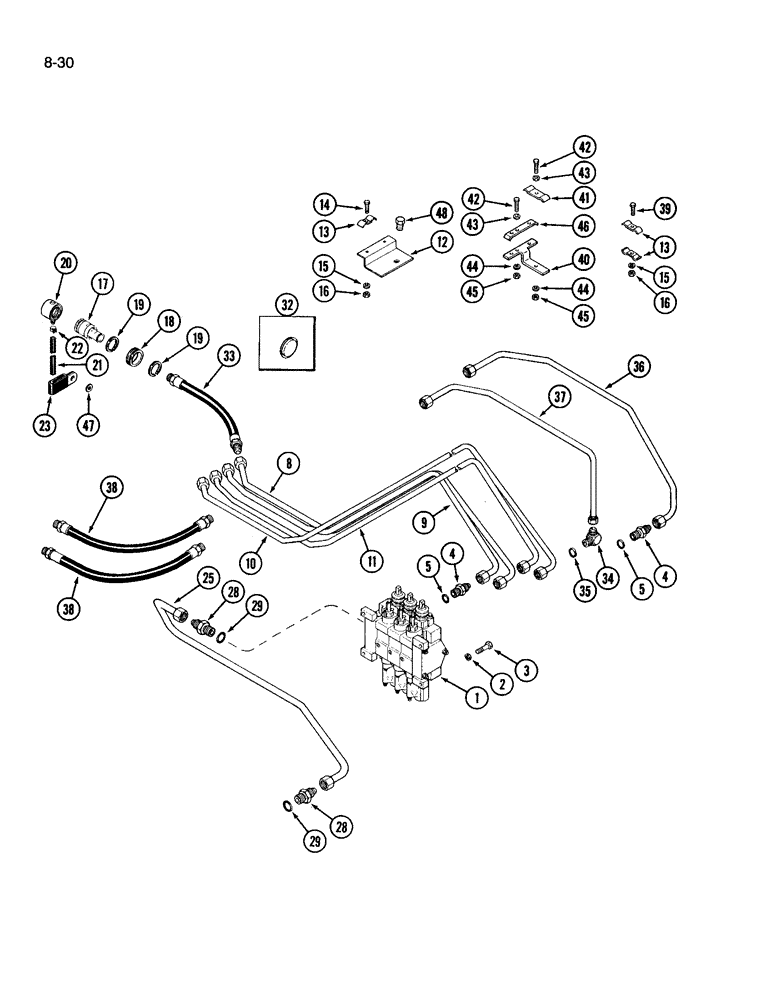

Запчасти Case IH 3394 (8-30) - REMOTE TUBES AND COUPLINGS, THREE CIRCUIT REMOTE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - remote (See Figure 8-44)

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

3

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 5

5шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

A181331

TUBE

- valve to No. 1 coupling

1шт.

9

A181332

TUBE

- valve to No. 2 coupling

1шт.

10

A181334

TUBE

- valve to No. 3 coupling

1шт.

11

A181335

TUBE

- valve to No. 4 coupling

1шт.

12

A185548

BRACKET

SUPPORT - tube clamps (Replaces A141174)

1шт.

13

A63323

CLAMP

- tube

4шт.

14

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

15

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, grade 5

3шт.

17

REF

INSTRUCTION

COUPLING - remote hydraulic, female (See Figure 8-64)

6шт.

18

A139805

RETAINER

- coupling

6шт.

19

A137976

SNAP RING,#150, 1.408", Ext

RING - retaining

12шт.

20

A177479

CAP

- dust, coupling

6шт.

21

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

6шт.

22

A180159

CLAMP,10.29mm - 12.32mm

- hose

6шт.

23

A180154

CLAMP

- hose

2шт.

25

A177714

TUBE ASSY.

TUBE - remote, Serial Range: valve-sump

1шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 29

2шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

32

353-590

PLUG,1 7/8"

- button, 1-7/8 inch

2шт.

33

A181348

HYDRAULIC HOSE,12.7mm ID x 457.2mm L, SAE 100R2

12.70 mm ID x 457.20 mm, - Remote tubes to couplings SAE 100R2

4шт.

34

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj o-ring boss, Incl. Ref. 35

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

36

A181336

TUBE

- valve to No. 5 coupling

1шт.

37

A181338

TUBE

- valve to No. 6 coupling

1шт.

38

A181359

HOSE,12.70 mm ID x 782.00 mm, SAE 100R2

- - Remote tubes to couplings 12.70 mm ID x 782.00 mm, SAE 100R2

2шт.

39

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

40

A147771

BRACKET

- support, tube clamp

1шт.

41

A17542

CLAMP

- tube

2шт.

43

95-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

3шт.

44

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

3шт.

45

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

46

A147772

CLAMP

- tube

1шт.

47

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

48

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

1шт.

42

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.
