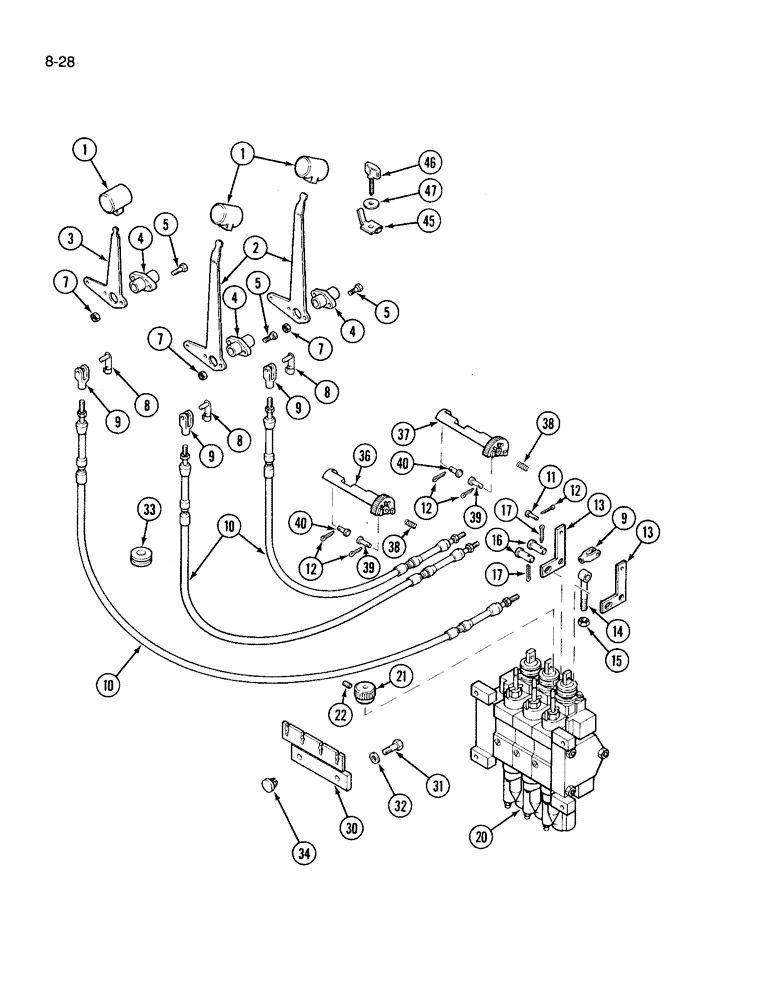

Запчасти Case IH 3394 (8-28) - REMOTE HYDRAULIC CONTROLS, THREE CIRCUIT REMOTE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A177438
KNOB
- hand lever (Black)
3шт.
2
A181781
LEVER
- remote (1st and 2nd circuit)
2шт.
3
A141392
LEVER
- remote (3rd circuit)
1шт.
4
A160500
BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L
BEARING - control lever
3шт.
5
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
6шт.
7
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
6шт.
8
A149683
PIN
- clevis, spring, 3/16 inch
3шт.
9
213-1
ADJUSTABLE CLEVIS,#10-32
CLEVIS - adjustable, No. 10
6шт.
10
A177635
CABLE
- control, Serial Range: lever-valve
3шт.
11
A67313
PIN
- clevis
3шт.
12
432-412
COTTER PIN,1/16" x 3/4"
PIN, SPLIT (COTTER), 1/16" x 3/4"
9шт.
13
A145598
LEVER
- remote valve bellcrank
6шт.
14
A145597
EYE
- bellcrank pivot
3шт.
15
425-146
JAM NUT,3/8" - 16, Gr 5
- hex jam, 3/8 inch NC
3шт.
16
141-54
CLEVIS PIN,3/8" x 1 1/16"
6шт.
20
REF
INSTRUCTION
VALVE - remote (See Figure 8-44)
1шт.
21
A160814
KNOB
- flow control
3шт.
22
84-21010
SET SCREW,Hex Soc, #10-32 x 5/8"
SCREW - set, hex socket, No. 10 NF x 5/8 inch
3шт.
30
A145021
PLATE
- mounting, remote cable
1шт.
31
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
2шт.
32
95-21044
WASHER,3/8"
- flat, 7/16 x 1 x 5/64 inch
2шт.
33
A141389
GROMMET
- cable
3шт.
34
A162961
PLUG
- 3/4 inch diameter head
3шт.
36
A162860
QUADRANT
- remote lockout, outer
1шт.
37
A162861
QUADRANT
- remote lockout, inner
2шт.
38
A164976
SPRING
- remote lockout
3шт.
39
A67313
PIN
- clevis
3шт.
40
A167543
PIN,4.72mm OD x 19.99mm L
- clevis
3шт.
A67602
KIT - lockout stop (Order components), Includes: Ref. 45 - 47
1шт.
45
A176175
CLAMP
- lever stop
1шт.
46
A162958
BUTTON
KNOB - stop
1шт.
47
495-21038
WASHER,5/16"
(flat, 3/8 x 7/8 x 3/32") 5/16"
1шт.
Выбрано товаров: 34
