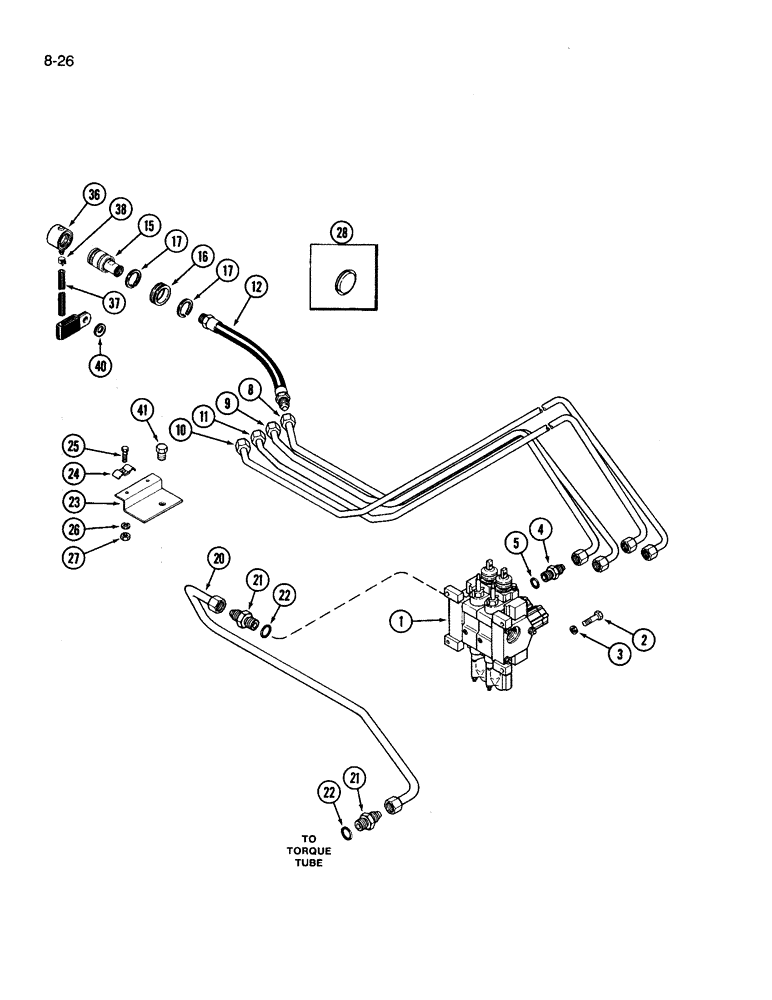

Запчасти Case IH 3394 (8-26) - REMOTE TUBES AND COUPLINGS, TWO CIRCUIT REMOTE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - remote (See Figure 8-42)

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

3

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 5

4шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

A181331

TUBE

- valve to No. 1 coupling

1шт.

9

A181332

TUBE

- valve to No. 2 coupling

1шт.

10

A181334

TUBE

- valve to No. 3 coupling

1шт.

11

A181335

TUBE

- valve to No. 4 coupling

1шт.

12

A181348

HYDRAULIC HOSE,12.7mm ID x 457.2mm L, SAE 100R2

12.70 mm ID x 457.20 mm, - Remote tubes to couplings SAE 100R2

4шт.

15

REF

INSTRUCTION

COUPLING - remote hydraulic, female (See Figure 8-64)

4шт.

16

A139805

RETAINER

- coupling

4шт.

17

A137976

SNAP RING,#150, 1.408", Ext

RING - retaining

8шт.

20

A177714

TUBE ASSY.

TUBE - remote, Serial Range: valve-sump

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 22

2шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

A185548

BRACKET

SUPPORT - tube clamps (Replaces A141174)

1шт.

24

A63323

CLAMP

- tube

2шт.

25

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

26

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, grade 5

2шт.

28

353-590

PLUG,1 7/8"

- button, 1-7/8 inch

4шт.

36

A177479

CAP

- dust, coupling

4шт.

37

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

4шт.

38

A180159

CLAMP,10.29mm - 12.32mm

- hose

4шт.

39

A180154

CLAMP

- hose

1шт.

40

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

41

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

1шт.
