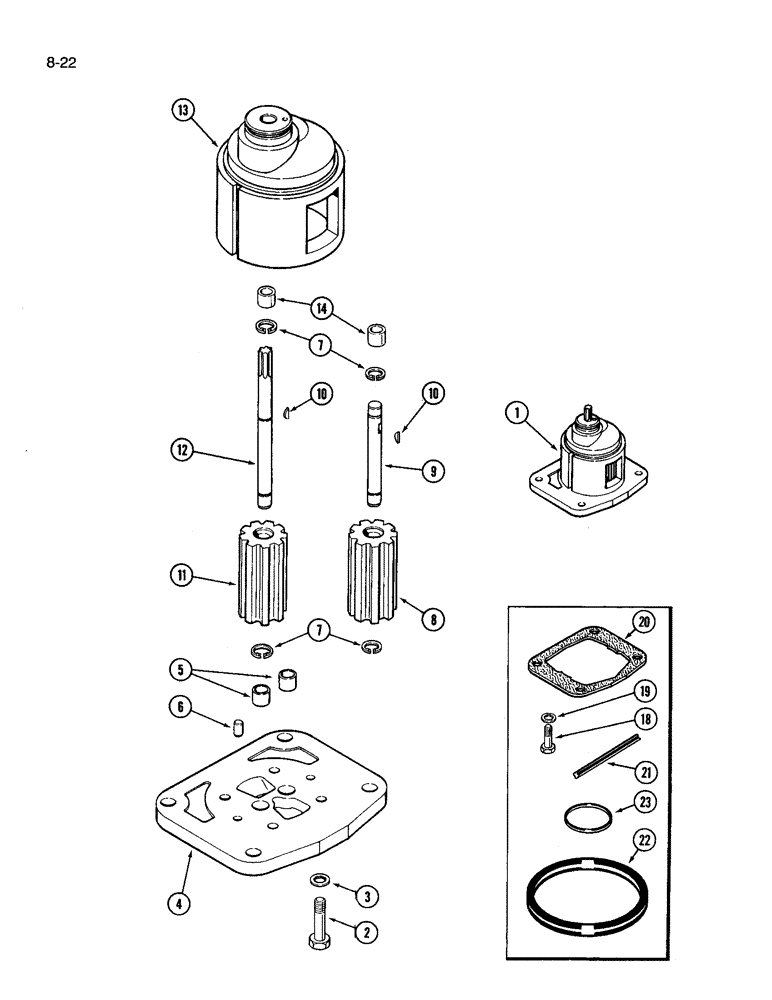

Запчасти Case IH 3394 (8-22) - CHARGING PUMP (08) - HYDRAULICS

1

A141298

PUMP

ASSEMBLY - charging, hydraulic oil, Includes: Ref. 2 - 14

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

A63335

WASHER

- seal, Serial Range: cover-body

4шт.

4

A141296

COVER

ASSEMBLY - pump, Includes: Ref. 5

1шт.

5

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

- pump cover

2шт.

6

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, Serial Range: cover-body

2шт.

7

603540C1

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

4шт.

8

A64096

GEAR

- driven

1шт.

9

A64097

SHAFT

- driven gear

1шт.

10

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

2шт.

11

A64096

GEAR

- drive

1шт.

12

A64099

SHAFT

- drive gear

1шт.

13

A64093

HOUSING

BODY ASSEMBLY - pump, Includes: Ref. 14

1шт.

14

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

- pump body

2шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

20

1981256C1

GASKET

- pump to torque tube (Replaces A141326)

1шт.

21

A63336

OIL SEAL

- pump to torque tube

2шт.

22

A63337

OIL SEAL

- pump to torque tube

1шт.

23

238-5130

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1шт.
