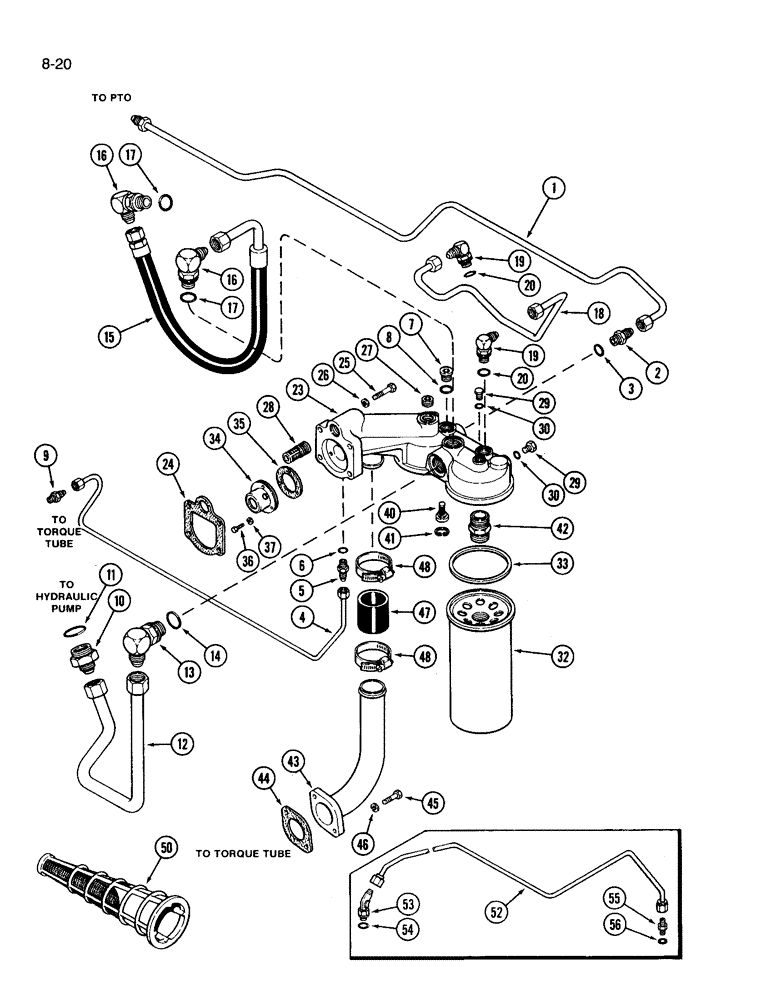

Запчасти Case IH 3394 (8-20) - HYDRAULIC OIL FILTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A177647
TUBE
- PTO lubrication, front
1шт.
2
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
ADAPTER - straight, 3/4-16 inch flare x o-ring boss, Incl. Ref 3
1шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
4
A177718
TUBE
- (C1) clutch lubrication
1шт.
5
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 6
1шт.
7
71100209
PLUG,Hex Soc, 3/4"-16 ORB
Incl Ref 8 Hex Soc, 3/4"-16 ORB
1шт.
8
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
9
HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF
ADAPTER - straight, 9/16-18 flare x 1/4 inch PT
1шт.
10
A147128
CONNECTOR, ELEC
UNION - straight, 1 inch tube, 1-5/16 NF x 1-7/8 inch NF, Includes: Ref. 11
1шт.
11
237-6028
O-RING,1.364" ID x 1.504" OD x 0.07"
- 2-3/32 ID x 7/64 inch wide
1шт.
12
A177472
TUBE ASSY.
TUBE -, Serial Range: filter-pump
1шт.
13
218-5110
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Adjustable, Incl. Ref. 14 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring
1шт.
15
A176974
HOSE
- pump suction
1шт.
16
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 17
2шт.
17
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
18
A177636
TUBE ASSY.
TUBE - priority valve
1шт.
19
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 20
2шт.
20
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
23
A181428
HOUSING
- filter
1шт.
24
A181430
GASKET
- filter housing
1шт.
25
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
4шт.
26
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
27
221-844
PLUG,Hex Soc, 1/2"-14
- hex socket, 1/2 inch PT
1шт.
28
A181374
VALVE, CHECK
VALVE - check
1шт.
29
9672438
PLUG,7/16" - 20 ORB
Incl. Ref. 30 Hex Hd, 7/16"-20 ORB
2шт.
30
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
32
NSS
NOT SOLD SEPARAT
ELEMENT - filter
2шт.
33
123010C2
GASKET
- filter
2шт.
34
A152794
VALVE
- filter pressure regulator
1шт.
35
A176475
GASKET
- regulator valve
1шт.
36
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
3шт.
37
92-11025
LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk
WASHER, LOCK, 1/4"
3шт.
40
A177540
VALVE
- filter bypass
2шт.
41
A177482
SNAP RING
RING - retaining
2шт.
42
A176321
CONNECTOR, ELEC
ADAPTOR - filter mounting
2шт.
43
A177619
TUBE ASSY.
TUBE - filter inlet
1шт.
44
A176323
GASKET
- inlet tube
1шт.
45
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
2шт.
46
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
47
A177620
HOSE,50.80 mm ID x 63.50 mm, SAE 30R2, SAE J30
suction 50.80 mm ID x 63.50 mm, SAE 30R2, SAE J30
1шт.
48
214-260
HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm
adj. #36, 1.81/2.75 Type F Worm
2шт.
50
A139052
FILTER
- inlet
1шт.
52
A177646
TUBE
- dual range lubrication (24 speed transmission)
1шт.
53
218-5135
ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
- 45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 54
1шт.
55
218-5058
HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB
ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 56
1шт.
6
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
54
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
56
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Выбрано товаров: 50
