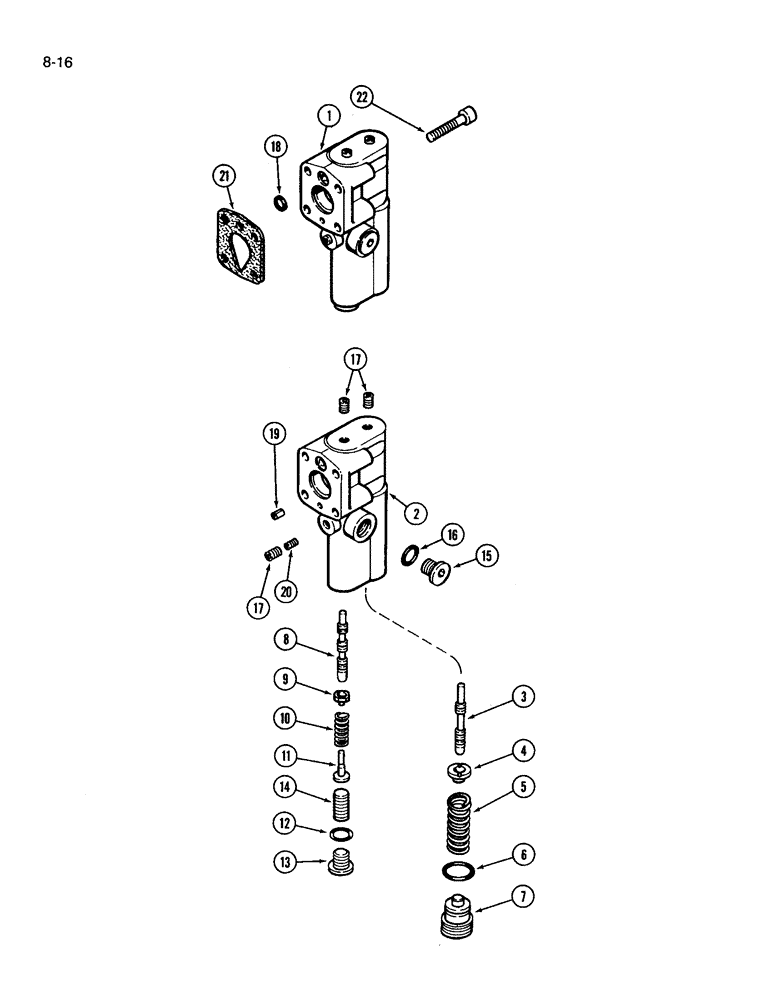

Запчасти Case IH 3394 (8-16) - GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS

A185363

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, Includes: Ref. 1 - 22

1шт.

A185363R

REMAN-HYD PUMP

3394 (1/85-12/87)

1шт.

A185363C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

A49832

VALVE

COMPENSATOR ASSEMBLY - pump, Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - pressure limiter

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT - pressure limiter spool

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - pressure limiter spool

1шт.

6

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

in Kit A49833 -015, 90 Duro, .551" ID x .070" Thk

1шт.

7

NSS

NOT SOLD SEPARAT

PLUG - pressure limiter spool adjusting

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - load sensing

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - load sensing spool, upper

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - load sensing spool

1шт.

11

NSS

NOT SOLD SEPARAT

SEAT - load sensing spool, lower

1шт.

12

A49435

O-RING

- rubber (IN kit A49833)

1шт.

13

A49437

PLUG

- hex socket

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - set, load sensing, self locking

1шт.

15

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

16

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, In kit A49833

1шт.

17

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket, 1/16 inch PT

3шт.

18

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

(in Kit A49833) -011, 90 Duro, .301" ID x .070" Thk

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - valve body

1шт.

20

NSS

NOT SOLD SEPARAT

ORIFICE - valve body

1шт.

21

A49436

GASKET

- compensator mounting (In kit A49833)

1шт.

22

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW, Hex Soc Hd, #10-24 x 1 1/4"

4шт.
