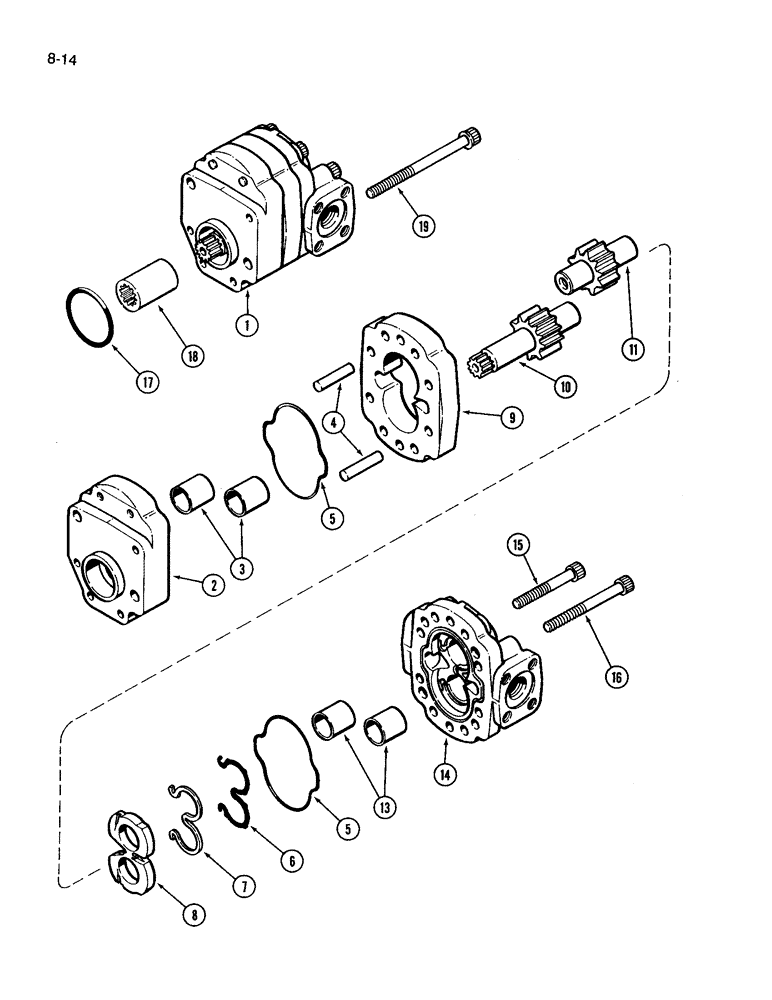

Запчасти Case IH 3394 (8-14) - GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS

A185363

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, Includes: Ref. 1 - 19

1шт.

A185363R

REMAN-HYD PUMP

3394 (1/85-12/87)

1шт.

A185363C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

A49792

PUMP

ASSEMBLY - gear, Includes: Ref. 2 - 16 and kit

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - front cover

2шт.

4

NSS

NOT SOLD SEPARAT

DOWEL - body locating

2шт.

5

NSS

NOT SOLD SEPARAT

O-RING - cover

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL - rubber

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - teflon

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - rear cover

2шт.

14

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - short

6шт.

16

NSS

NOT SOLD SEPARAT

SCREW - long

4шт.

A47643

SEAL

KIT - service, gear pump seals

1шт.

17

F98069

O-RING

- sealing (IN kit A49833)

1шт.

18

A47312

COUPLING, BREAK AWAY

COUPLING - drive, gear pump to piston pump

1шт.

19

A47412

SCREW,M8 x 100mm

- metric, gear pump to piston pump

2шт.
