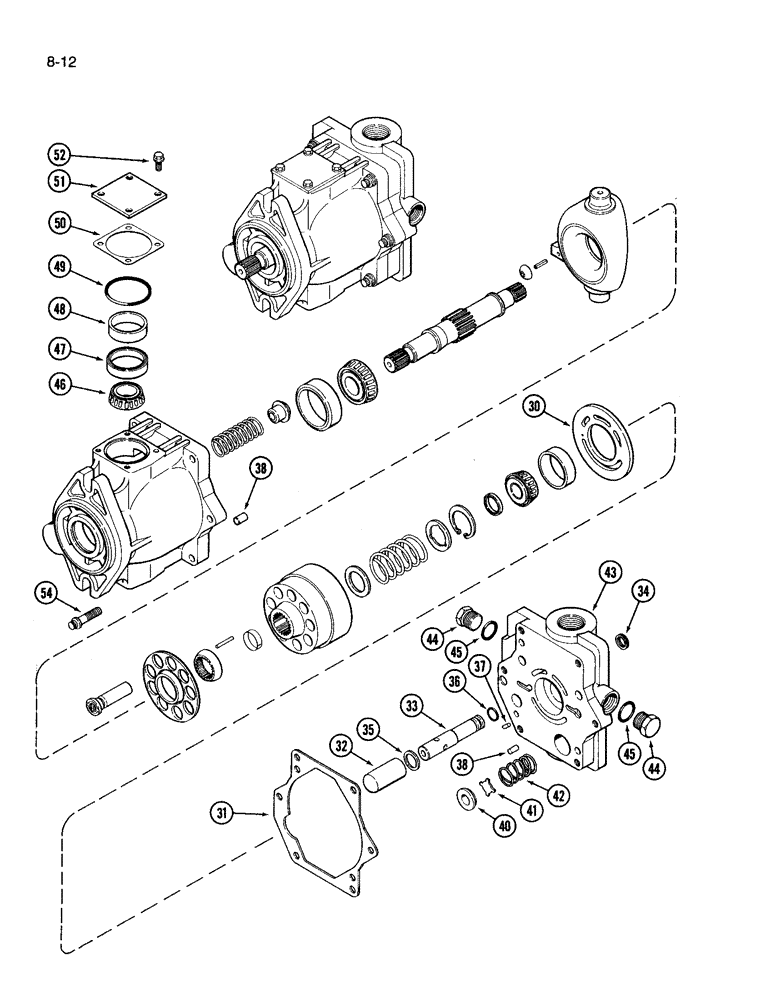

Запчасти Case IH 3394 (8-12) - GEAR AND PISTON PUMP ASSEMBLY (CONTINUED) (08) - HYDRAULICS

A185363

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, Includes: Ref. 30 - 54 and 2 - 26 on Figure 8-10

1шт.

A185363R

REMAN-HYD PUMP

3394 (1/85-12/87)

1шт.

A185363C

CORE-HYDRAULIC PUMP

Return Number

1шт.

30

1263236C1

PLATE

- wafer (Replaces A47302)

1шт.

31

A47280

GASKET,0.53mm Thk

- housing (In kit A49833)

1шт.

1263240C1

PACKAGE

KIT - compensator piston and rod, Includes: Ref. 32 - 34

1шт.

32

NSS

NOT SOLD SEPARAT

PISTON - compensator

1шт.

33

NSS

NOT SOLD SEPARAT

ROD - compensator

1шт.

34

A47340

RING

- retaining

1шт.

35

A47479

BUSHING

SPACER - piston rod

1шт.

36

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

In Kit A49833 -112, 90 Duro, .487" ID x .103" Thk

1шт.

37

A47309

PIN

- headless, 1/4 x 1/2 inch

1шт.

38

A47301

PIN

- locating

2шт.

40

A47306

PLUG

SEAT - valve block

1шт.

41

A47307

VALVE

- check

1шт.

42

A47308

SPRING

- valve block

1шт.

43

A49434

PIPE

BLOCK - valve

1шт.

44

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss

2шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, in kit A49833

2шт.

46

572563R1

ROLLER BEARING,27 mm ID x 50.317 mm OD x 14.732 mm

CONE - bearing

2шт.

47

572564R1

BEARING CUP

CUP - bearing

2шт.

48

A47286

SPACER

- bearing

2шт.

49

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

(In kit A49833) -137, 90 Duro, 2.05" ID x .103" Thk

2шт.

145590C1

SHIM KIT

KIT - yoke bearing spacer, Includes: Ref. 50

1шт.

50

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.003 inch (3 in kit)

1шт.

50

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.005 inch (3 in kit)

1шт.

50

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.010 inch (3 in kit)

1шт.

51

A47288

COVER

- housing

2шт.

52

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

54

27077R1

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2"

BOLT - 12 point, 3/8 NC x 1-1/2 inch, grade 8

6шт.
