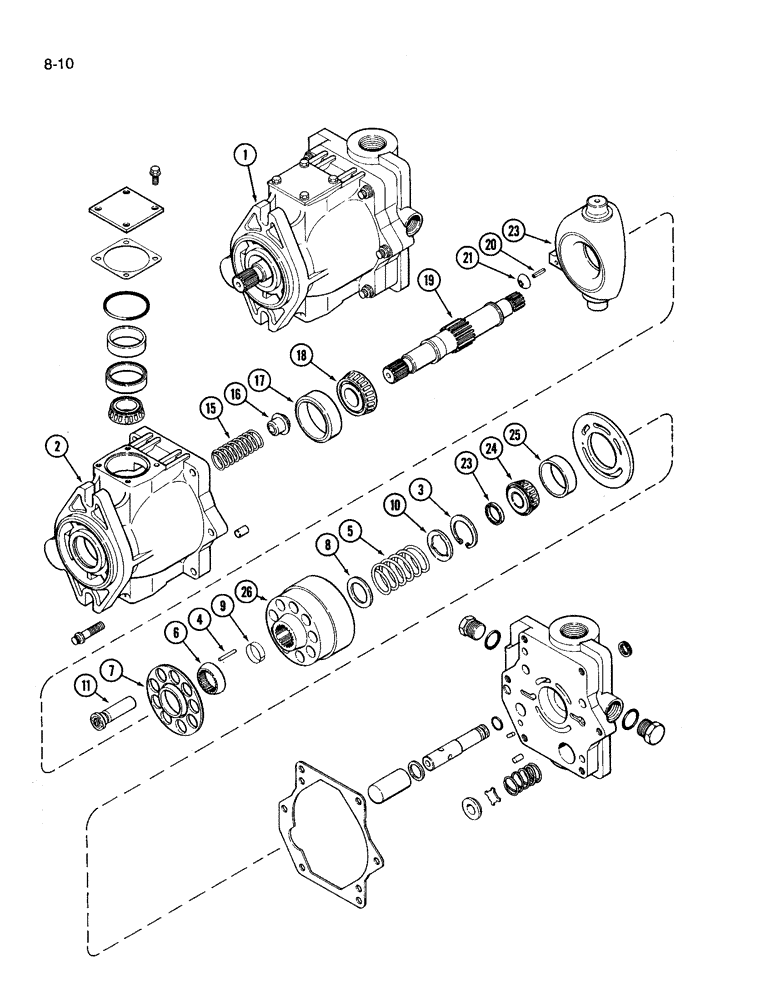

Запчасти Case IH 3394 (8-10) - GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A185363
PUMP, HYDRAULIC
PUMP ASSEMBLY - hydraulic, Includes: Ref. 2 - 26 and 30 - 54 on Figure 8-12
1шт.
A185363R
REMAN-HYD PUMP
3394 (1/85-12/87)
1шт.
A185363C
CORE-HYDRAULIC PUMP
Return Number
1шт.
2
A47278
HOUSING
- pump, piston
1шт.
1263239C1
REPAIR KIT
KIT - rotating group, Includes: Ref. 3 - 10
1шт.
3
NLS
NO LONGER SERVICED
Ring, Snap, 1.625", Int, #162
1шт.
4
A47296
PIN
- block
3шт.
5
A47298
SPRING
- block
1шт.
6
A47293
WASHER
- spherical
1шт.
7
A47292
PLATE
- shoe
1шт.
8
A47299
WASHER
- spring
1шт.
9
A47297
SNAP RING,7.11mm Thk, Int
- pin
1шт.
10
A47300
SPRING WASHER
WASHER - spring
1шт.
11
A47334
PACKAGE
KIT - piston (Includes 9 pistons and 9 shoes)
1шт.
15
A47281
SPRING
- piston pump housing
1шт.
16
A47282
PLUG
SEAT - spring
1шт.
17
642954R1
BEARING ASSY,1" ID x 2.441" OD x 0.8125"
CUP - bearing
1шт.
18
594446R1
ROLLER BEARING
CONE - bearing
1шт.
19
A47289
SHAFT
- drive, piston pump
1шт.
20
138-88
LOCK PIN,3/16" x 1/2", Slotted
PIN, 3/16" x 1/2", Slotted
1шт.
21
A47283
SEAT
- spherical
1шт.
22
A47284
YOKE
- swing
1шт.
145582C1
KIT
- spacer, rear bearing, Includes: Ref. 23
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER - bearing, 0.139 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER - bearing, 0.142 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER - bearing, 0.145 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER - bearing, 0.148 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER - bearing, 0.151 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER - bearing, 0.154 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER - bearing, 0.157 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER - bearing, 0.160 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER - bearing, 0.163 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER - bearing, 0.166 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER - bearing, 0.169 inch
1шт.
24
371882R91
ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W
1шт.
25
371883R1
BEARING CUP
1шт.
26
A47295
BLOCK
- cylinder
1шт.
Выбрано товаров: 37
