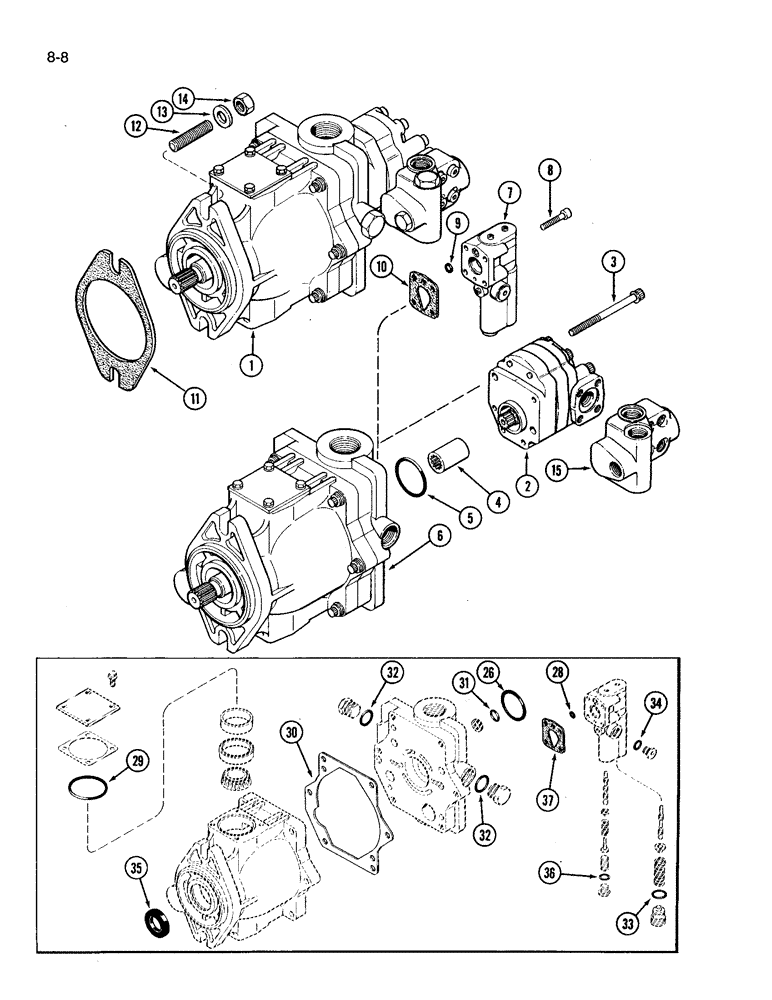

Запчасти Case IH 3394 (8-08) - GEAR AND PISTON PUMP (08) - HYDRAULICS

1

A185363

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, Includes: Ref. 2 - 10

1шт.

A185363R

REMAN-HYD PUMP

3394 (1/85-12/87)

1шт.

A185363C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

REF

INSTRUCTION

PUMP ASSEMBLY - gear section (See Figure 8-14)

1шт.

3

A47412

SCREW,M8 x 100mm

- metric, gear pump to piston pump

2шт.

REF 3 - A47639 IS AN 8 X 110 MM SCREW IF REQUIRED

1шт.

4

A47312

COUPLING, BREAK AWAY

COUPLING - drive, gear pump to piston pump

1шт.

5

F98069

O-RING

- sealing (In kit A49833)

1шт.

6

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - piston section (See Figure 8-10 and 8-12)

1шт.

7

REF

INSTRUCTION

COMPENSATOR ASSEMBLY - pump (See Figure 8-16)

1шт.

8

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW, Hex Soc Hd, #10-24 x 1 1/4"

4шт.

9

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

(in Kit A49833) -011, 90 Duro, .301" ID x .070" Thk

1шт.

10

A49436

GASKET

- compensator mounting (In kit A49833)

1шт.

11

1342787C1

GASKET

- pump mounting (Replaces A141828)

1шт.

12

A160002

STUD

- mounting, pump

2шт.

13

A75865

WASHER

- hardened

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

15

REF

INSTRUCTION

VALVE - priority flow control (See Figure 8-18)

1шт.

A49833

SEAL

KIT - pump repair (Order components), Includes: Ref. 26 - 37

1шт.

26

F98069

O-RING

- gear pump to piston pump

1шт.

27

A49436

GASKET

- compensator (Not used on this pump)

1шт.

28

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

29

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

30

A47280

GASKET,0.53mm Thk

- housing

1шт.

31

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

33

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

34

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

35

A47480

SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk

- oil (Not used on this pump)

1шт.

36

A49435

O-RING

- sensing plug

1шт.

37

A49436

GASKET

- compensator mounting

1шт.
