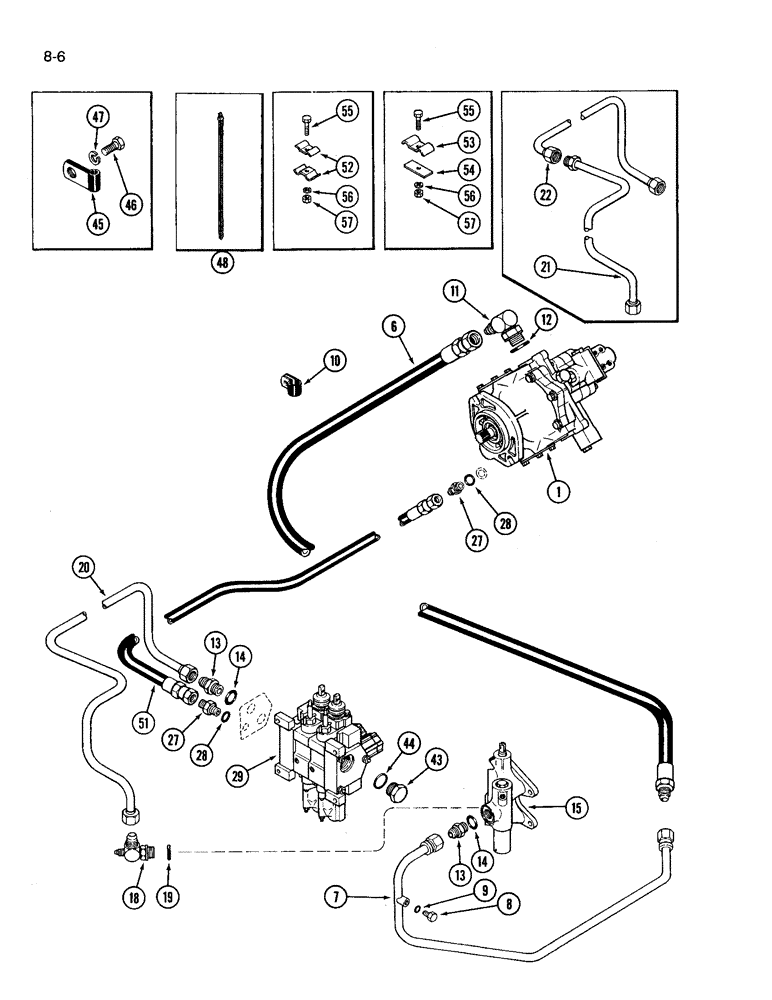

Запчасти Case IH 3394 (8-06) - HYDRAULICS, GEAR, PISTON PUMP AND HYDRAULIC LINES, WITHOUT HITCH (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP - gear and piston (See Figure 8-08)

1шт.

6

D42600

HOSE

- regulator valve

1шт.

7

A181861

TUBE

- pump to regulator valve

1шт.

8

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 9 Hex Hd, 7/16"-20 ORB

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

T50103

CLAMP

- tube

1шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring, Includes: Ref. 12

1шт.

12

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 1/64 inch

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

REF

INSTRUCTION

VALVE - PTO regulator (See Figure 6-82 or 6-84)

1шт.

18

218-5578

TEE,9/19/16"-18, 37 Degree x 1 1/16"-12, O-Ring Run

- 1-1/16-12 flare branch x adj O-ring x 9/16-18 inch flare, Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

REF

INSTRUCTION

TUBE - regulator valve (Order Ref 21 and 22)

1шт.

21

A162498

TUBE

- tee to tube (Service only)

1шт.

22

A162499

TUBE

- tube to remote valve (Service only)

1шт.

27

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 28

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

29

REF

INSTRUCTION

VALVE - remote (See Figure 8-42 or 8-44)

1шт.

43

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 44 Hex Hd, 1 1/16"-12 ORB

1шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

45

49839

CLAMP

- tube

2шт.

46

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

47

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

51

A177471

HOSE,6.35 mm ID x 991.00 mm, SAE 100R1

load sensing 6.35 mm ID x 991.00 mm, SAE 100R1

1шт.

52

NLS

NO LONGER SERVICED

- tube

4шт.

53

A57740

CLAMP

- tube

2шт.

54

A60864

PLATE

- tube clamp

2шт.

55

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

56

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

57

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, grade 5

4шт.
