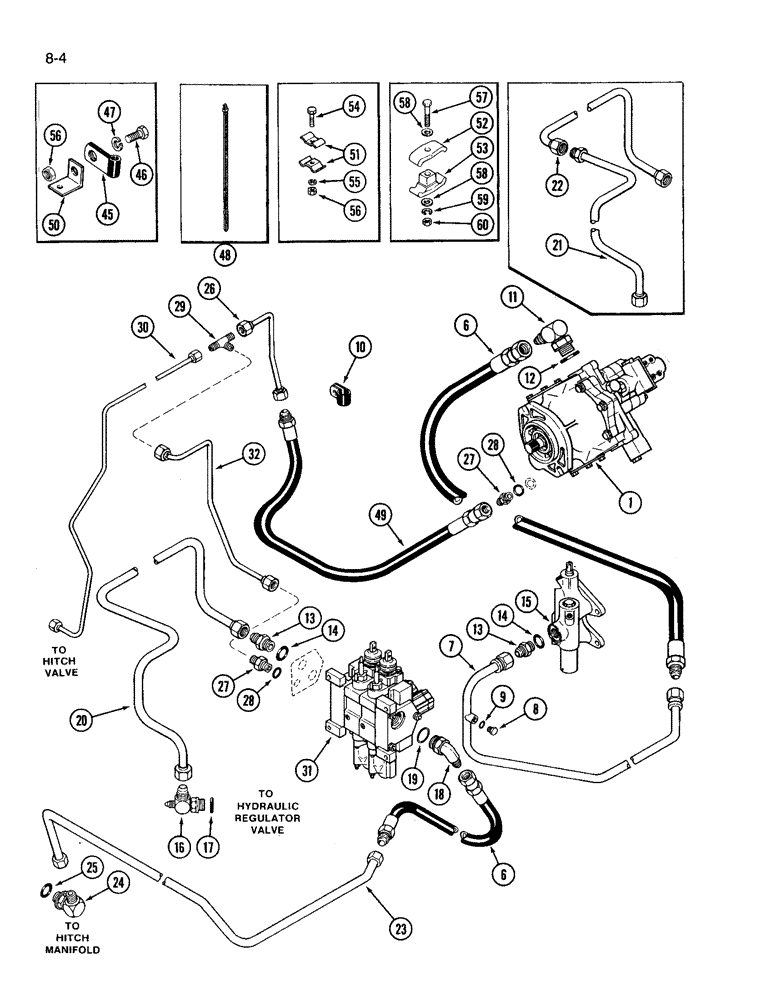

Запчасти Case IH 3394 (8-04) - HYDRAULICS, GEAR, PISTON PUMP AND HYDRAULIC LINES, WITH HITCH (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP - gear and piston (See Figure 8-08)

1шт.

6

D42600

HOSE

- hydraulic

2шт.

7

A181861

TUBE

- pump to regulator valve

1шт.

8

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 9 Hex Hd, 7/16"-20 ORB

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

T50103

CLAMP

- tube

1шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring, Includes: Ref. 12

1шт.

12

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 1/64 inch

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

REF

INSTRUCTION

VALVE - PTO regulator (See Figure 6-82 or 6-84)

1шт.

16

218-5578

TEE,9/19/16"-18, 37 Degree x 1 1/16"-12, O-Ring Run

- 1-1/16-12 flare branch x adj O-ring x 9/16-18 inch fl, Includes: Ref. 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

REF

INSTRUCTION

TUBE - remote valve (Order Ref 21 and 22)

1шт.

21

A162498

TUBE

- tee to tube (Service only)

1шт.

22

A162499

TUBE

- tube to remote valve (Service only)

1шт.

23

A185532

TUBE

- remote to hitch (Replaces A181665)

1шт.

24

A181670

ELBOW,90 Degree, 1 1/16"-12 37 Degree x 7/8"-14, O-Ring

90 degree, 7/8 NF x 1-1/16 inch NF, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

A185066

TUBE

- pump pilot to tee (Replaces A180107)

1шт.

27

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 28

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

29

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

1шт.

30

NSS

NOT SOLD SEPARAT

- tee to hitch manifold, pilot

1шт.

31

REF

INSTRUCTION

VALVE - remote (see Figure 8-42 or 8-44)

1шт.

32

A180108

TUBE ASSY.

TUBE - remote valve, Serial Range: pilot-tee

1шт.

45

49852

PTO SHAFT

- tube

2шт.

46

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

47

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

49

H171017

HYDRAULIC HOSE,6.35 mm ID x 1016.00 mm, SAE 100R1

Pump Pilot 6.35 mm ID x 1016.00 mm, SAE 100R1

1шт.

50

A162527

BRACKET

- clamp

1шт.

51

NLS

NO LONGER SERVICED

- tube

4шт.

52

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

- tube, cap

2шт.

53

D124301

CLAMP,3/4" ID

- tube

2шт.

54

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

55

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

56

425-105

NUT,5/16"-18, G5

3шт.

57

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

58

95-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

4шт.

59

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

60

425-106

NUT,3/8"-16, Cl 5

2шт.
