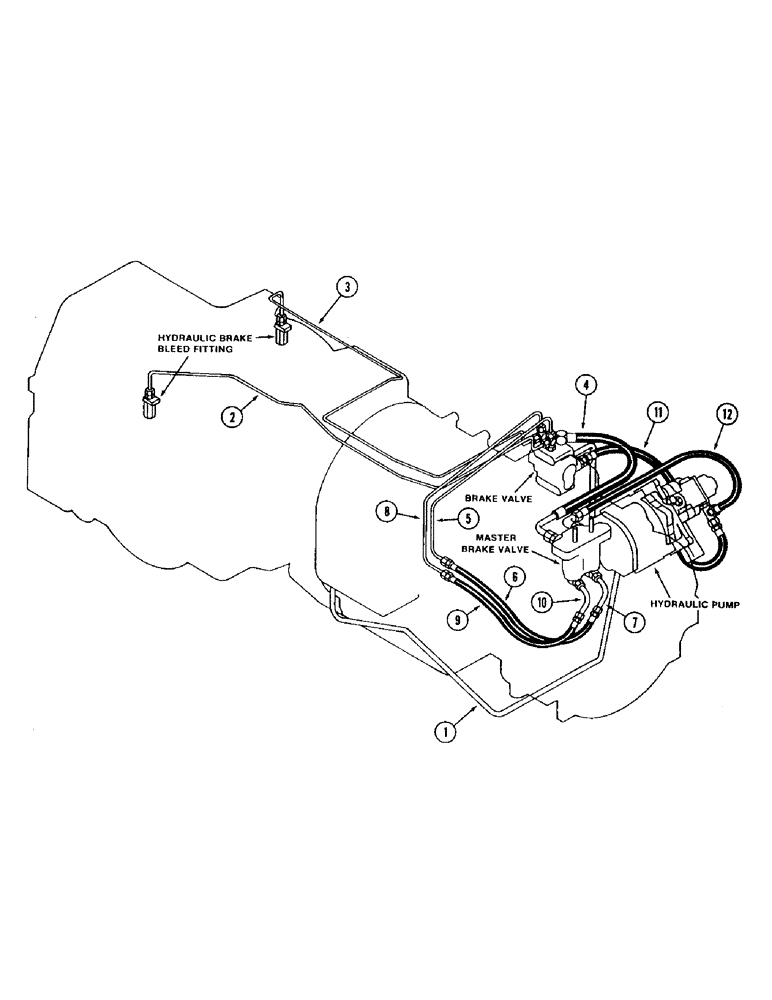

Запчасти Case IH 3394 (1-14) - PICTORIAL INDEX, BRAKE HYDRAULICS (00) - PICTORIAL INDEX
10
12
7
1
3
11
9
6
5
2
4
8
№
Артикул
Название
Примечание
Количество
1
Brake valve to sump tube, Page 5-9
1шт.
2
Right rear brake tube, Page 7-5
1шт.
3
Left rear brake tube, Page 7-5
1шт.
4
Brake valve to master brake valve hose, Page 7-5
1шт.
5
Right front brake tube, Page 7-5
1шт.
6
Right front brake hose, Page 7-5
1шт.
7
Right front brake stub tube, Page 7-5
1шт.
8
Left front brake tube, Page 7-5
1шт.
9
Left front brake hose, Page 7-5
1шт.
10
Left front brake stub tube, Page 7-5
1шт.
11
Brake valve to pump hose, Page 7-5
1шт.
12
Master brake valve to pump hose, Page 7-5
1шт.
Выбрано товаров: 12
