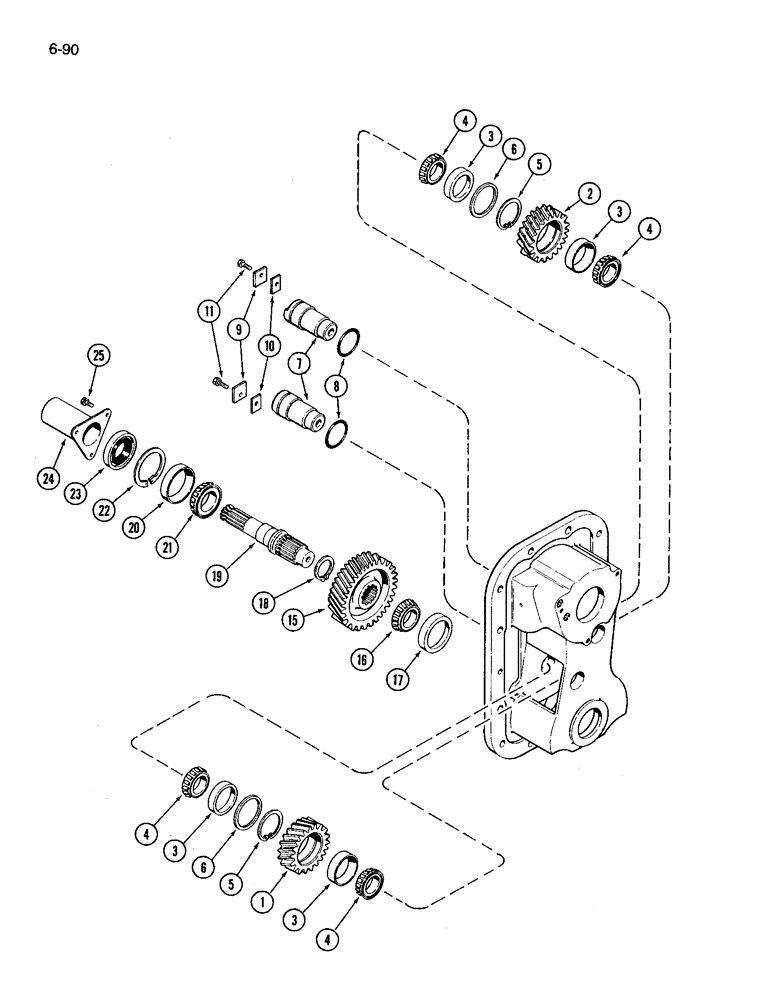

Запчасти Case IH 3394 (6-90) - PTO IDLERS AND OUTPUT SHAFT (06) - POWER TRAIN

1

A142592

GEAR

- PTO idler, left

1шт.

2

A142591

GEAR

- PTO idler, right (With identification groove)

1шт.

3

130503H

BEARING CUP

CUP - bearing

4шт.

4

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

CONE - bearing

4шт.

5

100-21325

SNAP RING,3.25", Int, #325

Ring, Snap, 3.25", Int, #325

2шт.

6

A142667

SPACER

- bearing

2шт.

7

A142593

PIN,57.07mm OD x 119.58mm L

- PTO idler gear

2шт.

8

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

Part of PTO clutch and brake seal kit P/N A49396

1шт.

9

A136233

RETAINER

- idler pins

2шт.

10

A136315

SHIM,.0050" Thk

Retainer .0050" Thk

1шт.

10

A136316

SHIM,.0070" Thk

Retainer .0070" Thk

1шт.

10

A136317

SHIM,.010" Thk

Retainer .010" Thk

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

15

A138186

GEAR

- PTO output

1шт.

16

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing

1шт.

17

ST877

BEARING CUP,85mm OD x 17.46mm W

CUP - bearing

1шт.

18

A142923

SNAP RING,#206, Ext

Ring, Snap, #206, Ext

1шт.

19

A148833

SHAFT

- output

1шт.

20

ST970

BEARING SET,88.92mm OD x 16.56mm W

CUP - bearing

1шт.

21

298029R91

BEARING ASSY,47.63mm ID x 22.23mm W

CONE - bearing

1шт.

22

A151628

RING

- retaining, output shaft, 0.074 inch

1шт.

22

A151471

RING

- retaining, output shaft, 0.078 inch

1шт.

22

A151470

RING

- retaining, output shaft, 0.082 inch

1шт.

22

A151235

RING

- retaining, output shaft, 0.086 inch

1шт.

22

A142636

RING

- retaining, output shaft, 0.090 inch

1шт.

22

A142635

RING

- retaining, output shaft, 0.094 inch

1шт.

22

A142634

RING

- retaining, output shaft, 0.098 inch

1шт.

22

A142637

RING

- retaining, output shaft, 0.102 inch

1шт.

22

A148193

RING

- retaining, output shaft, 0.108 inch

1шт.

22

D38774

SNAP RING,3.50", Int, #350

Ring, Snap, , output shaft, 0.109 inch 3.50", Int, #350

1шт.

23

A142927

OIL SEAL,47.63mm ID x 89.08mm OD x 13.08mm Thk

- oil, output shaft

1шт.

Part of PTO clutch and brake seal kit P/N A49396

1шт.

24

A142641

GUARD

- PTO output shaft

1шт.

25

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

3шт.

A49396

SEAL

KIT - PTO clutch and brake, Includes: Ref. 8 and 23 on Figure 6-90 and 3, 13, 17, 18, 37, 38, 39, and 40 on Figure 6-88

1шт.
