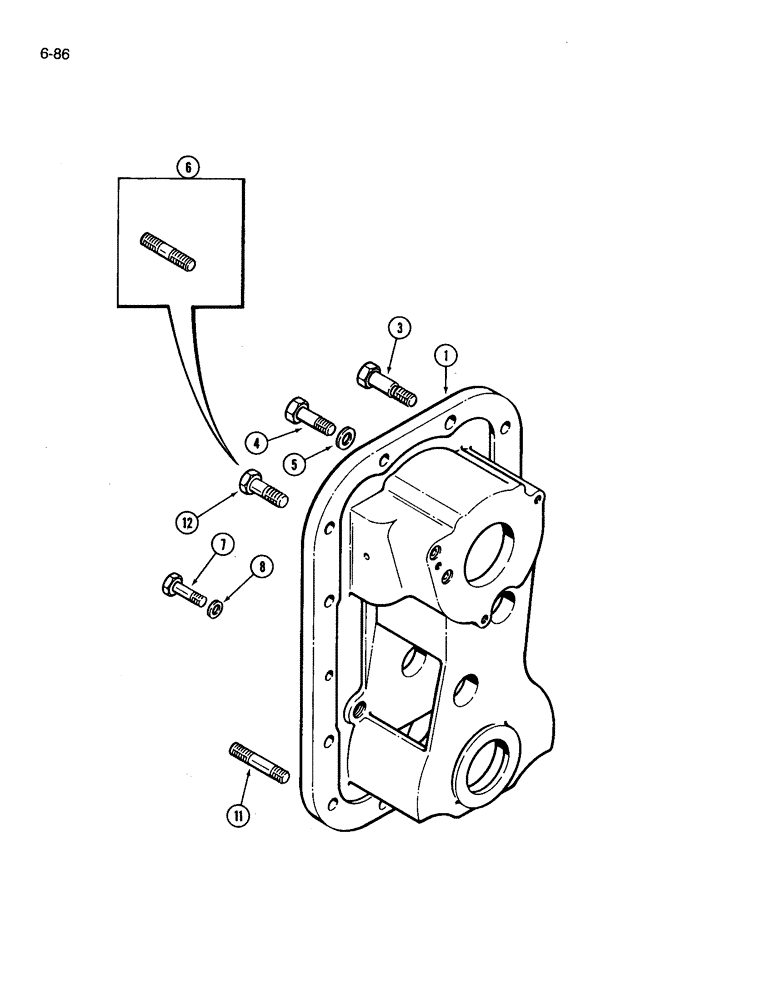

Запчасти Case IH 3394 (6-86) - PTO HOUSING (06) - POWER TRAIN

1

A153698

HOUSING

- PTO

1шт.

3

A63255

STEP BOLT

BOLT - dowel, housing locating

1шт.

4

26-1034

BOLT,Hex, 5/8" - 11 x 2-1/8", Gr 8

- hex, 5/8 NC x 2-1/8 inch

1шт.

5

A64303

WASHER

- flat, hardened steel

1шт.

6

REF

INSTRUCTION

STUD - 5/8 NC x 3-1/4 inch (Order Ref 12)

2шт.

7

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- hex, 1/2 NC x 1-7/8 inch

2шт.

8

A150672

WASHER

- flat, hardened, 1/2 x 1 x 3/32 inch

2шт.

11

A64109

STUD

- 5/8 NC x 3-1/2 inch

6шт.

12

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

w/o hitch Hex, 5/8"-11 x 2", G8

4шт.

12

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8 (With hitch)

4шт.
