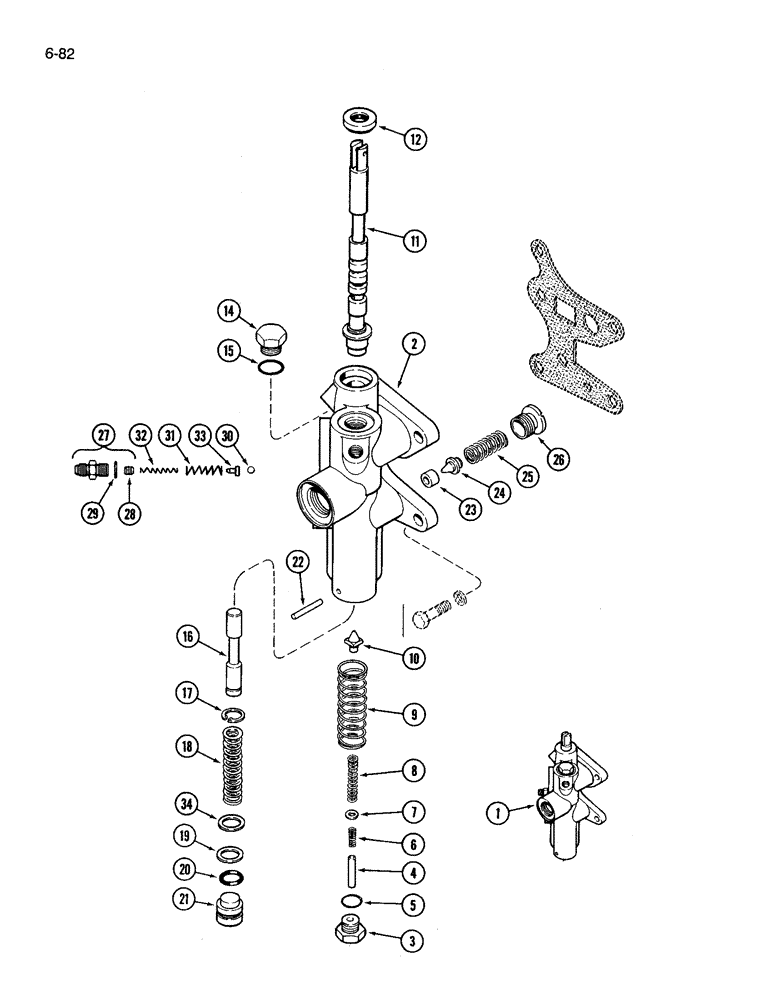

Запчасти Case IH 3394 (6-82) - G107966 PTO CONTROL VALVE (06) - POWER TRAIN

1

G107966

CHECK VALVE

VALVE ASSEMBLY - PTO control (Order valve G110274), Includes: Ref. 2 - 34

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

G107958

PLUG

ASSEMBLY - modulator, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG - modulator

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - spring guide

1шт.

5

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 1/64 inch

1шт.

6

G107969

SPRING

- modulator, secondary

1шт.

7

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

8

G109048

SPRING

- modulator, primary

1шт.

9

A139739

SPRING

- return

1шт.

Order one each of the following springs, G109868, G109662 and G109663.

1шт.

10

A61991

POINT

- modulator

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - PTO control (Order valve G110274)

1шт.

12

G105700

OIL SEAL

- oil

1шт.

14

214389

PLUG,3/4" - 16 ORB

Includes Ref. 15 Hex Hd, 3/4"-16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL - regulating (Order valve G110274)

1шт.

17

A60273

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

18

G109129

SPRING

- regulator spool

1шт.

19

A149281

SHIM

- regulator spring, 1/64 inch

1шт.

20

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

21

A149282

PLUG

- regulator spool

1шт.

22

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

23

A60686

SEAT

- relief valve

1шт.

24

A60687

VALVE POPPET

POPPET - relief valve

1шт.

25

G109164

SPRING

- relief valve

1шт.

26

A63356

PLUG

- relief spring

1шт.

27

G109024

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - PTO valve detent, Includes: Ref. 28 and 29

1шт.

28

A160657

SET SCREW,3/8" - 16

- adjusting

1шт.

30

211-211

BALL,13/32" Dia

- 13/32 inch, grade 200, chrome alloy steel

1шт.

31

G109025

SPRING

- detent, outer

1шт.

Order one each of the following springs, G109868, G109662 and G109663.

1шт.

32

G109026

SPRING

- detent, inner

1шт.

Order one each of the following springs, G109868, G109662 and G109663.

1шт.

33

G109022

AXLE PIN

PIN - guide, detent spring

1шт.

34

G109428

SHIM,.0950" Thk

Regulator spring .0950" Thk

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
