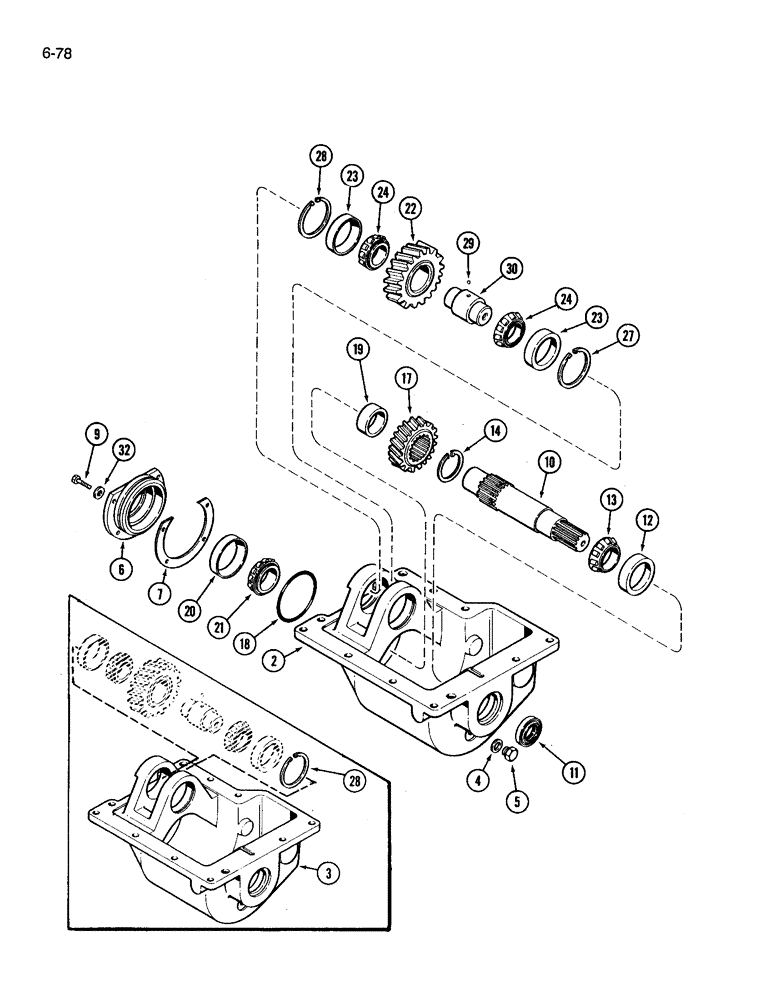

Запчасти Case IH 3394 (6-78) - TRANSFER GEARBOX (06) - POWER TRAIN

A179368

GEARBOX ASSY

GEARBOX ASSEMBLY - transfer, Includes: Ref. 2 - 31

1шт.

2

A182204

HOUSING

- gearbox (With front and rear retaining ring grooves)

1шт.

3

A179298

HOUSING

- gearbox (With front retaining ring groove only) (Order A182204)

1шт.

4

A58608

GASKET

- drain plug

1шт.

5

A140222

PLUG

- drain

1шт.

6

A179180

RETAINER

- output shaft, rear

1шт.

7

A179246

SHIM,0.051mm Thk

Bearing retainer (0.002") 0.051mm Thk

1шт.

7

A179247

SHIM,0.254mm Thk

Bearing retainer (0.010") 0.254mm Thk

1шт.

7

A179248

SHIM,0.508mm Thk

Bearing retainer (0.020") 0.508mm Thk

1шт.

9

26-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 8

- hex, 3/8 NC x 1-3/8 inch

4шт.

10

A179553

SHAFT

- output

1шт.

11

A182219

OIL SEAL

SEAL - oil, output shaft

1шт.

12

779160R1

BEARING, CUP

CUP - bearing

1шт.

13

A31264

ROLLER BEARING,1.625" ID x 1"

CONE - bearing

1шт.

14

F35283

SNAP RING,#231, Ext

Ring, Snap, #231, Ext

1шт.

17

A168606

GEAR

- output

1шт.

18

238-5245

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

1шт.

19

A182280

SPACER

- output gear

1шт.

20

376463C1

BEARING CUP

CUP - bearing

1шт.

21

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

CONE - bearing

1шт.

22

A168430

GEAR, IDLER

GEAR - idler

1шт.

23

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing

2шт.

24

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

CONE - bearing

2шт.

27

A151675

RING

- retaining, 0.086 inch standard

1шт.

28

A151678

RING

- retaining, spacer, 0.070 inch

1шт.

28

A151677

RING

- retaining, spacer, 0.076 inch

1шт.

28

A151676

RING

- retaining, spacer, 0.081 inch

1шт.

28

A151675

RING

- retaining, spacer, 0.086 inch

1шт.

28

A152246

RING

- retaining, spacer, 0.091 inch

1шт.

28

A152245

RING

- reatining, spacer, 0.096 inch

1шт.

28

A152244

RING

- retaining, spacer, 0.101 inch

1шт.

29

211-206

BALL,1/4" Dia

- 1/4 inch, grade 200, chrome alloy steel

1шт.

30

A179624

SHAFT

- idler gear

1шт.

31

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

4шт.
