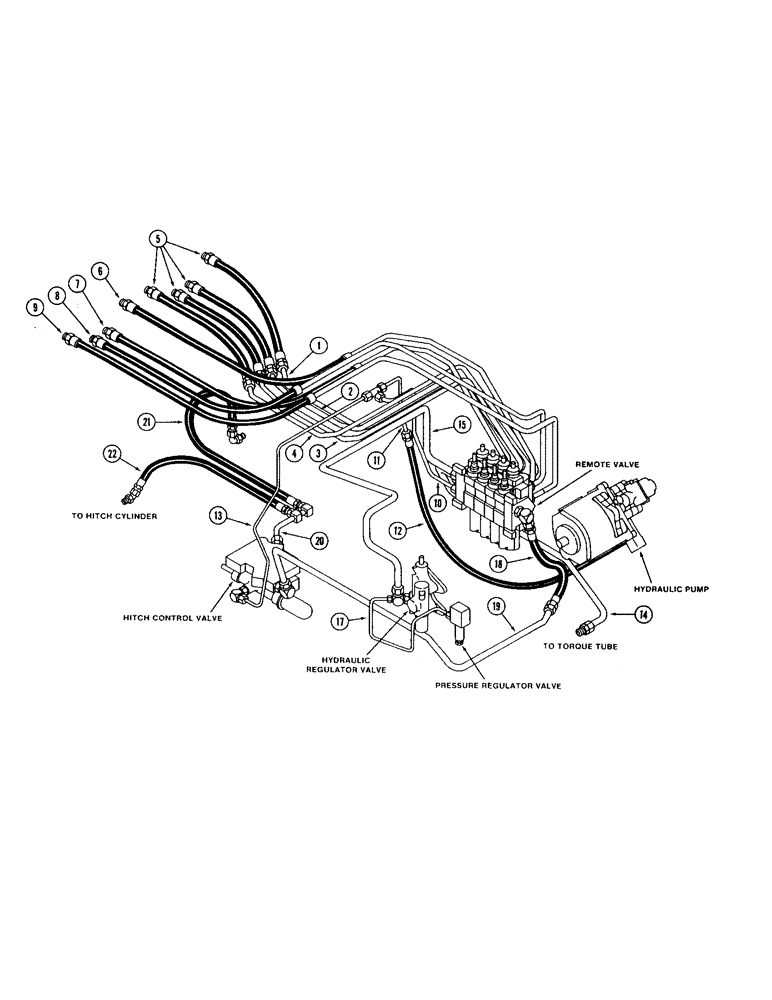

Запчасти Case IH 3394 (1-12) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX

1

Number one remote tube, Page 8-27, 8-31

1шт.

2

Number two remote tube, Page 8-27, 8-31

1шт.

3

Number three remote tube, Page 8-27, 8-31

1шт.

4

Number four remote tube, Page 8-27, 8-31

1шт.

5

Number one through four remote hose, Page 8-27, 8-31

1шт.

6

Number five remote tube and hose, Page 8-31, 8-35, 8-39

1шт.

7

Number six remote tube and hose, Page 8-31, 8-35, 8-39

1шт.

8

Number seven remote tube and hose, Page 8-35

1шт.

9

Number eight remote tube and hose, Page 8-35

1шт.

10

Remote valve pilot tube, Page 8-5

1шт.

11

Pump pilot tube, Page 8-5

1шт.

12

Pump pilot hose, Page 8-5

1шт.

13

Hitch valve pilot tube, Page 8-5

1шт.

14

Remote valve to sump tube, Page 8-27

1шт.

15

Remote valve to regulator valve tube, Page 8-5, 8-7

1шт.

17

Regulator valve supply tube, Page 8-83

1шт.

18

Remote valve to hitch valve hose, Page 8-5

1шт.

19

Remote valve to hitch valve tube, Page 8-5

1шт.

20

Hitch lift cylinder supply tube, Page 8-79

1шт.

21

Left lift cylinder hose, Page 8-79

1шт.

22

Right lift cylinder hose, Page 8-79

1шт.
