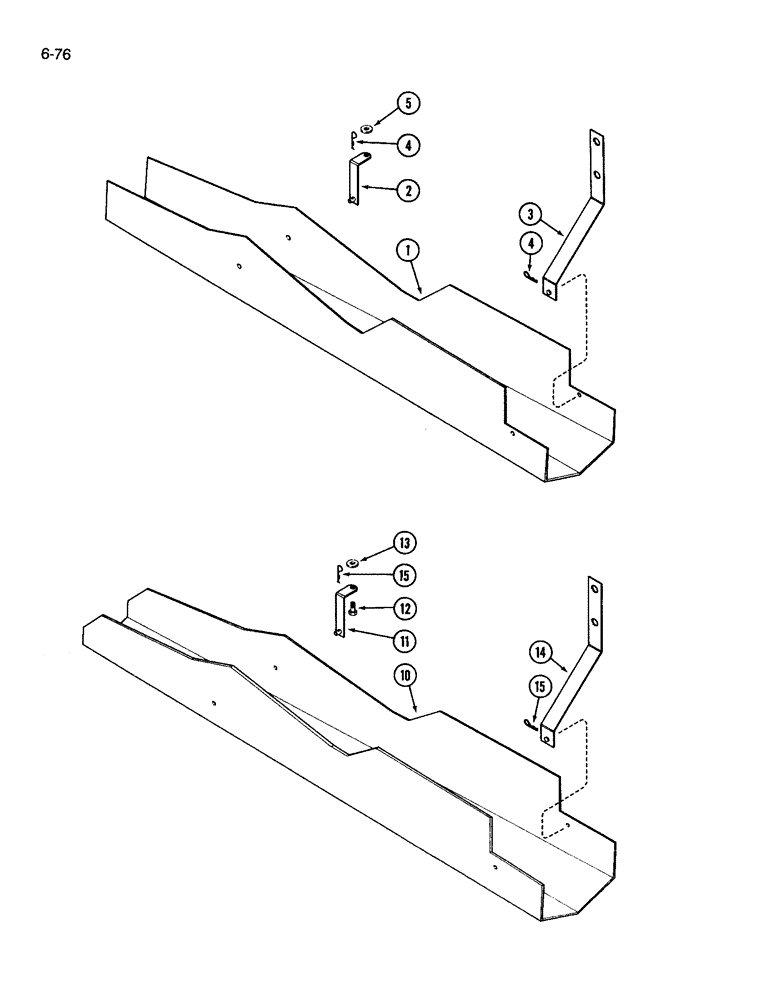

Запчасти Case IH 3394 (6-76) - DRIVESHAFT SHIELD (06) - POWER TRAIN

1

A181547

SHIELD

- drive shaft, 63-1/2 inch long

1шт.

2

A180811

SUPPORT

- shield, rear, 63-1/2 inch long

2шт.

3

A180813

SUPPORT

- shield, front, 63-1/2 inch long

2шт.

4

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - hair, 5/16 x 2-25/32 inch, 63-1/2 inch long

4шт.

5

A50820

WASHER

- hardened, 3/8 x 3/4 inch, 63-1/2 inch long

2шт.

10

A185703

SHIELD

- driveshaft, 66-3/8 inch long

1шт.

11

A185732

SUPPORT

- shield, rear, 66-3/8 inch long

2шт.

12

413-692

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

- hex, 3/8 NC x 3/4 inch, 66-3/8 inch long

2шт.

13

A50820

WASHER

- hardened, 3/8 x 3/4 inch, 66-3/8 inch long

2шт.

14

A185734

SUPPORT

- shield, front, 66-3/8 inch long

2шт.

15

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - hair, 5/16 x 2-25/32 inch, 66-3/8 inch long

4шт.
