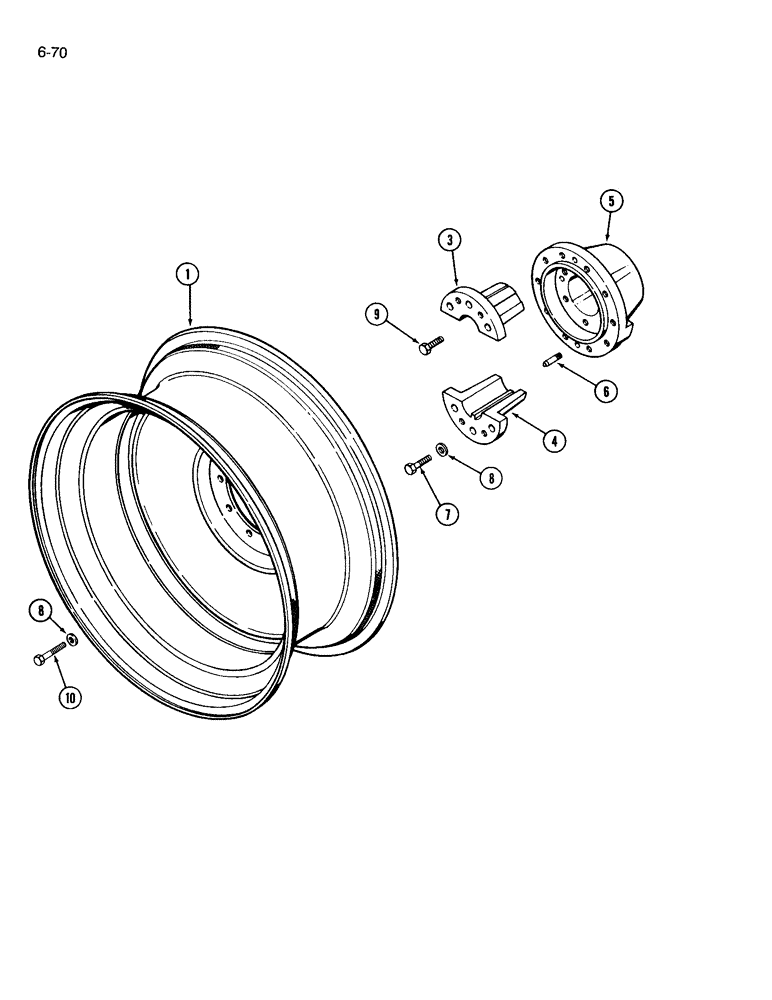

Запчасти Case IH 3394 (6-70) - DUAL REAR WHEELS, 38 AND 42 INCH STEEL RIMS, 10 BOLT (06) - POWER TRAIN

1

139266C1

WHEEL

- steel (Used with 18.4 x 38 tire)(Replaces A181309)

2шт.

1

139267C1

WHEEL

- steel (used with 20.8 x 38 tire)(Replaces A181310)

2шт.

1

1270783C1

RIM

WHEEL - steel (Used with 18.4 x 42 tire)(Replaces A181311)

2шт.

1

1334333C1

RIM

WHEEL - steel (Used with 20.8 x 42 tire)(Replaces A181314)

2шт.

A67642

KIT - dual hub (For 3-7/8 inch OD axle)(Order components), Includes: Ref. 3 - 10

2шт.

3

A187155

BUSHING

- hub, 3-7/8 inch ID (Replaces A180920)

2шт.

4

A187156

BUSHING

- hub, keyed, 3-7/8 inch ID (Replaces A180919)

2шт.

5

A180916

HUB

- wheel, 10 bolt

2шт.

6

A181315

GUIDE PIN

PIN - guide, tapered (If required)

2шт.

7

426-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8

- hex, 7/8 NC x 3-1/2 inch, grade 8

12шт.

8

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch, hardened

32шт.

9

113-839

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8, Full Thd

8шт.

10

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- hex, 7/8 NC x 2 inch, grade 8

20шт.
