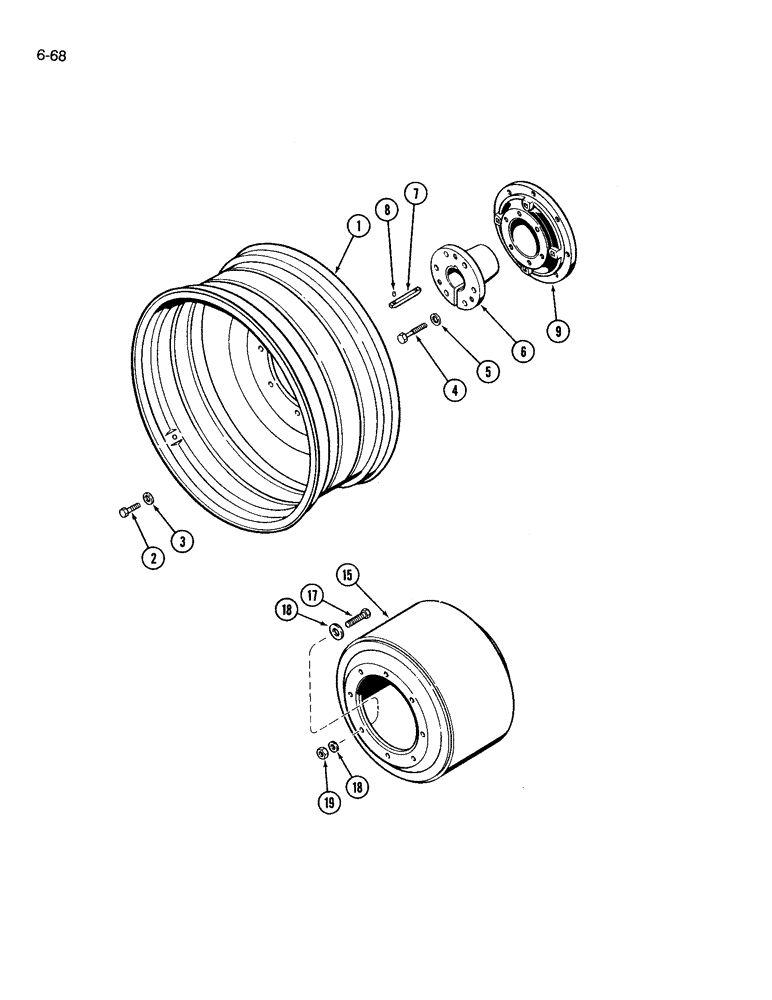

Запчасти Case IH 3394 (6-68) - DUAL REAR WHEELS, STEEL WITH 42 INCH RIMS (06) - POWER TRAIN

A67441

ATTACHMENT - wheel (Used with 18.4 x 42 tire)(Machinery item), Includes: Ref. 1 - 3

1шт.

A67442

ATTACHMENT - wheel (Used with 20.8 x 42 tire)(Machinery item), Includes: Ref. 1 - 3

1шт.

A67571

ATTACHMENT - wheel (Used with 18.4 x 42 tire)(Machinery item), Includes: Ref. 1 - 3

1шт.

A67574

ATTACHMENT - wheel (Used with 20.8 x 42 tire)(Machinery item), Includes: Ref. 1 - 3

1шт.

A67638

ATTACHMENT - wheel (Used with 18.4 x 42 tire)(Machinery item), Includes: Ref. 1 - 3

1шт.

A67640

ATTACHMENT - wheel (Used with 20.8 x 42 tire)(Machinery item), Includes: Ref. 1 - 3

1шт.

1

A160414

WHEEL

- steel (Used with 18.4 x 42 tire)

2шт.

1

A160415

WHEEL

- steel (Used with 20.8 x 42 tire)

2шт.

2

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

16шт.

3

D31328

WASHER

- flat, 3/4 inch

16шт.

4

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, 3/4 NC x 4-1/2 inch

12шт.

5

D31328

WASHER

- flat, 3/4 inch

12шт.

6

A63805

BUSHING

- wheel, 3-7/8 inch ID

2шт.

7

A63219

KEY

- axle, 3/4 x 6 inch

2шт.

8

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

9

A145322

HUB

- wheel, tapered

2шт.

15

A149059

BUSHING

SPACER - dual wheel

2шт.

17

1348513C1

BOLT

- hex, 3/4 NC x 2-1/4 inch, Grade 8

16шт.

18

D31328

WASHER

- flat, 3/4 inch

32шт.

19

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

16шт.
