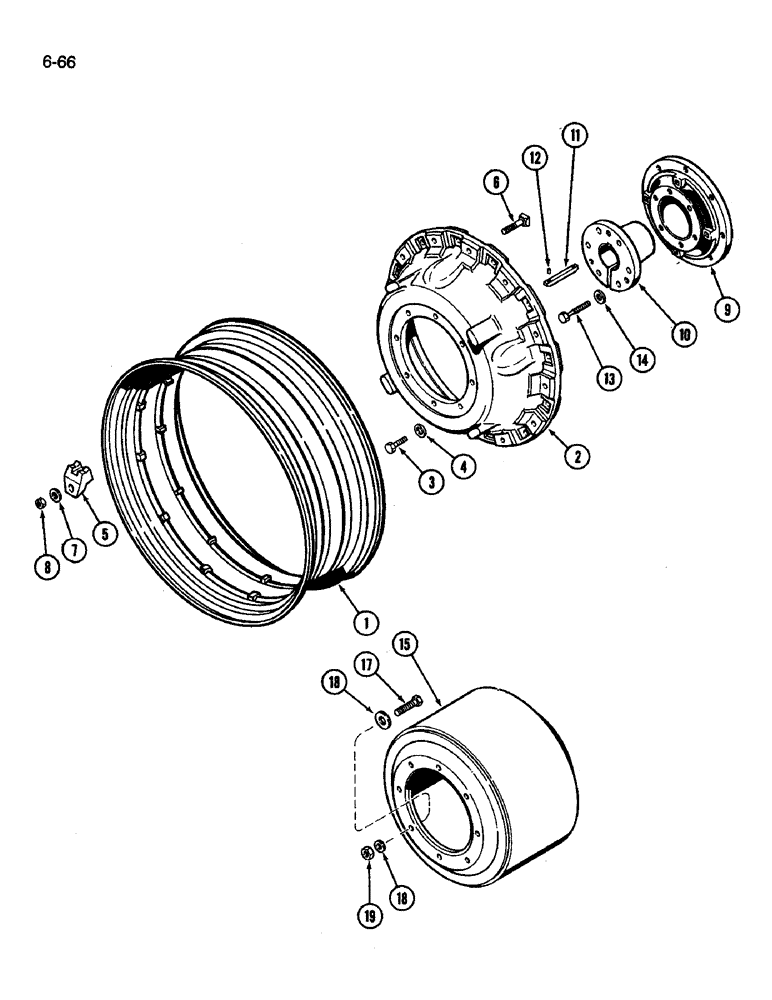

Запчасти Case IH 3394 (6-66) - DUAL REAR WHEELS, CAST WITH 42 INCH RIMS (06) - POWER TRAIN

A67524

ATTACHMENT - wheel (Used with 18.4 x 42 tire)(Mahinery item), Includes: Ref. 1 - 8

1шт.

A67570

ATTACHMENT - wheel (Used with 18.4 x 42 tire)(Mahinery item), Includes: Ref. 1 - 8

1шт.

A67634

ATTACHMENT - wheel (Used with 18.4 x 42 tire)(Mahinery item), Includes: Ref. 1 - 8

1шт.

A67636

ATTACHMENT - wheel (Used with 20.8 x 42 tire)(Mahinery item), Includes: Ref. 1 - 8

1шт.

A67573

ATTACHMENT - wheel (Used with 20.8 x 42 tire)(Mahinery item), Includes: Ref. 1 - 8

1шт.

A67572

ATTACHMENT - wheel (Used with 20.8 x 42 tire)(Mahinery item), Includes: Ref. 1 - 8

1шт.

1

A160973

RIM

- wheel (Used with 18.4 x 42 tire)

2шт.

1

A160974

RIM

RIM - wheel (Used with 20.8 x 42 tire)

2шт.

2

A145464

WHEEL

- rear

2шт.

3

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

16шт.

4

D31328

WASHER

- flat, 3/4 inch

16шт.

5

A57654

CLAMP

- adjusting, double ramp

24шт.

6

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch, grade 5

24шт.

7

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- flat, wheel

24шт.

8

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

24шт.

9

A145322

HUB

- wheel, tapered

2шт.

10

A63805

BUSHING

- wheel, 3-7/8 inch ID

2шт.

11

A63219

KEY

- axle, 3/4 x 6 inch

2шт.

12

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

13

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, 3/4 NC x 4-1/2 inch

12шт.

14

D31328

WASHER

- flat, 3/4 inch

12шт.

15

A149059

BUSHING

SPACER - dual wheel

2шт.

17

1348513C1

BOLT

- hex, 3/4 NC x 2-1/4 inch, Grade 8

16шт.

18

D31328

WASHER

- flat, 3/4 inch

32шт.

19

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

16шт.
