(6-54) - REAR WHEELS, CAST/STAMPED WITH 32 INCH RIMS

Запчасти Case IH 3394 (6-54) - REAR WHEELS, CAST/STAMPED WITH 32 INCH RIMS (06) - POWER TRAIN

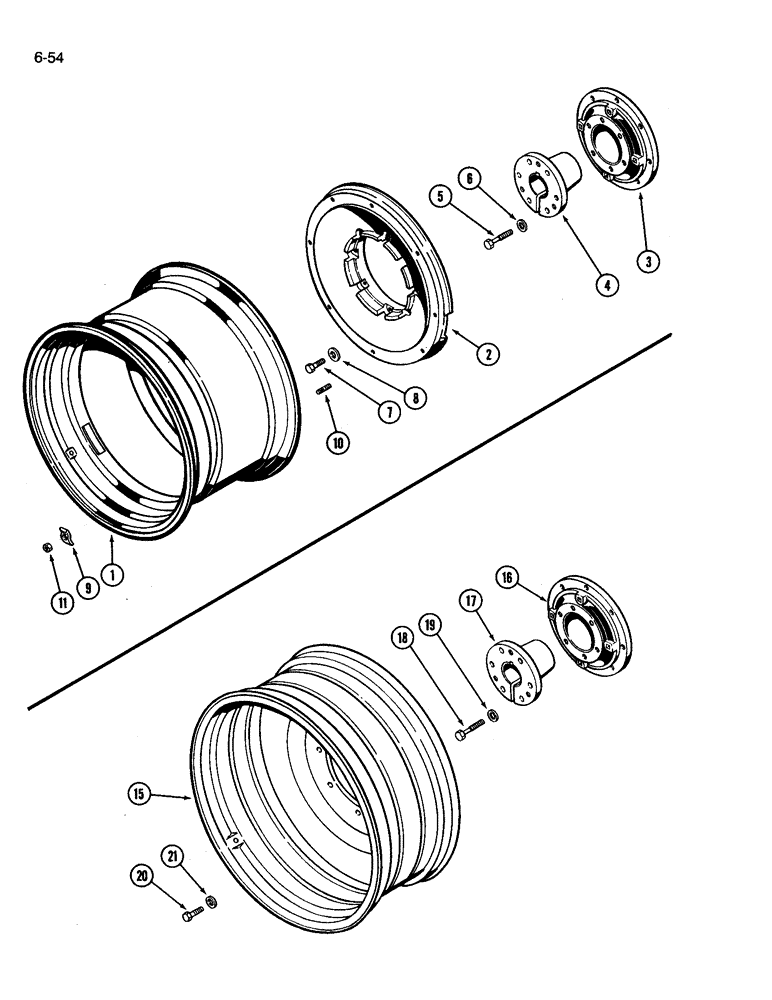

Схема запчастей Case IH 3394 - (6-54) - REAR WHEELS, CAST/STAMPED WITH 32 INCH RIMS (06) - POWER TRAIN
11
3
10
5
8
21
9
18
7
20
17
6
4
19
2
15
16
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A63807

RIM

- rear wheel (Used with 24.5 x 32 tire), cast

2шт.

2

A145461

FLANGE

WHEEL - rear

2шт.

3

A145322

HUB

- wheel, tapered

2шт.

4

A63805

BUSHING

- wheel, 3-7/8 inch ID

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, 3/4 NC x 4-1/2 inch

12шт.

6

D31328

WASHER

- flat, 3/4 inch

12шт.

7

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, Grade 8

16шт.

8

D31328

WASHER

- flat, 3/4 inch

16шт.

9

A166501

CLAMP

-, Serial Range: wheel-rim

16шт.

10

A60047

STUD

- clamp, Serial Range: rim-wheel

16шт.

11

A27183

NUT

- hex, 5/8 inch NC

16шт.

15

A145462

RIM

- rear wheel (Used with 30.5 x 32 tire), stamped with 32 inch

2шт.

16

A145322

HUB

- wheel, tapered

2шт.

17

A63805

BUSHING

- wheel, 3-7/8 inch ID

2шт.

18

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, 3/4 NC x 4-1/2 inch

12шт.

19

D31328

WASHER

- flat, 3/4 inch

12шт.

20

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, Grade 8

16шт.

21

D31328

WASHER

- flat, 3/4 inch

16шт.
