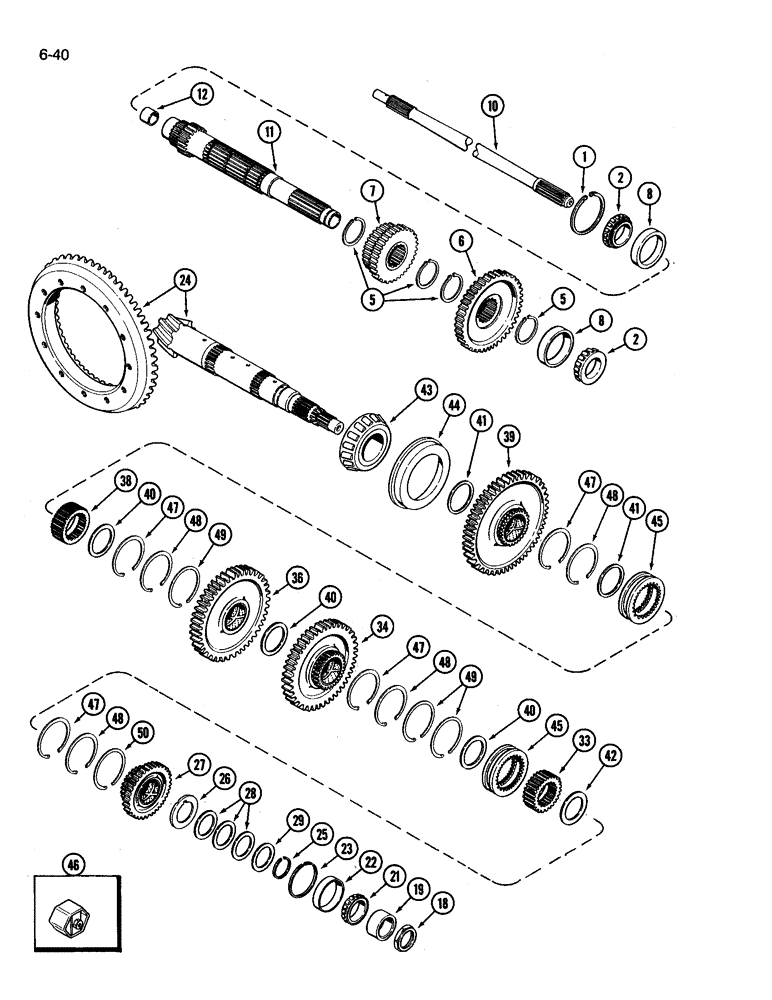

Запчасти Case IH 3394 (6-40) - TRANSMISSION, PLANETARY OUTPUT (06) - POWER TRAIN

1

A156868

RING, SNAP

RING - retaining, 0.131 inch (Black), planetary output

1шт.

1

A168769

RING

- retaining, 0.089 inch (Orange), planetary output

1шт.

1

A168768

OIL SEAL

RING - retaining, 0.095 inch (Pink), planetary output

1шт.

1

A156833

RING, SNAP

RING - retaining, 0.101 inch (Yellow). planetary output

1шт.

1

A156834

RING, SNAP

RING - retaining, 0.107 inch (Red), planetary output

1шт.

1

A156835

RING, SNAP

RING - retaining, 0.113 inch (Dark Green), planetary output

1шт.

1

A156836

RING, SNAP

RING - retaining, 0.119 inch (White), planetary output

1шт.

1

A156837

RING, SNAP

RING - retaining, 0.125 inch (Blue), planetary output

1шт.

1

A156869

RING, SNAP

RING - retaining, 0.137 inch (Light Green), planetary output

1шт.

2

A30494

CONE

- bearing, planetary shaft, output

2шт.

5

A63115

SNAP RING,#255, Ext

Ring, Snap, , planetary output shaft #255, Ext

4шт.

6

A168982

SCREW

GEAR - driver, fourth, planetary output shaft

1шт.

7

A156831

GEAR

- drive, second and third (Replaces A182205), planetary output shaft

1шт.

8

A30308

ROLLER BEARING,98.450 mm OD x 17.826 mm

CUP - bearing, planetary shaft

2шт.

10

A152396

SHAFT

- power output

1шт.

11

A168983

SHAFT

ASSEMBLY - planetary output (Replaces A182225), Includes: Ref. 12

1шт.

12

A76228

BUSHING,34.87mm ID x 41.31mm OD x 25.4mm L

- input shaft support, countershaft

1шт.

18

A168038

NUT

- adjusting, countershaft

1шт.

19

A168585

SPACER

- bearing to nut, countershaft

1шт.

21

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, countershaft

1шт.

22

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - bearing, countershaft

1шт.

23

A31253

RING, SNAP

RING - retaining, countershaft

1шт.

24

A168435

GEAR-SET

GEAR SET - pinion and spiral bevel (Matched set), countershaft

1шт.

25

A32413

SNAP RING,#212, 1.997", Ext

RING - retaining, countershaft

1шт.

26

A150536

COLLAR

- pinion locating, countershaft

1шт.

27

A182354

GEAR

ASSEMBLY - driven, fourth (Includes bushing) (Replaces A157414), countershaft

1шт.

28

A150537

SHIM

- countershaft 0.002 inch

1шт.

28

A150538

SHIM

- countershaft 0.006 inch

1шт.

28

A150539

SHIM

- countershaft 0.010 inch

1шт.

29

A150540

WASHER

- shim backup, countershaft

1шт.

33

A140028

HUB

- shaft, splined pinion, third and fourth, countershaft

1шт.

34

A182314

GEAR

ASSEMBLY - driven, third (Includes bushing), countershaft

1шт.

36

A182312

GEAR

ASSEMBLY - driven, second (Includes bushing), countershaft

1шт.

38

A140024

HUB

- shaft, splined pinion, first and second, countershaft

1шт.

39

A179968

GEAR

ASSEMBLY - driven, first (Includes bushing) (replaces A157420), countershaft

1шт.

40

A144342

WASHER,70.36mm ID x 89.41mm OD x 0.84mm Thk

- gear thrust, countershaft

3шт.

41

A144341

WASHER

- gear thrust, countershaft

2шт.

42

A144343

WASHER

- gear thrust, countershaft

1шт.

43

A63089

ROLLER BEARING,76.2mm ID x 46.11mm W

CONE - bearing, countershaft

1шт.

44

A63088

ROLLER BEARING,171.47mm OD x 31.75mm W

CUP - bearing, countershaft

1шт.

45

A157410

COLLAR

- sliding (Replaces A182210), countershaft

2шт.

46

A43109

SOCKET/RECEPTACLE

SOCKET - countershaft nut (Service tool)

1шт.

47

R30570

SNAP RING,3.75", Int, #375

RING - retaining, 2.77 mm, countershaft

4шт.

48

A182776

RING, SNAP

RING - retaining, 2.23 mm, (Color code Yellow), countershaft

4шт.

49

A168768

OIL SEAL

RING - retaining, 0.095 inch (Color code Pink), countershaft

3шт.

50

A156837

RING, SNAP

RING - retaining, 0.125 inch (Color code Blue), countershaft

1шт.
