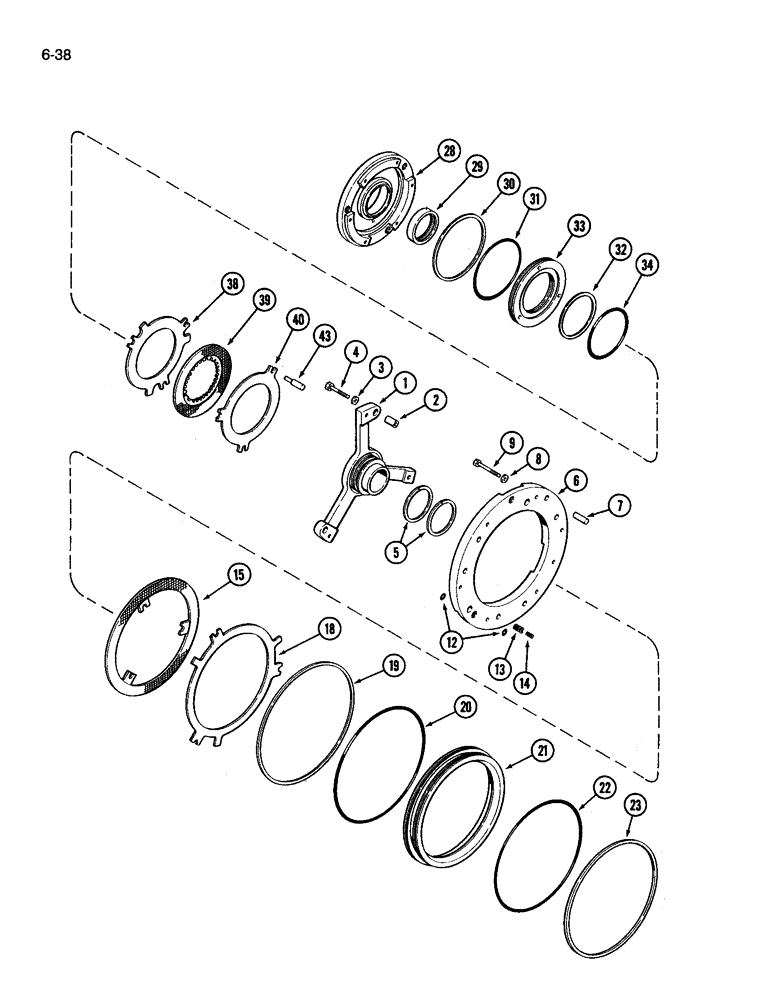

Запчасти Case IH 3394 (6-38) - TRANSMISSION, DUAL RANGE (C5) AND (C6) CLUTCHES (06) - POWER TRAIN

1

A156915

HUB

- oil distributor

1шт.

211-10

BALL

- 11/32 inch, grade 200, chrome alloy steel

3шт.

Ball is sold seperate from A156915.

1шт.

2

A156917

DOWEL

- ring

3шт.

3

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

3шт.

4

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

3шт.

5

A152204

RING

- seal

2шт.

Part of seal kit P/N A49395

1шт.

6

A156918

RING

PLATE - ring, (C6) reaction

1шт.

7

A65555

PIN

- DOWEL

3шт.

8

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

6шт.

9

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

6шт.

12

A50651

SEALING RING

RING - seal

7шт.

Part of seal kit P/N A49395

1шт.

13

A62606

SPRING

- return (C6) clutch

3шт.

14

A62607

SPRING

- return (C6) clutch

3шт.

15

A156955

LARGE PLATE

PLATE - friction, (C6) clutch

1шт.

18

A144577

LARGE PLATE

PLATE - steel, (C6) clutch

1шт.

19

A144580

RING

- sealing, (C6) piston, large OD

1шт.

Part of seal kit P/N A49395

1шт.

20

A150943

O-RING,11.09" ID x 0.107"

- (C6) piston, large OD

1шт.

Part of seal kit P/N A49395

1шт.

21

A144576

PISTON

- (C6) clutch

1шт.

22

A150945

O-RING,10.465" ID x 0.107"

- (C6) piston, small OD

1шт.

Part of seal kit P/N A49395

1шт.

23

A144581

SEAL

RING - sealing, (C6) piston, small OD

1шт.

Part of seal kit P/N A49395

1шт.

28

A153417

CARRIER

- (C5) piston

1шт.

29

A67531

NEEDLE BEARING,Needle, 69.85mm ID x 79.38mm OD x 15.88mm W

BEARING - needle, roller

1шт.

30

A144774

SEAL

RING - sealing, (C5) piston, external

1шт.

Part of seal kit P/N A49395

1шт.

31

A150944

O-RING,6.09" ID x 0.107"

- (C5) piston, external

1шт.

Part of seal kit P/N A49395

1шт.

32

A144775

SEAL

RING - sealing, (C5) piston, internal

1шт.

Part of seal kit P/N A49395

1шт.

33

A179542

PISTON

- (C5) clutch

1шт.

34

A150946

O-RING,4.306" ID x 0.107"

- (C5) piston, internal

1шт.

Part of seal kit P/N A49395

1шт.

38

A144799

LARGE PLATE

PLATE - steel, (C5) clutch

1шт.

39

A153782

LARGE PLATE

PLATE - friction, (C5) clutch

1шт.

40

A144798

LARGE PLATE

PLATE - steel, (C5) clutch

1шт.

43

A144855

PIN

- (C5) reaction

3шт.

A49395

SEAL

KIT - seal, Includes: Ref. 5, 12, 19, 20, 22, 23, 30, 31, 32 and 34

1шт.
