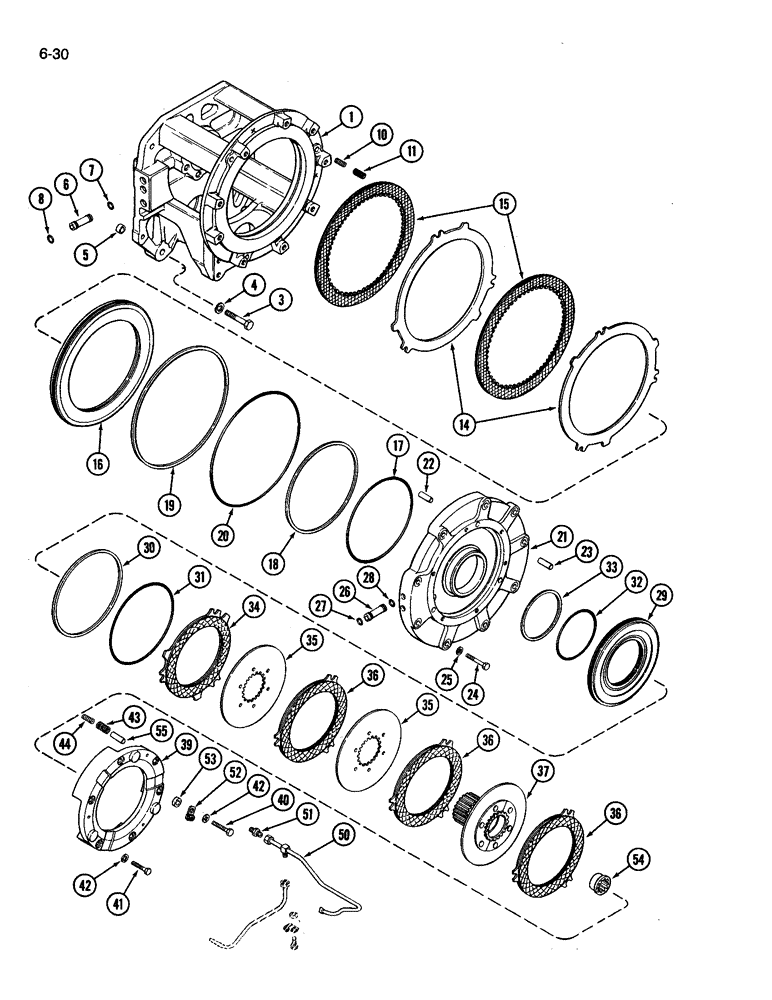

Запчасти Case IH 3394 (6-30) - TRANSMISSION, (C1) AND (C4) CLUTCHES (06) - POWER TRAIN

1

A168287

CARRIER

ASSEMBLY - power shift

1шт.

3

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

3

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

3шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

A188330

SLEEVE

- dowel

2шт.

6

A152371

TUBE

- oil, (C2) and (C3) clutch

3шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

8

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

3шт.

10

A142613

SPRING

- return (C4) clutch

3шт.

11

A62606

SPRING

- return (C4) clutch

3шт.

14

A58056

PLATE

- steel (C4) clutch

2шт.

15

1981280C1

PLATE

- friction (C4) clutch (Replaces A67128)

2шт.

16

A146671

PISTON

- (C4) clutch

1шт.

17

A150752

O-RING,9.206" ID x 0.107" OD

- 9-5/32 ID x 3/32 inch, (C4) piston, internal

1шт.

18

A146681

SEAL

- sealing, 8-31/32 ID x 7/64 inch, (C4) piston, internal

1шт.

19

A146680

RING

- sealing, 12-9/16 OD x 7/64 inch, (C4) piston, external

1шт.

20

A150751

O-RING,12.09" ID x 0.107"

- 12-1/16 OD x 3/32 inch, (C4) piston, external

1шт.

21

A67163

CARRIER

ASSEMBLY - piston (C1) and (C2), Includes: Ref. 22 and 23

1шт.

22

A65555

PIN

- clutch reaction plate, (C4) clutch, 1-1/2 inch

3шт.

23

A75102

PIN,12.45mm OD x 50.8mm L

- clutch reaction plate, (C1) clutch, 2 inch

3шт.

24

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

9шт.

25

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

9шт.

26

A152371

TUBE

- oil, (C1) and (C4) clutch

2шт.

27

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

29

A146670

PISTON

- (C1) clutch

1шт.

30

A146682

RING

SEAL - sealing, 8-9/32 OD x 7/64 inch, (C1) piston, external

1шт.

31

A150753

O-RING,7.84" ID x 0.107"

- 7-7/8 OD x 3/32 inch, (C1) piston, external

1шт.

32

A150754

O-RING,4.718" ID x 0.107"

- 4-11/16 ID x 3/32 inch, (C1) piston, internal

1шт.

33

A146683

RING

- sealing, 4-15/32 ID x 7/64 inch, (C1) piston, internal

1шт.

34

A168484

PLATE

- friction (C1) clutch, with tabs

1шт.

35

A182507

PLATE

- steel (C1) clutch (Replaces A152112)

2шт.

36

A168483

PLATE

- friction (C1) clutch, without tabs

3шт.

37

A182523

GEAR

PLATE ASSEMBLY - sun reaction (C1) clutch (Replaces A168203)

1шт.

39

A156921

PLATE

- (C1) reaction

1шт.

40

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

41

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

5шт.

42

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

6шт.

43

A142612

SPRING

- return (C1) clutch

3шт.

44

A142613

SPRING

- return (C1) clutch

3шт.

50

A150622

TUBE

- lubrication (C1) clutch (12 speed transmission)

1шт.

51

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

1шт.

52

49845

CLAMP

- tube

1шт.

53

A136208

SPACER

- tube clamp

1шт.

54

A76482

BUSHING,20T

- front, input shaft

1шт.

55

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

3шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: Ref. 7, 17, 18, 19, 20, 28, 29, 30, 31, 32 and 33 on Figure 6-30 and Ref. 6, 7, 8, 9, 11 on Figure 6-36)

1шт.
