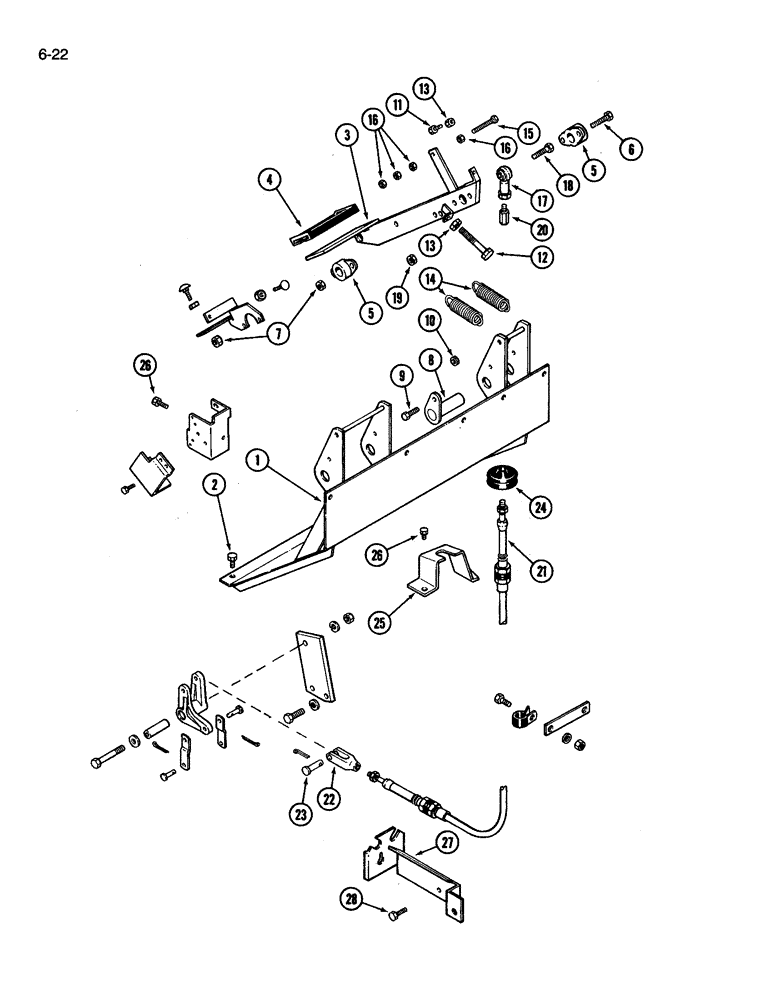

Запчасти Case IH 3394 (6-22) - INCHING PEDAL (06) - POWER TRAIN

1

A143559

BRACKET

COVER - brake and clutch

1шт.

2

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - self-tapping, hex washer head, 3/8 NC x 5/8 inch

8шт.

3

A164689

PEDAL

- inching

1шт.

4

F9197

PAD

COVER - pedal, rubber

1шт.

5

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pivot, foot pedal

2шт.

6

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

7

131-1281

LOCK NUT,Jam, 5/16"-18

NUT - hex, jam, self-locking, 5/16 inch NC

2шт.

8

A60305

SHAFT

- pivot

1шт.

9

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

10

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

11

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Upper stop) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

12

113-116

BOLT,Hex, 5/16" - 18 x 3-1/2", SST

- hex, 5/16 NC x 3-1/2 inch (Lower stop)

1шт.

13

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

14

A177378

SPRING

- return

2шт.

15

113-57

BOLT,Hex, 1/4" - 20 x 2", Gr 5, Full Thd

- hex, full thread, 1/4 NC x 2 inch

1шт.

16

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

17

A32398

BALL JOINT

LINK - eye, female

1шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

19

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

20

A185485

FITTING

ADAPTER - 3/8 to 5/16 inch NF (Replaces A161332)

1шт.

21

A161778

CABLE

- clutch control

1шт.

22

A180427

CLEVIS

- cable, 5/16 inch

1шт.

23

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

24

A141739

BOOT

- clutch cable

1шт.

25

A161336

CAB

BRACKET - cable

1шт.

26

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - self-tapping, hex washer head, 3/8 NC x 5/8 inch

3шт.

27

A177811

BRACKET

- clutch cable mounting

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.
