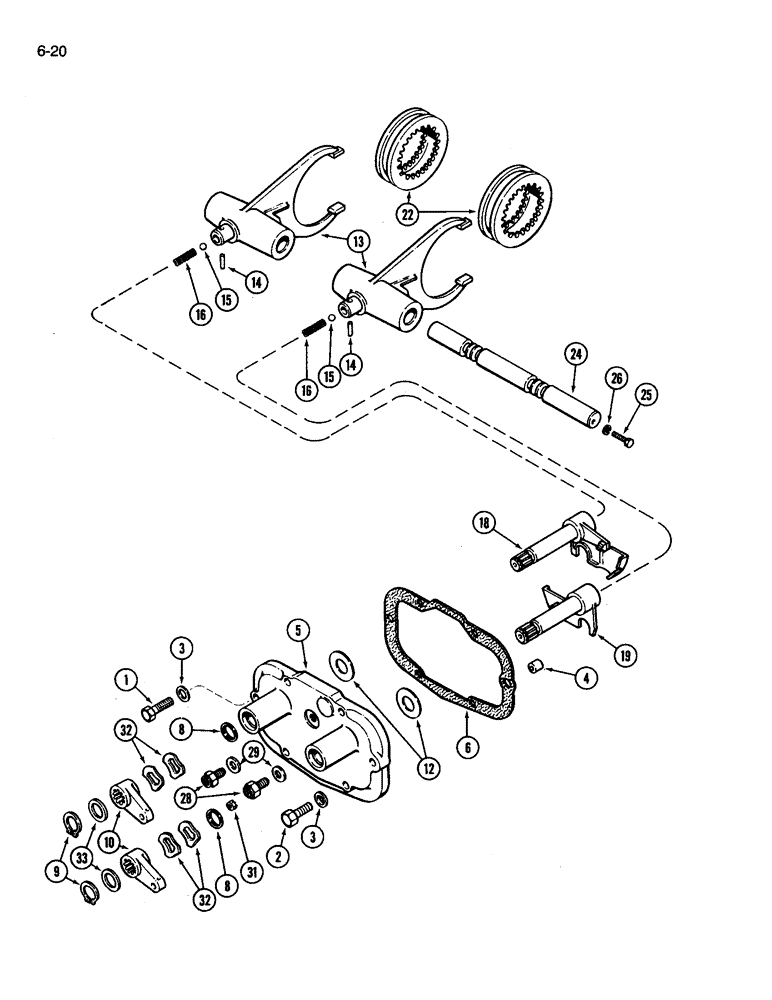

Запчасти Case IH 3394 (6-20) - GEAR SHIFT MECHANISM (06) - POWER TRAIN

1

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

5шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

3

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

6шт.

4

A63167

SLEEVE

- dowel

1шт.

5

A150365

HOUSING

- shifter

1шт.

6

1981249C1

GASKET

- housing (Replaces A64067)

1шт.

8

A76307

OIL SEAL,25.4mm ID x 31.9mm OD x 4.75mm Thk

- shifter shaft

2шт.

9

B18208

SNAP RING,#100, Ext

2шт.

10

A64936

LEVER

- splined, shift control

2шт.

12

A65121

SHIM,.005" Thk

Shifter shaft .005" Thk

1шт.

13

A136728

FORK

- gear shift

2шт.

14

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, 1/4" x 7/8", Slotted

2шт.

15

211-212

BALL

- 7/16 inch, grade 200, chrome alloy steel

2шт.

16

A26530

SPRING

- detent

2шт.

18

A153005

LEVER

- shift, first and second

1шт.

19

A153006

LEVER

- shift, third and fourth

1шт.

22

A157410

COLLAR

- sliding

2шт.

24

A66753

RAIL

- shifter

1шт.

25

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

1шт.

26

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28

A160237

SWITCH

- neutral start

2шт.

29

G49402

SHIM,.010" Thk

Mounting .010" Thk

1шт.

31

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

4шт.

32

A63169

SPRING

WASHER - spring wave

4шт.

33

G46081

BEARING WASHER

WASHER - spacer

2шт.
