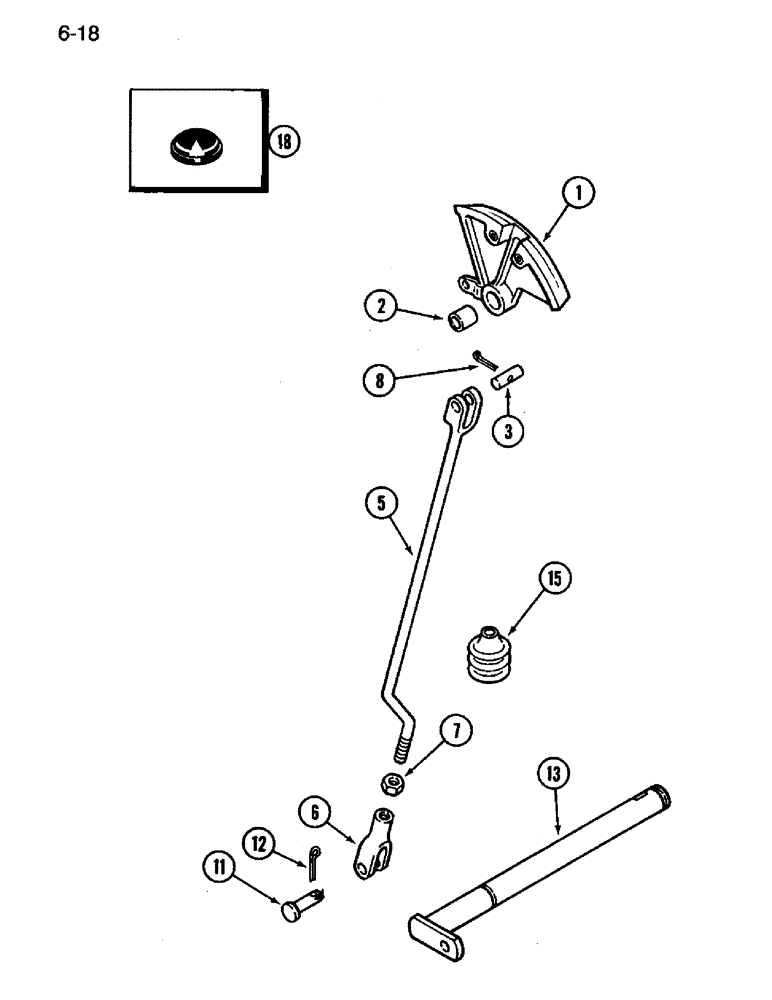

Запчасти Case IH 3394 (6-18) - PARK LOCK CONTROL (06) - POWER TRAIN

1

A161147

QUADRANT

- park lock, Includes: Ref. 2

1шт.

2

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- pivot

1шт.

3

A145484

PIN,9.46mm OD x 28.57mm L

- quadrant

1шт.

5

A135237

ROD

- control, Serial Range: quadrant-lever

1шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF

1шт.

7

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

8

432-620

COTTER PIN,3/32" x 1 1/4"

3/32" x 1 1/4"

1шт.

11

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

12

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

13

A148347

LEVER

- park lock

1шт.

15

A145931

BELLOWS

GROMMET - rod

1шт.

18

353-584

PLUG - button, recessed

1шт.
