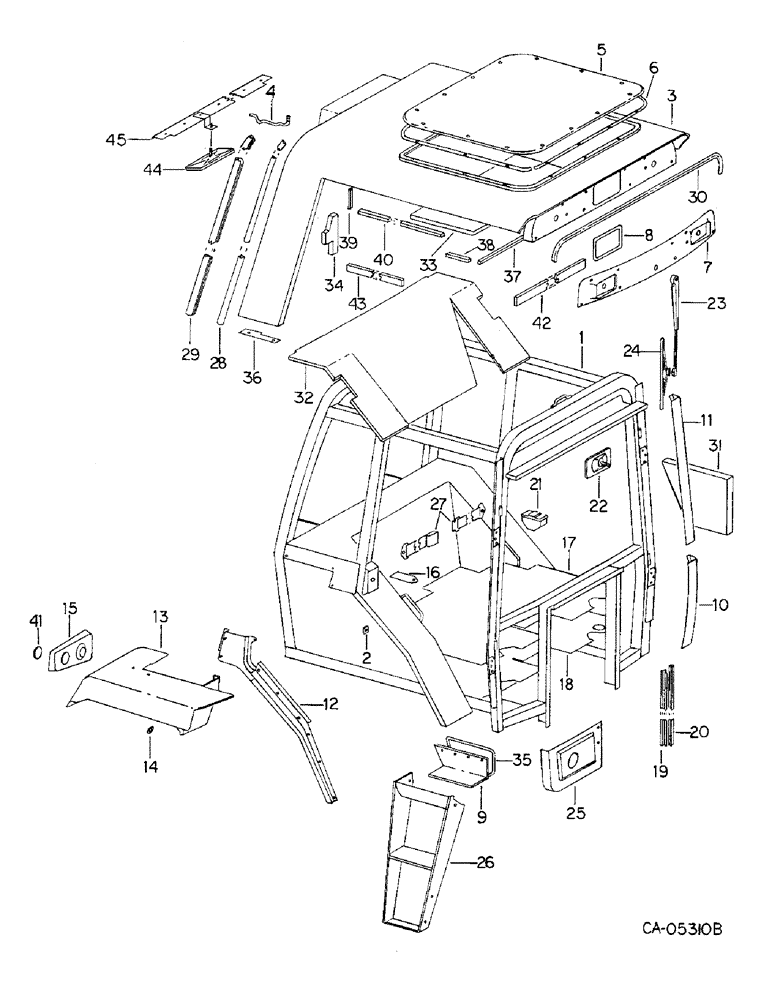

Запчасти Case IH 3388 (13-16) - SUPERSTRUCTURE, TRACTOR CAB AND CONNECTIONS (05) - SUPERSTRUCTURE

1

143164C91

CAB

ASSY, deluxe burgundy, tractor cabs with air conditioning & AM-FM radio w/8 track tape

1шт.

Cabs with serial no. 107806 and below.

1шт.

1

143343C92

CAB

ASSY W/WESTERN INTERIOR

1шт.

Cabs with serial no. 107806 and below.

1шт.

445444

NUT,U, #10-16

10-12 phc u-spr style II

6шт.

142093

HOLE PLUG BUTTON,1"

PLUG, 1.0 inch button

1шт.

117675C1

PLUG

1/2 inch Hole

2шт.

353-417

PLUG,Dome, 2.000" hole, Nylon

2.0 inch button

1шт.

118148C2

SELF-TAP SCREW,Hex, #10 x 3/8"

SCREW, hex-hd mach

6шт.

115109

WASHER,1/4"

1/4"

6шт.

1

1267539C91

CAB

ASSY, w/product graphic

1шт.

Cabs with serial no. 107807 and above.

1шт.

445444

NUT,U, #10-16

10-12 phc u-spr style II

4шт.

1267607C1

PLUG

hole

1шт.

86625129

PLUG,Dome, 1" Hole, Nylon

2шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 pln type 1

2шт.

143088C1

PLUG

9/16 hole

2шт.

117675C1

PLUG

.5 inch Hole

8шт.

118148C2

SELF-TAP SCREW,Hex, #10 x 3/8"

SCREW, hex-hd mach

6шт.

115109

WASHER,1/4"

1/4"

6шт.

353-417

PLUG,Dome, 2.000" hole, Nylon

2.0 inch hole

1шт.

406391C1

PLUG,1"

1.0 plastic hole

1шт.

2

109398C1

PLATE

lock striker tapping

2шт.

3

PANEL ASSY, roof weld and caulk, not serviced separately, Order package 1262416C91

1шт.

445406

SPRING NUT,Tinn, 1/4"-14

14-10 r/p j-spr style 1

14шт.

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW, 1/4 x 1 polyseal tap

12шт.

115109

WASHER,1/4"

1/4"

12шт.

118664

WASHER, .312 x .734 x .051 plain

8шт.

142970C1

PLUG

button 1.0 inch

2шт.

142059

1/4 button

1шт.

4

117727C2

ROD

filter retainer

3шт.

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW, #10 x 1/2 polyseal tap

10шт.

5

143006C3

PANEL

roof access

1шт.

111618C1

SCREW

1/4 x 3/4 polyseal

14шт.

6

109295C2

GASKET, roof access panel

2шт.

7

109470C1

PANEL

roof cap cover

1шт.

8

117732C2

GASKET

wiper opening

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no 10-16 x 1/2 polyseal p/hdcr tap

12шт.

9

109441C1

PANEL

inner step LH

1шт.

9

109442C1

PANEL

inner step RH

1шт.

111240C1

FASTENER

1/4 turn

4шт.

1276118C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

SCREW, SELF TAPPING, , Polyseal Cross Pan Hd, #8 x 3/4"

8шт.

10

109485C1

PANEL

hinge pillar lower LH

1шт.

10

109486C1

PANEL

hinge pillar lower RH

1шт.

11

109489C1

PANEL

hinge pillar upper LH

1шт.

11

109490C1

PANEL ASSY.

PANEL, hinge pillar upper RH

1шт.

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW, #10 x 1/2 polyseal tap

2шт.

Cabs with serial no. 107806 and below.

1шт.

167096

WASHER

SCREW, no. 10 x 1/2 crb p/hdcr tap

6шт.

Cabs with serial no. 107806 and below.

1шт.

1267248C1

SELF-TAP SCREW,Pan Hd, #10 - 16 x 1/2"

no. 10-16 x 1/2 poly seal tap

2шт.

Cabs with serial no. 107807 and above.

1шт.

261-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10-24 x 3/8 poly seal tap

4шт.

Cabs with serial no. 107807 and above.

1шт.

12

111581C1

EXTENSION

ASSY, wheel well LH

1шт.

12

111582C1

EXTENSION

ASSY, wheel well RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

14шт.

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW, #10 x 1/2 polyseal tap

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

14шт.

13

109491C3

FENDER ASSY.

FENDER ASSY, LH

1шт.

13

109492C3

FENDER ASSY.

FENDER ASSY, RH

1шт.

143310C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 24 x 1/2"

SCREW, no. 10 x 1/2 polyseal p/hdcr tap

4шт.

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW, no. 10-16 x 1/2 polyseal c/r s/d tap

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

18шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

172487

SCREW,Hex, 3/8" - 16 x 1"

3/8 x 1 h/hd tap

4шт.

111461C1

TUBE, fender

2шт.

Cabs with serial no. 107806 and below.

1шт.

SEAL, fender edge, furnish 3 in. from bulk roll marked 198578C1

2шт.

Cabs with serial no. 107807 and above.

1шт.

14

117762C1

CLAMP

CLIP, fender tube

4шт.

15

111562C2

PANEL

rear lamp LH

1шт.

15

111563C2

PANEL

rear lamp RH

1шт.

16

111346C1

PLATE

lock striker trim cover

1шт.

1276247C1

SCREW, #10 x 3/8 polyseal tap

1шт.

17

118599C1

MAT

floor, For burgundy cab

1шт.

17

143329C1

MAT

carpeted floor, For western interior cab

1шт.

18

118600C1

SHEET

floor mat, liner

1шт.

19

104754C1

CHANNEL

firewall seal

2шт.

20

104752C1

SEAL

cab to firewall, vertical

2шт.

21

111396C1

ASH TRAY

TRAY, ash

1шт.

22

66518C1

MIRROR

rear view

1шт.

120376

NUT,5/16"-18, G5

1шт.

623083R1

WASHER

5/16 cad lhtw lock

1шт.

23

1255815C1

ARM

ASSY, windshield wiper

1шт.

24

109225C1

WINDSHIELD WIPER

BLADE ASSY, flex windshield wiper

1шт.

25

117746C2

PANEL

front lower LH, For tractors w/o front cab lights also order one 118497C1 panel

1шт.

25

117747C2

PANEL

front lower RH, For tractors w/o front cab lights also order one 118498C1 panel

1шт.

117987C1

SPRING NUT

10-16, u-shaped spring

2шт.

118071C2

SCREW,Phillips Drive, Truss HD, #8 - 18 x 1/2"

. 8-18 x 12 pan-hd cr-rec

4шт.

27953R1

SPACER,1 3/8" Tube x 3 3/4"

3.75 x 1.375 x 1.157

2шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, #10 x 1/2 polyseal tap

1шт.

26

143322C1

LADDER

ASSY, LH, standard, Replaces 118442C2

1шт.

26

143323C1

LADDER

ASSY, RH, standard, Replaces 118443C2

1шт.

26

142888C1

LADDER

ASSY, LH, 3788 tractors w/20.8-38 tires

1шт.

26

142889C1

LADDER

ASSY, RH, 3788 tractors w/20.8-38 tires

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

BOLT, 3/8 x 1-3/8 type 5

4шт.

21741R1

WASHER

.406 x .875 x .105

8шт.

27

537339R1

SAFETY BELT

SSAFETY BELT, For burgundy cab only

1шт.

344096C3

BOLT

BOLT, seat belt anchor

2шт.

24513R1

NUT,7/16"-20, G8

7/16-NF type 8

2шт.

28

109194C1

STRIP

qtr panel chrome front, trim

1шт.

27904R1

SCREW,Cross Pan Hd, #10 x 1/2"

#10-16 x 1/2 crb c/r s/d tap

2шт.

29

1262166C1

STRIP

qtr panel chrome rear, trim, Replaces 109193C1

1шт.

30

109269C1

STRIP

roof eyebrow, trim

1шт.

Cabs with serial no. 107806 and below.

1шт.

30

143294C1

SEALING STRIP

roof eyebrow trim

1шт.

Cabs with serial no. 107807 and above.

1шт.

31

109271C1

NOISE PROTECTION

INSULATION, door foam LH

1шт.

31

109272C1

NOISE PROTECTION

INSULATION, door foam RH

1шт.

32

118594C1

SHEET

rear panel foam, insulation, For burgundy interior cabs

1шт.

Cabs with serial no. 107807 and above.

1шт.

32

143330C1

SHEET

rear panel insulation, For western interior cabs

1шт.

Cabs with serial no. 107806 and below.

1шт.

33

109290C6

NOISE PROTECTION

INSULATION, access cover

1шт.

34

NOT USED THIS APPLICATION

1шт.

35

111239C2

SEAL

inner step LH

1шт.

35

118038C2

SEAL

inner step RH

1шт.

36

111529C1

SEAL

, Serial Range: roof-fender

2шт.

37

SEAL, air intake filter, furnish package, 143481C91

2шт.

38

SEAL, air intake filter, furnish package, 143481C91

2шт.

39

NOT USED IN THIS APPLICATION

1шт.

40

NOT USED IN THIS APPLICATION

1шт.

41

109235C1

REFLECTOR

2шт.

42

NOT USED THIS APPLICATION

1шт.

43

NOT USED THIS APPLICATION

1шт.

44

118208C1

MIRROR

ASSY

1шт.

45

118299C1

SUPPORT

ASSY, mirror mtg, bracket

1шт.

534441R1

FLUID

ADHESIVE, misc trim & seal repair

1шт.

68554C1

PRODUCT GRAPHIC

rops model no.

1шт.

142862

SCREW,Type U Metallic, Rnd Hd, #4 x 1/4"

no. 4 x 1/4 pln r/hd drive

2шт.

111480C3

DECAL

PRODUCT GRAPHIC, cab safety caution

1шт.

70571C1

DECAL

PRODUCT GRAPHIC, rops caution instr.

1шт.

111484C2

DECAL

PRODUCT GRAPHIC, air conditioner instr.

1шт.

111662C2

EMBLEM CASE/IH

EMBLEM ASSY, IH trademark

2шт.

111690C1

FASTENER

push grip

4шт.

111585C2

PRODUCT GRAPHIC

cab upper windshield

1шт.

Cabs with serial no. 107807 and above.

1шт.

1262416C91

TOP

PACKAGE, fully trimmed roof assy, Consists of ref nos 3, 4, 8, 28, 29, 30 & 36 plus

1шт.

111618C1

SCREW

1/4-14 x 3/4 hex-hd washer assy tap

14шт.

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW, #10 x 1/2 polyseal tap

2шт.

167096

WASHER

SCREW, no. 10 x 1/2 crb p/hdcr tap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

172487

SCREW,Hex, 3/8" - 16 x 1"

3/8 x 1 h/hd tap

4шт.

406391C1

PLUG,1"

1.0 plastic hole

1шт.

109586C1

PAD

rear window hinge

1шт.

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW, 1/4 x 3/4 polyseal tap

8шт.

115109

WASHER,1/4"

1/4"

16шт.

109592C1

PAD

quarter window hinge

2шт.

118122C1

SEAL

quarter window hinge

2шт.

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW, 1/4 x 1 polyseal tap

20шт.

118144C1

SEAL

air intake rear long

2шт.

118145C1

SEAL

air intake rear short

2шт.

111662C2

EMBLEM CASE/IH

EMBLEM ASSY, IH trademark

2шт.

111690C1

FASTENER

push grip

4шт.

118664

WASHER, .312 x .734 x .065 phc

12шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.
