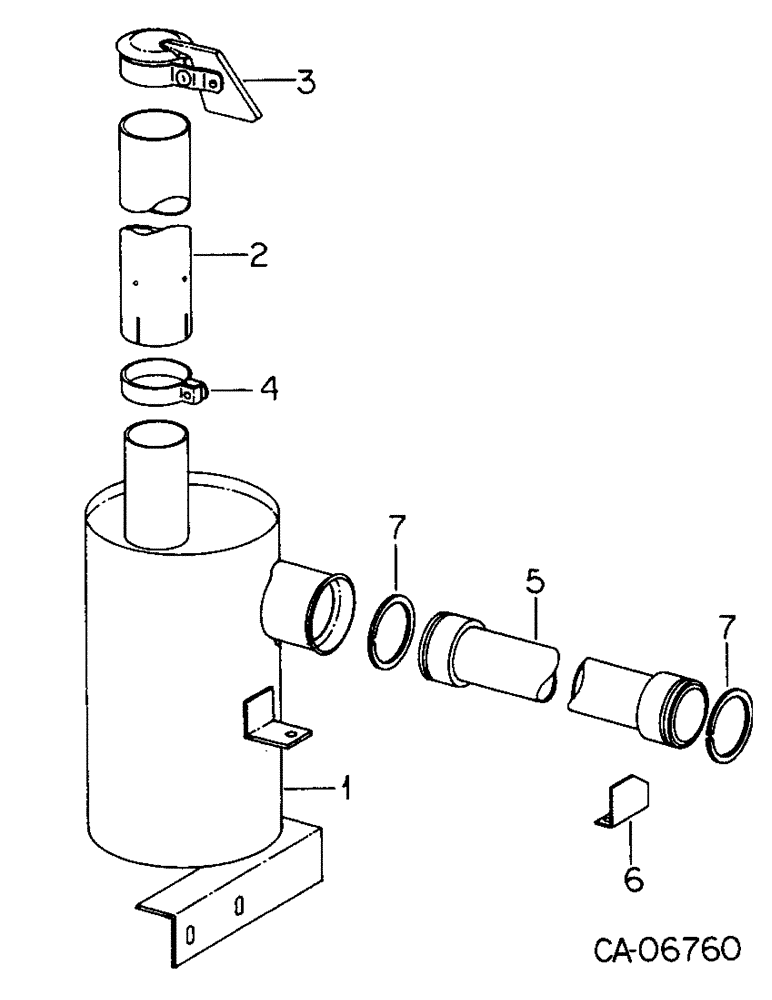

Запчасти Case IH 3388 (12-04) - POWER, EXHAUST SYSTEM Power

1

143660C1

MUFFLER

exhaust

1шт.

179902

BOLT,Hex, 9/16" - 12 x 1", Gr 5

9/16 x 1 pln type 5

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1/2 x 2-1/4 pln type 5

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

2шт.

2

127380C1

PIPE

exhaust

1шт.

3

321863R91

CAP

ASSY, exhaust, Replaces 530750R1

1шт.

4

138747C1

CLAMP

exhaust

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

1шт.

NLS

NO LONGER SERVICED

3/8 type 5

2шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 phc hdn

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

121956C1

TUBE,470.8 mm Length

ASSY, turbo/muffler, pipe

1шт.

6

121959C1

SUPPORT

pipe stop, bar, 3388 and 3588 tractors

1шт.

6

146458C2

SHIELD

heat and pipe support, 3788 tractors

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

25522R1

NUT,3/8"-16, G8

3/8 phc type 8

2шт.

7

702299C1

ASSEMBLY

RING, turbo seal

2шт.
