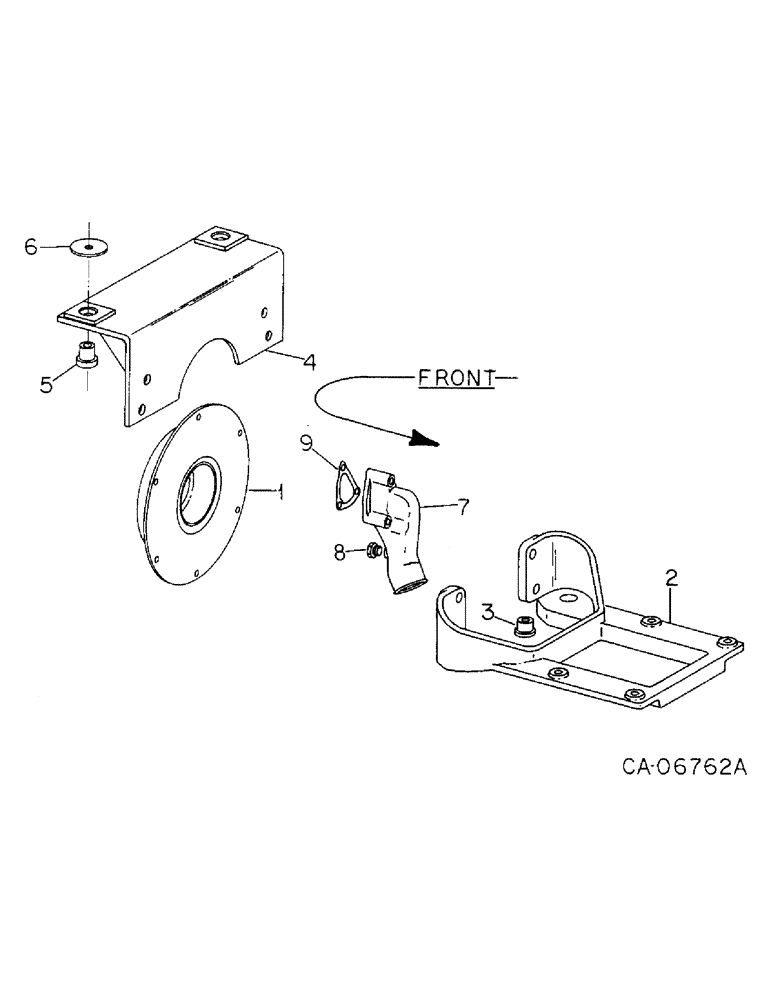

Запчасти Case IH 3388 (12-03) - POWER, ENGINE MOUNTING Power

1

138706C3

COUPLING

engine dampener

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

6шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

6шт.

2

148381C1

SUPPORT

engine front mount

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 x 1-3/4 pln type 5, Replaces 127264C1, 127256C1 and angle 141868C2 by also ordering one 148381C1 and four of each 271560 and 179848

4шт.

3

528506R1

INSULATOR

front

2шт.

550832R1

WASHER

.656 x 2.000 x .105 pln

2шт.

NLS

NO LONGER SERVICED

5/8 x 3-1/2 pln type 5

2шт.

102639

NUT,5/8"-11, G5

2шт.

51811D

WASHER

bevel

2шт.

4

138829C1

BASE

MOUNT ASSY, engine rear

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

BOLT, 3/4 x 2-1/2 pln type 5

4шт.

220081

NUT

3/4 pln type 5

4шт.

5

462300C2

SILENTBLOC

INSULATOR, rear

2шт.

6

138869C1

WASHER

insulator

2шт.

20727R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

Black Hex, 5/8"-11 x 3", G8

2шт.

19724R1

BOLT (SPREADER),5/8"-11, G8

NUT, 5/8 pln type 8

2шт.

7

651055C2

ELBOW

water pump inlet

1шт.

8

20990R1

PLUG

3/8-18 pln h/hd pipe

1шт.

9

673396C1

GASKET

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 pln type 5

3шт.
