Запчасти Case IH 3388 (08-16) - ELECTRICAL, TRACTOR CAB WIRING (06) - ELECTRICAL

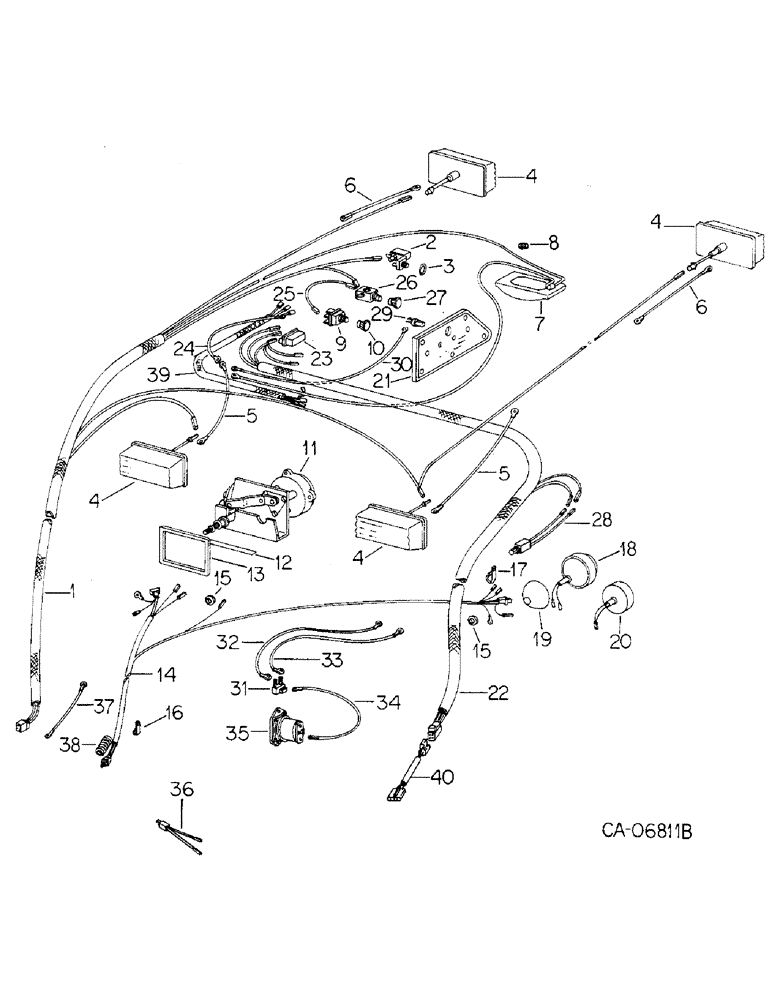

Схема запчастей Case IH 3388 - (08-16) - ELECTRICAL, TRACTOR CAB WIRING (06) - ELECTRICAL
9
20
4
3
25
30
36
4
22
7
28
14
15
24
8
27
4
31
33
13
35
6
15
10
16
2
12
19
38
4
29
32
5
21
5
40
1
11
23
34
18
26
6
37
39

Артикул

Название

Примечание

Количество

1

111227C3

HARNESS

ASSY, main cable

1шт.

2

109222C1

SWITCH

windshield wiper w/circuit breaker

1шт.

109311H

JAM NUT

7/16-28 hex. face

1шт.

3

111282C1

KNOB

wiper control

1шт.

4

130882C91

LAMP

LAMP ASSY, combination flash, turn signal, only serviceable items are:

4шт.

13088C1

LENS, comb. flash/turn signal

4шт.

9417886

LAMP, type C-6 trade #1156

4шт.

1276059C1

SELF-TAP SCREW,Pan HD, #10 - 16 x 3"

SCREW, SELF-TAPPING, , polyseal tap Cross Pan Hd, #10 x 2 1/2"

8шт.

5

111263C3

CABLE

ASSY, turn signal lights frt-grd

2шт.

6

111264C3

CABLE

ASSY, turn signal lights rear ground

2шт.

456107C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, #10-16 x 1/2 phc c/r s/d tap

2шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 ext-int tooth lock

2шт.

7

111397C2

LAMP

LIGHT ASSY, dome, only serviceable items are:

1шт.

Cabs with serial no. 107806 and below.

1шт.

9417866

BULB,C6, #1156, 12.8V

LAMP

1шт.

117940C1

LENS

1шт.

7

1262111C91

LAMP

LIGHT ASSY, dome, only serviceable items are:

1шт.

Cabs with serial no. 107807 and above.

1шт.

117940C1

LENS

dome light

1шт.

NLS

NO LONGER SERVICED

LAMP, type C-6 trade #1141

1шт.

1262109C1

SWITCH

dome light

1шт.

1276099C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3 3/4"

SCREW, #8 x 2-3/4 polyseal

4шт.

8

117736C1

GROMMET

dome light split

1шт.

9

168822C2

SWITCH

pressurizer blower

1шт.

109311H

JAM NUT

7/16-28

1шт.

10

111282C1

KNOB

blower control

1шт.

11

MOTOR, windshield wiper, For components see list of parts under w/wpr motor in this group

1шт.

117829C1

NUT

J, type retainer

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

23048R1

WASHER

.719 x 1.250 x .027 (Or as required)

4шт.

12

118149C1

BAR

wiper mtg shim

1шт.

13

117732C2

GASKET

wiper opening

1шт.

14

131369C2

HARNESS

ASSY, fender lights

1шт.

Cabs with serial no. 107806 and below.

1шт.

14

245000C1

HARNESS

fender

1шт.

Cabs with serial no. 107807 and above.

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

2шт.

169850C1

CLIP

1шт.

15

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

rubber

2шт.

16

299410C1

CLAMP,5/8", Insul, 1/4" Bolt

CLIP, harness

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1/4 x 1/2 h/hd tap

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

17

370383R1

CLIP

rear lamp harness

2шт.

18

388945R91

HEADLIGHT

LIGHT ASSY, only serviceable items are

2шт.

373662R91

LAMP

ASSY, seal beam, optional w/131508C1

1шт.

131508C1

LAMP BASE

LAMP ASSY, seal beam, tungsten, halogen, optional w/373662R91

1шт.

676078R1

RETAINER

rubber

1шт.

19

388947R1

RETAINER

lamp

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

2шт.

20

131183C91

STOP LIGHT

LIGHT ASSY, tail

2шт.

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 p/hdcr tap

4шт.

21

111400C1

PANEL

control trim, cab w/air conditioner and heater

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 phc o/hdcr tap

5шт.

22

111325C2

HARNESS

air conditioner

1шт.

Cabs with serial no. 107806 and below.

1шт.

22

1262093C1

HARNESS

air conditioner

1шт.

Cabs with serial no. 107807 and above.

1шт.

169850C1

CLIP

harness

1шт.

23

437882C1

RELAY

A/C lockout

1шт.

24

111263C3

CABLE

ASSY, ground lock out relay, tractor cab w/air conditioner

1шт.

25

111229C1

CABLE

ASSY, blower thermostat switch, tractor cab w/air conditioner

1шт.

26

109268C2

SWITCH

thermostat, tractor cab w/air conditioner

1шт.

109311H

JAM NUT

7/16-28 hex face

2шт.

27

111282C1

KNOB

cooling control, tractor cab w/air conditioner

1шт.

28

111267C3

SWITCH

low pressure, tractor cab w/air conditioner

1шт.

29

109369C91

LIGHT ASSY.

LIGHT ASSY, A/C indicator, tractor cab w/air conditioner, only serviceable items are

1шт.

200557H1

BULB,C2V, #1815, 14V

LAMP

1шт.

71652C1

LENS

1шт.

30

111263C3

CABLE

ASSY, ground indicator light, tractor cab w/air conditioner

1шт.

31

403069R1

CIRCUIT-BREAKER,30A

BREAKER, circuit, 30 amp

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

2шт.

32

111323C1

CABLE

ASSY, chassis relay to key switch

1шт.

33

117620C1

CABLE

ASSY, cab power

1шт.

34

111322C1

CABLE

ASSY, chassis cab power

1шт.

35

107655C1

SOLENOID SWITCH

MAGNETIC SWITCH, cab-imp. elec. load

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

36

111266C1

SWITCH, A/C HIGH PRE

SWITCH, high pressure, tractor cab w/air conditioner

1шт.

37

537055R1

CABLE

ASSY, tractor to cab ground

1шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 ext-int tooth lock

1шт.

38

118156C1

CONDUIT

convoluted insulation, fender lights harness

1шт.

39

142988C1

HARNESS

ASSY, blower, Used w/blower motor, 142990C1

1шт.

Cabs with serial no. 107806 and below.

1шт.

39

1255875C1

HARNESS

ASSY, blower motor

1шт.

Cabs with serial no. 107807 and above.

1шт.

25471R1

FUSE,20 Amp, Type 8AG

8AG 20 amperes

1шт.

40

245001C1

HARNESS

A/C adapter

1шт.

Cabs with serial no. 107807 and above.

1шт.

1255747C1

CLAMP

CLIP, harness

1шт.

111619C1

STRAP

adjustable

10шт.

118171C1

PACKAGE

KIT, fastener 2.0 tgl type

1шт.

CONDUIT, convoluted wire, furnish 26 in. from bulk roll marked 464835C1

2шт.
