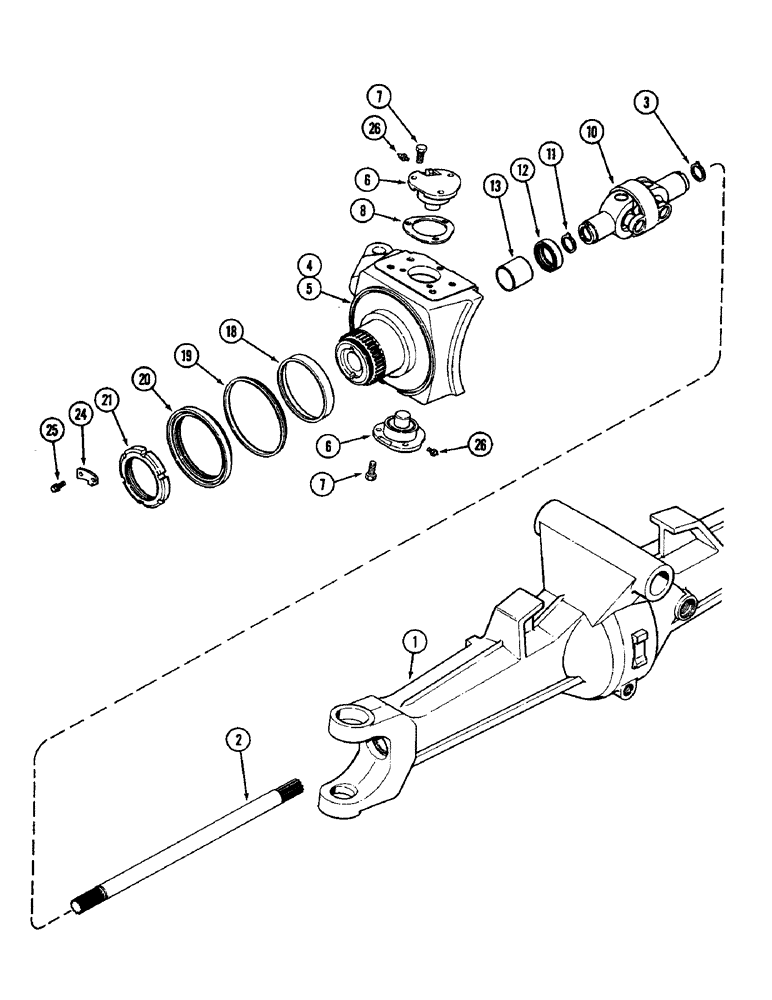

Запчасти Case IH 3294 (5-156) - FRONT AXLE STEERING KNUCKLE AND SHAFT, ZF AXLE (05) - STEERING

A169532

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 26 in this figure and parts in Figures 5-148 thru 5-154 and 5-158

1шт.

1

REF

INSTRUCTION

HOUSING - axle (See Figure 5-148)

1шт.

2

A52098

SHAFT

- axle

2шт.

3

A52126

RING

- retaining

2шт.

4

A52108

KNUCKLE JOINT

KNUCKLE - steering, right (Left shown)

1шт.

5

A52107

KNUCKLE JOINT

KNUCKLE - steering, left

1шт.

6

A52364

PIN

- king, axle (Replaces: A52121)

4шт.

7

A52122

BOLT,Hex, M14 x 35mm

BOLT - hex, M14 x 35 MM

12шт.

8

A52115

SHIM,0.6mm Thk

Pivot 0.6mm Thk

1шт.

8

A52116

SHIM,1.0mm Thk

Pivot 1.0mm Thk

1шт.

8

A52117

SHIM,1.4mm Thk

Pivot 1.4mm Thk

1шт.

8

A52118

SHIM,1.6mm Thk

Pivot 1.6mm Thk

1шт.

8

A52119

SHIM,1.8mm Thk

Pivot 1.8mm Thk

1шт.

8

A52120

SHIM,2.0mm Thk

Pivot 2.0mm Thk

1шт.

10

A52389

COUPLING

JOINT ASSEMBLY - articulate (Replaces A25125)

2шт.

Grease fittings for Ref. 10: A52236 Straight or 713608R91 90 degree

1шт.

11

A52126

RING

- retaining

2шт.

12

A52102

SEAL

- shaft, axle

2шт.

13

A52123

BUSHING

SLEEVE - bearing, axle

2шт.

18

A52128

SLEEVE CYLINDER

SLEEVE - axle

2шт.

19

A52130

RING

- scraper

2шт.

20

A52129

SEAL

- shaft

2шт.

21

A52365

NUT

- slotted hex (Replaces: A52133)

2шт.

24

A52134

PLATE ASSY.

PLATE - lock

2шт.

25

A52135

FLANGE BOLT

BOLT - flanged hex, M10 x 20 MM

4шт.

26

A52371

FITTING

- grease, M6 x 1 MM

4шт.
