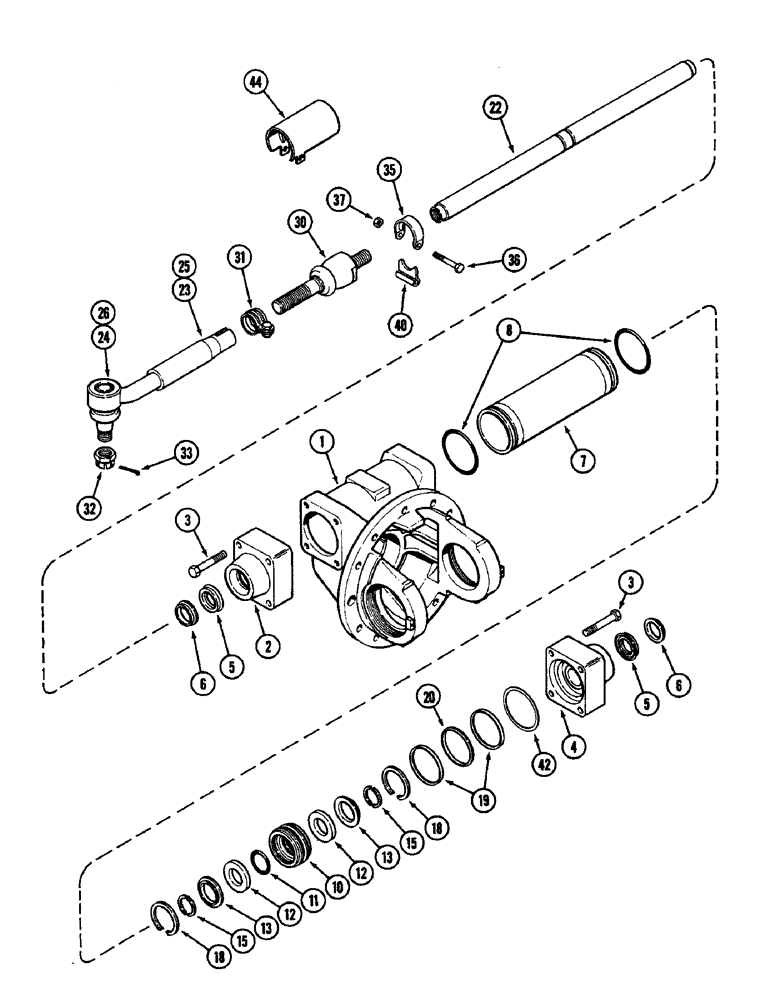

Запчасти Case IH 3294 (5-150) - FRONT AXLE TIE RODS AND STEERING CYLINDER, ZF AXLE (05) - STEERING
№
Артикул
Название
Примечание
Количество
A169532
AXLE
ASSEMBLY - front, Includes: Ref. 1 - 44 in this figure and parts in Figures 5-148 and 5-152 thru 5-158
1шт.
1
A52052
CARRIER
- differential (See Figure 5-152)
1шт.
2
A52153
GUIDE
- rod, cylinder right
1шт.
3
A52154
BOLT
BOLT - guide, M14 x 75 MM
8шт.
4
A52184
GUIDE
- rod, cylinder left
1шт.
5
A52156
RING
- grooved, cylinder
2шт.
6
A52155
RING
- scraper, cylinder
2шт.
7
A52151
CYLINDER BLOCK
CYLINDER - piston
1шт.
8
A52152
O-RING,86 mm ID x 3 mm
- cylinder, M86 ID
2шт.
10
A52158
PISTON ASSY.
PISTON - cylinder
1шт.
11
A52159
O-RING,39.2 mm ID x 5.7 mm
- piston
1шт.
12
A52160
RING
DISK - cylinder
2шт.
13
A52161
CLIP
- ring
2шт.
15
A52162
RING
- split (2 halves)
2шт.
18
A52163
SNAP RING
RING - retaining
2шт.
19
A52165
RING
- scraper
2шт.
20
A52164
RING
- sealing
2шт.
22
A52157
ROD
- cylinder
2шт.
23
A52106
ROD
ASSEMBLY - tie, right (Includes: Ref. 24, 30, 31, 32, and 33)
1шт.
24
A52185
JOINT TURNING
JOINT ASSEMBLY, ball
1шт.
25
A52105
ROD
ASSEMBLY - tie, left (Right shown), Includes: Ref. 26 - 33
1шт.
26
A52058
JOINT TURNING
JOINT ASSEMBLY - ball
1шт.
30
A52166
JOINT TURNING
JOINT ASSEMBLY - axial tie rod
1шт.
31
A52114
CLAMP
ASSEMBLY - tie rod
1шт.
32
A52079
NUT
- castle, M27
1шт.
33
632-206
COTTER PIN,M5 x 45
PIN - cotter, MM M5 x 45
1шт.
35
A52189
PLATE ASSY.
PLATE - stop
2шт.
36
A52187
BODY
BOLT - plate, hex, M8 x 60 MM
2шт.
37
A52188
NUT
- hex, M8
2шт.
40
A52186
PLATE ASSY.
PLATE - spacing
2шт.
42
A52167
SHIM,1.0mm Thk
Cylinder 1.0mm Thk
1шт.
42
A52168
SHIM,1.1mm Thk
Cylinder 1.1mm Thk
1шт.
42
A52169
SHIM,1.2mm Thk
Cylinder 1.2mm Thk
1шт.
42
A52170
SHIM,1.3mm Thk
Cylinder 1.3mm Thk
1шт.
42
A52171
SHIM,1.4mm Thk
Cylinder 1.4mm Thk
1шт.
42
A52172
SHIM,1.5mm Thk
Cylinder 1.5mm Thk
1шт.
42
A52173
SHIM,1.6mm Thk
Cylinder 1.6mm Thk
1шт.
42
A52174
SHIM,1.7mm Thk
Cylinder 1.7mm Thk
1шт.
42
A52175
SHIM,1.8mm Thk
Cylinder 1.8mm Thk
1шт.
42
A52176
SHIM,1.05mm Thk
Cylinder 1.05mm Thk
1шт.
42
A52177
SHIM,1.15mm Thk
Cylinder 1.15mm Thk
1шт.
42
A52178
SHIM,1.25mm Thk
Cylinder 1.25mm Thk
1шт.
42
A52179
SHIM,1.35mm Thk
Cylinder 1.35mm Thk
1шт.
42
A52180
SHIM,1.45mm Thk
Cylinder 1.45mm Thk
1шт.
42
A52181
SHIM,1.55mm Thk
Cylinder 1.55mm Thk
1шт.
42
A52182
SHIM,1.65mm Thk
Cylinder 1.65mm Thk
1шт.
42
A52183
SHIM,1.75mm Thk
Cylinder 1.75mm Thk
1шт.
44
A180195
STOP
- steering, 18 to 30 degrees
1шт.
Выбрано товаров: 48
